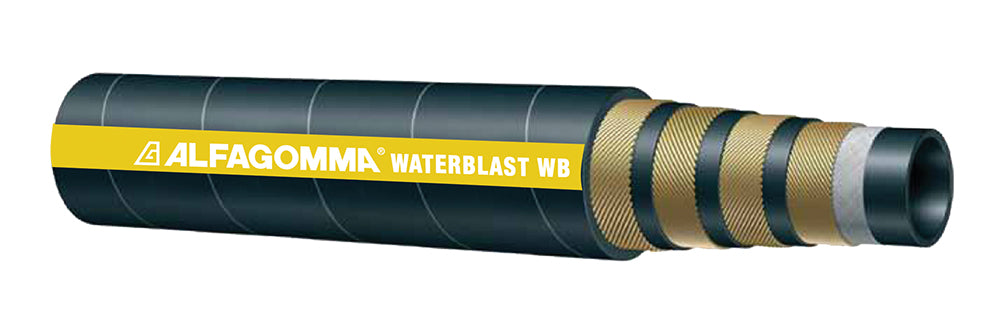

WB10-16 Alfagomma by Kuriyama | WB10 Series | Waterblast Hose | 4-Wire Spiral | 1" ID | 1.51" OD | 10,000 PSI | 50ft Length
Kuriyama of America Inc.
Alfagomma | WB10 Series | Waterblast Hose | 4-Wire Spiral
For high pressure water jetting.
Package Quantity: 50 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $950.26 |
| 8–14 | $909.82 |
| 15+ | $808.73 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
10000
Tubing Construction:
Cover Construction:
| Application: | High pressure water jetting. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Oil and water resistant synthetic rubber. |
| Reinforcement: | Four high tensile steel spirals. | Cover: | Oil, water and ozone resistant synthetic rubber. |
| Service Temperature Range: | Constant operation: +14°F (-10°C) to +158°F (+70°C) | Ambient Temperature: | - |
| Branding: | Dunlop Hiflex | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| WB10-06 | 3/8" | 9.5mm | 0.79" | 20.1mm | 10000 PSI | 6.0" | 152.4mm | 0.37 lbs/ft |
| WB10-08 | 1/2" | 12.7mm | 0.97" | 24.6mm | 10000 PSI | 8.0" | 203.2mm | 0.54 lbs/ft |
| WB10-12 | 3/4" | 19.1mm | 1.24" | 31.4mm | 10000 PSI | 8.2" | 208.3mm | 0.99 lbs/ft |
| WB10-16 | 1" | 25.4mm | 1.51" | 38.2mm | 10000 PSI | 11.0" | 279.4mm | 1.37 lbs/ft |
* Minimum burst pressure: 2.5-to-1 safety factor.
