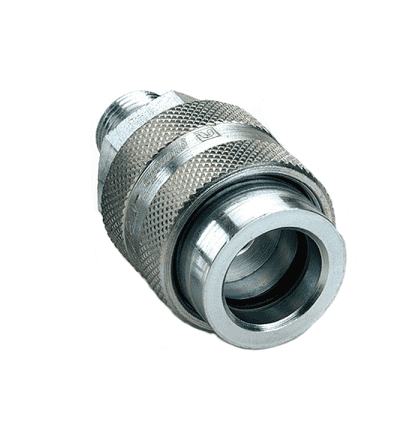

WA5651700 Hansen® by Danfoss | Quick Disconnect Coupling | W56000 Series | 1/4" Male NPT x 1/4" High Pressure | Socket | NBR Seal | Steel

WA5651700 Hansen® by Danfoss | Quick Disconnect Coupling | W56000 Series | 1/4" Male NPT x 1/4" High Pressure | Socket | NBR Seal | Steel

Sale price$63.50

Hansen® by Danfoss
W56000 Series | High Pressure Application

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen W56000 Series is a screw to connect coupling designed to operate at pressures exceeding 10,000 psi or 700 bar.

Rugged design makes these couplings suitable for hydraulic jacks and lift loading.
Buy More, Save More!
Quantity Price Each
10–39 $59.69
40–79 $53.98
80+ $47.63
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • W56000 Series
Shape:

Straight
Product Features:
  • Screw to connect double shut off with poppet valve.
  • Interchanges with other couplings with the same profile.
Applications & Markets:
  • Hydraulic Jacks, Lifts
  • Emergency Rescue Equipment
Materials:
  • Standard body material: Zinc trivalent plated steel.
  • Standard seal materials: Nitrile (NBR).
Specifications:
  • Designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU.
Coupling Size DN/ND Max. Operating Pressure Min. Burst Pressure Rated Flow Air Inclusion
1/4" 5.7 700 bar 10,000 psi 2,800 bar 40,000 psi 11 lmp 2.9 gpm 1.1 ml max
3/8" 7.6 700 bar 10,000 psi 2,800 bar 40,000 psi 16 lmp 4.2 gpm 1.7 ml max
Socket/Female (Figure 1)
Plug/Male (Figure 2)
W56000 Series | High Pressure Application
Part Number Coupling
Type		 DN/ND Body
Size		 Thread Figure Dimensions Dust Plug/Cap
Part Number
NBR A B Hex C D Hex
WA5651700 Socket/Female 5.7 1/4" 1/4 Male NPT 1 2.44"
(62mm)		 1.12"
(28.5mm)		 0.87"
(22mm)		 - - - WA5611700
WA5651400 Plug/Male 5.7 1/4" 1/4 Female NPT 2 - - - 1.26"
(32mm)		 1.10"
(28mm)		 0.75"
(19mm)		 WA5611400
WA5652700 Socket/Female 7.6 3/8" 3/8 Male NPT 1 2.19"
(55.6mm)		 1.38"
(35mm)		 0.87"
(22mm)		 - - - WA5612700
WA5652400 Plug/Male 7.6 3/8" 3/8 Female NPT 2 - - - 1.65"
(42mm)		 1.26"
(32mm)		 1.06"
(27mm)		 WA5612400

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
