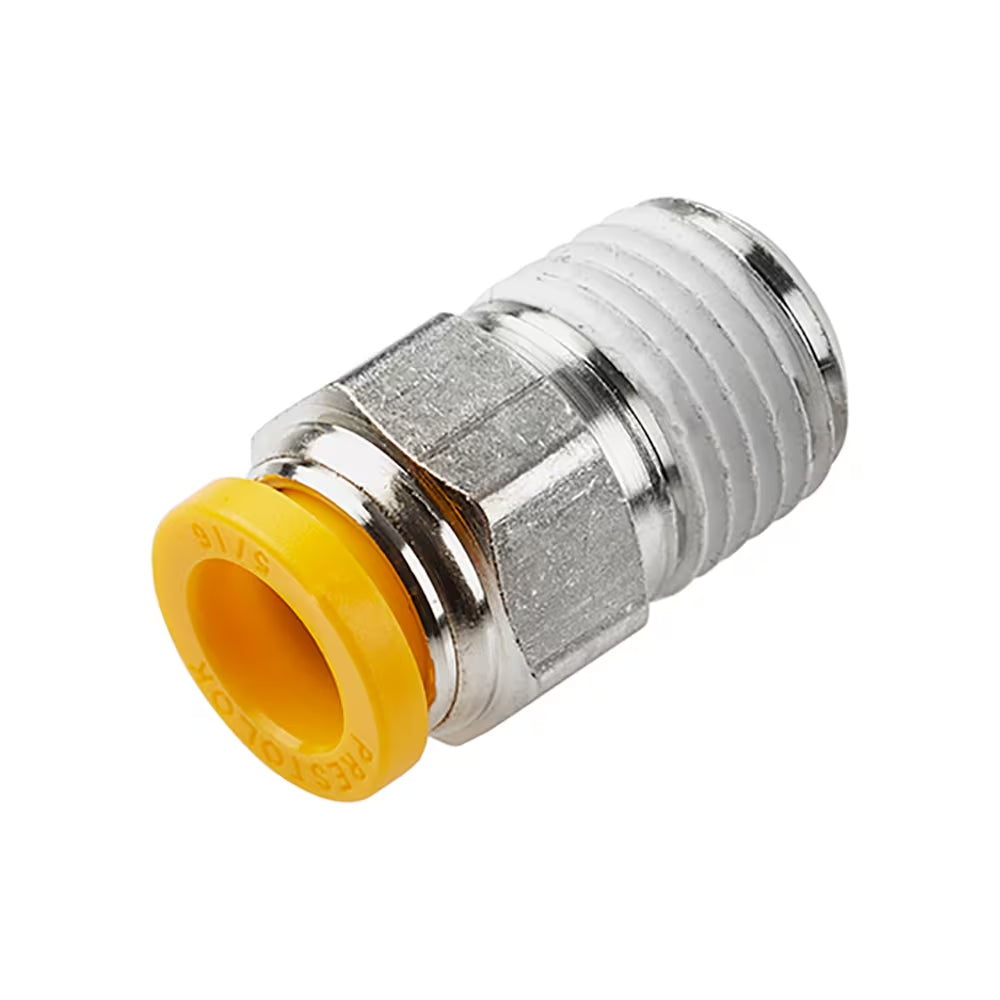

W68PLP-6M-6R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 6mm Connector x 3/8" Male BSPT Thread | 11/16" Hex | 26.46mm Length | 4.775mm Flow Dia. | Straight | Nickel-Plated Brass
by Parker Hannifin
Push-to-Connect Fittings:W68PLP Male Connector – BSPT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.38 |
| 40–79 | $7.58 |
| 80+ | $6.69 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPT | Hex (C) | Length (L) | Flow Diameter (D) |
| W68PLP-4M-2R | 4 mm | 1/8" | 7/16" | 20.41 mm | 3.175 mm |
| W68PLP-4M-4R | 4 mm | 1/4" | 9/16" | 27.1 8mm | 3.175 mm |
| W68PLP-6M-2R | 6 mm | 1/8" | 1/2" | 22.00 mm | 4.775 mm |
| W68PLP-6M-4R | 6 mm | 1/4" | 9/16" | 26.74 mm | 4.775 mm |
| W68PLP-6M-6R | 6 mm | 3/8" | 11/16" | 26.46 mm | 4.775 mm |
| W68PLP-8M-2R | 8 mm | 1/8" | 9/16" | 29.80 mm | 6.350 mm |
| W68PLP-8M-4R | 8 mm | 1/4" | 9/16" | 26.24 mm | 6.350 mm |
| W68PLP-8M-6R | 8 mm | 3/8" | 11/16" | 27.51 mm | 6.350 mm |
| W68PLP-10M-4R | 10 mm | 1/4" | 5/8" | 29.72 mm | 7.925 mm |
| W68PLP-10M-6R | 10 mm | 3/8" | 11/16" | 27.18 mm | 7.925 mm |
| W68PLP-10M-8R | 10 mm | 1/2" | 7/8" | 34.24 mm | 7.925 mm |
| W68PLP-12M-4R | 12 mm | 1/4" | 13/16" | 36.90 mm | 8.738 mm |
| W68PLP-12M-6R | 12 mm | 3/8" | 13/16" | 30.85 mm | 9.525 mm |
| W68PLP-12M-8R | 12 mm | 1/2" | 7/8" | 33.85 mm | 9.525 mm |
