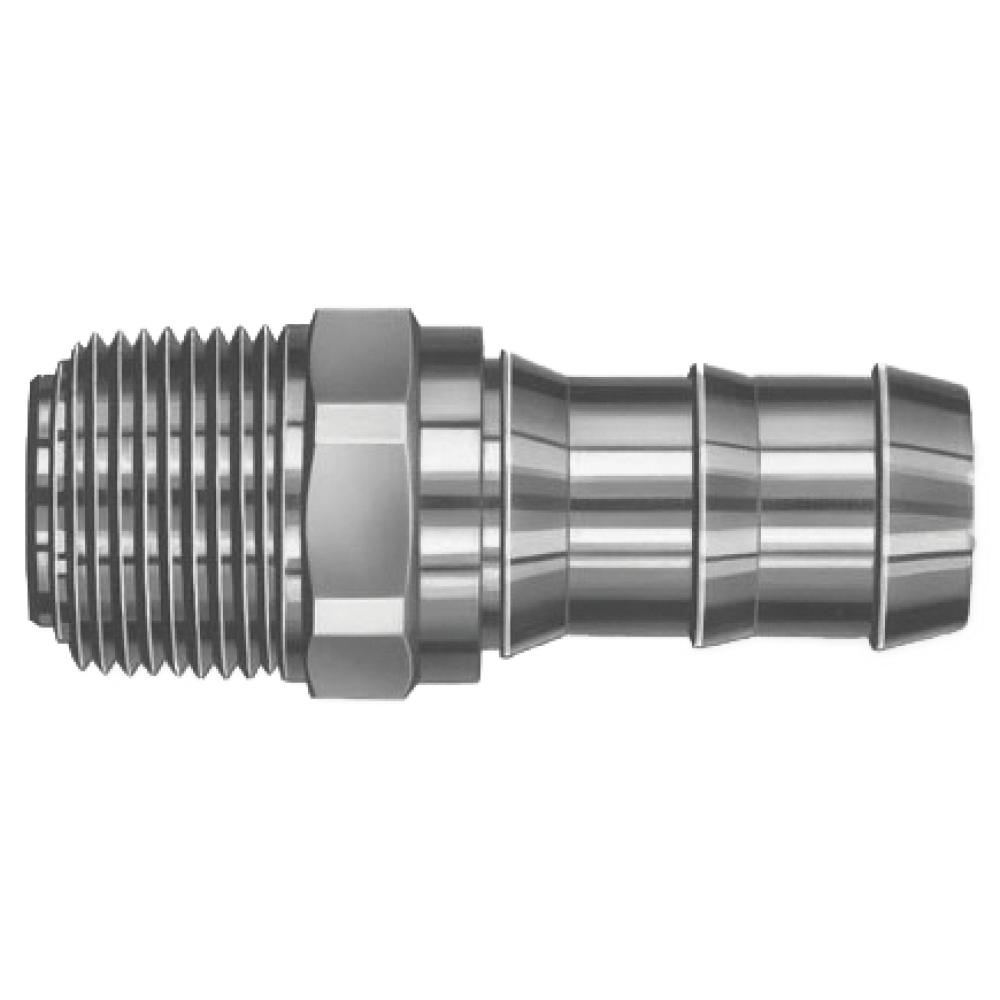

W480016 (FO200) by PT-Coupling | Swivel Hose Fitting | 2" Male NPT x 2" Hose Shank | Anodized Aluminum
PT Coupling
Swivel Hose Fitting | Male NPT x Hose Shank | Anodized Aluminum
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $173.81 |
| 20–59 | $157.17 |
| 60+ | $138.68 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Anodized Aluminum Item # |
Chrome Plated Brass Item # |
Male NPT Thread Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| FO3434 | - | W961530 | 3/4" | 3/4" | 150 PSI |
| FO1000 | W960600 | - | 1" | 1" | 150 PSI |
| FO125 | W480010 | - | 1-1/4" | 1-1/4" | 150 PSI |
| FO138 | W480011 | - | 1-1/2" | 1-3/8" | 150 PSI |
| FO150 | W480012 | - | 1-1/2" | 1-1/2" | 150 PSI |
| FO200 | W480016 | - | 2" | 2" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
