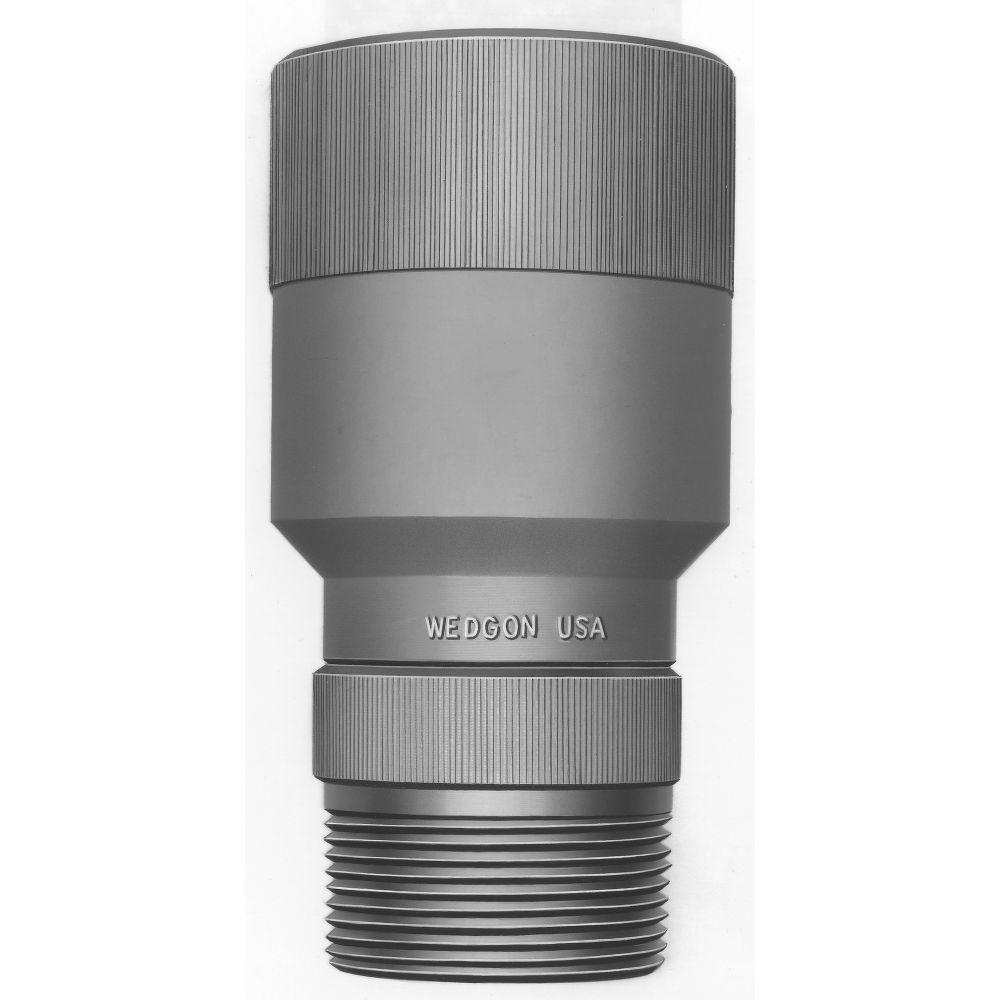

W470024 (FOA300MF) by PT-Coupling | Swivel Adapter | 3" Male NPT x 3" Female NPT | Anodized Aluminum | Buna Seal
PT Coupling
Swivel Adapter | Male NPT x Female NPT | Anodized Aluminum | Buna Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $252.96 |
| 15–29 | $228.74 |
| 30+ | $201.83 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Aluminum Buna Item # |
Male NPT Thread Size |
Female NPT Thread Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| FOA125MF | W470010 | 1-1/4" | 1-1/4" | 150 PSI |
| FOA150MF | W470012 | 1-1/2" | 1-1/2" | 150 PSI |
| FOA200MF | W470016 | 2" | 2" | 150 PSI |
| FOA250MF | W470020 | 2-1/2" | 2-1/2" | 150 PSI |
| FOA300MF | W470024 | 3" | 3" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
