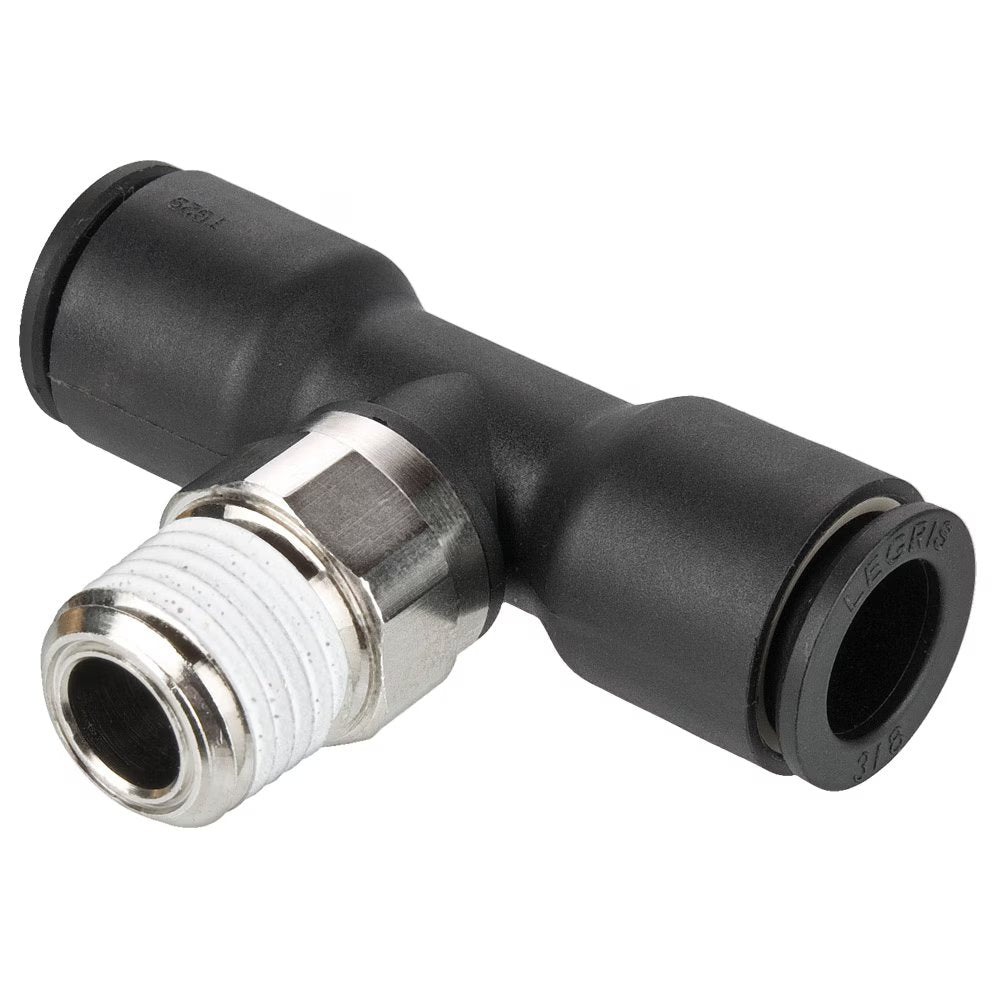

W372PLP-12M-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 12mm Tube Size x 3/8" Male NPT Thread | 18mm Hex | 1.22" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

W372PLP-12M-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 12mm Tube Size x 3/8" Male NPT Thread | 18mm Hex | 1.22" Length (L/2) | Tee | Glass-Reinforced Nylon | Pack of 10

Sale price$250.50

by Parker Hannifin
Push-to-Connect Fittings:W372PLP Male Branch Tee - NPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $235.47
15–29 $212.93
30+ $187.88
Discounts applied in cart/checkout.

Product Data:

Series:
  • W372PLP Series
Shape:

Tee

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • 3/8in Male NPT
  • Some Ends Match
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size NPT Hex (C) H L/2
W372PLP-4M-2 4 mm 1/8" 11 mm .61" .55"
W372PLP-4M-4 4 mm 1/4" 14 mm .63" .55"
W372PLP-6M-2 6 mm 1/8" 11 mm .69" .63"
W372PLP-6M-4 6 mm 1/4" 14 mm .71" .63"
W372PLP-8M-2 8 mm 1/8" 11 mm .87" .91"
W372PLP-8M-4 8 mm 1/4" 14 mm .83" .91"
W372PLP-8M-6 8 mm 3/8" 18 mm .85" .91"
W372PLP-10M-4 10 mm 1/4" 15 mm .98" 1.04"
W372PLP-10M-6 10 mm 3/8" 18 mm .95" 1.04"
W372PLP-10M-8 10 mm 1/2" 22 mm .98" 1.04"
W372PLP-12M-6 12 mm 3/8" 18 mm 1.06" 1.22"
W372PLP-12M-8 12 mm 1/2" 22 mm .98" 1.22"
