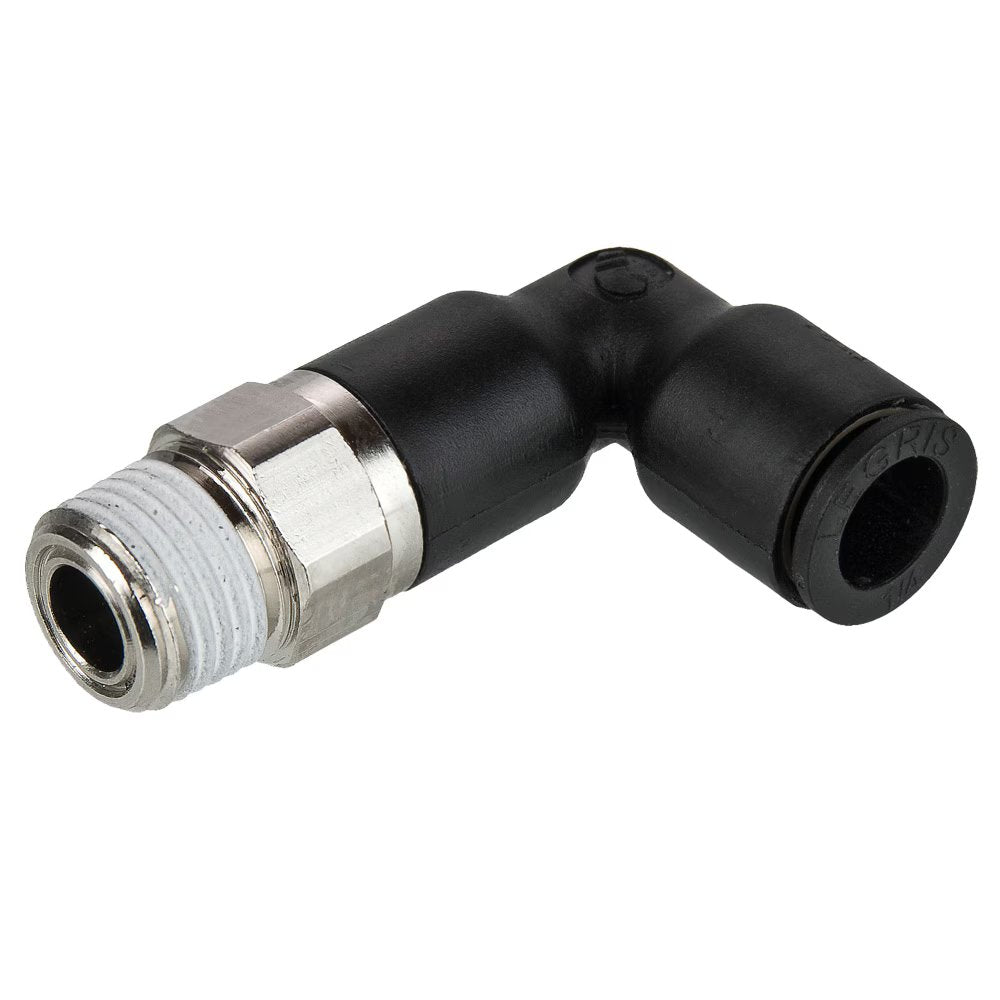

W369PLPX-4M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 5/32" Extended x 1/4" Male NPT Thread | 14mm Hex | .75" Length | 90° Long Elbow | Glass-Reinforced Nylon | Pack of 500
by Parker Hannifin
Push-to-Connect Fittings:W369PLPX Extended Male Elbow - NPT
Package Quantity: 500 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $5,937.89 |
| 6+ | $5,685.21 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT / UNF | Hex (C) | H | L |
| 369PLPX-2-0 | 1/8" | 10-32" | 8 mm | .91" | .75" |
| W369PLPX-2-2 | 1/8" | 1/8" | 11 mm | .91" | .75" |
| W369PLPX-2-4 | 1/8" | 1/4" | 14 mm | .93" | .75" |
| 369PLPX-4M-0 | 5/32" | 10-32" | 8 mm | .91" | .75" |
| W369PLPX-4M-2 | 5/32" | 1/8" | 11 mm | .91" | .75" |
| W369PLPX-4M-4 | 5/32" | 1/4" | 14 mm | .93" | .75" |
| 369PLPX-4-0 | 1/4" | 10-32" | 11 mm | 1.10" | .93" |
| 369PLPX-4-M7 | 1/4" | M7 | 9 mm | 1.17" | .93" |
| W369PLPX-4-2 | 1/4" | 1/8" | 11 mm | 1.12" | .93" |
| W369PLPX-4-4 | 1/4" | 1/4" | 14 mm | 1.08" | .93" |
| W369PLPX-4-6 | 1/4" | 3/8" | 17 mm | 1.12" | .93" |
| W369PLPX-8M-2 | 5/16" | 1/8" | 13 mm | 1.32" | 1.16" |
| W369PLPX-8M-4 | 5/16" | 1/4" | 14 mm | 1.28" | 1.16" |
| W369PLPX-6-2 | 3/8" | 1/8" | 17 mm | 1.40" | 1.34" |
| W369PLPX-6-4 | 3/8" | 1/4" | 17 mm | 1.41" | 1.33" |
| W369PLPX-6-6 | 3/8" | 3/8" | 18 mm | 1.45" | 1.33" |
