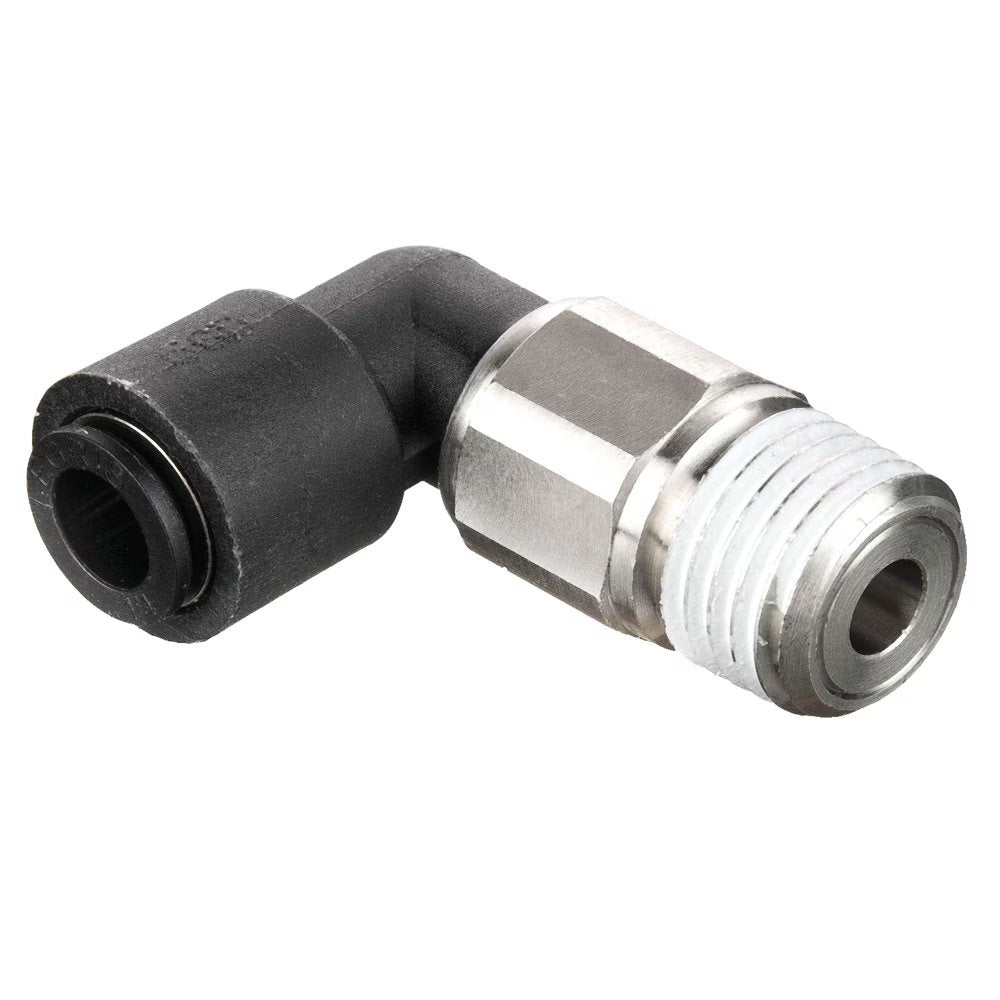

W369PLPO-4M-2 by Parker | Oscillating Elbows | 5/32" Tube Size x 1/8" NPT Thread | 90° Elbow | Glass Reinforced Nylon | Pack of 10
by Parker Hannifin
Oscillating Elbows:W369PLPO Oscillating Compact Elbow - NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $242.18 |
| 15–29 | $218.99 |
| 30+ | $193.23 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT | F | G | H | L |
| W369PLPO-4M-2 | 5/32" | 1/8" | 12 mm | .43" | .85" | .69" |
| W369PLPO-4-2 | 1/4" | 1/8" | 14 mm | .55" | 1.04" | .81" |
| W369PLPO-4-4 | 1/4" | 1/4" | 14 mm | .55" | 1.04" | .81" |
