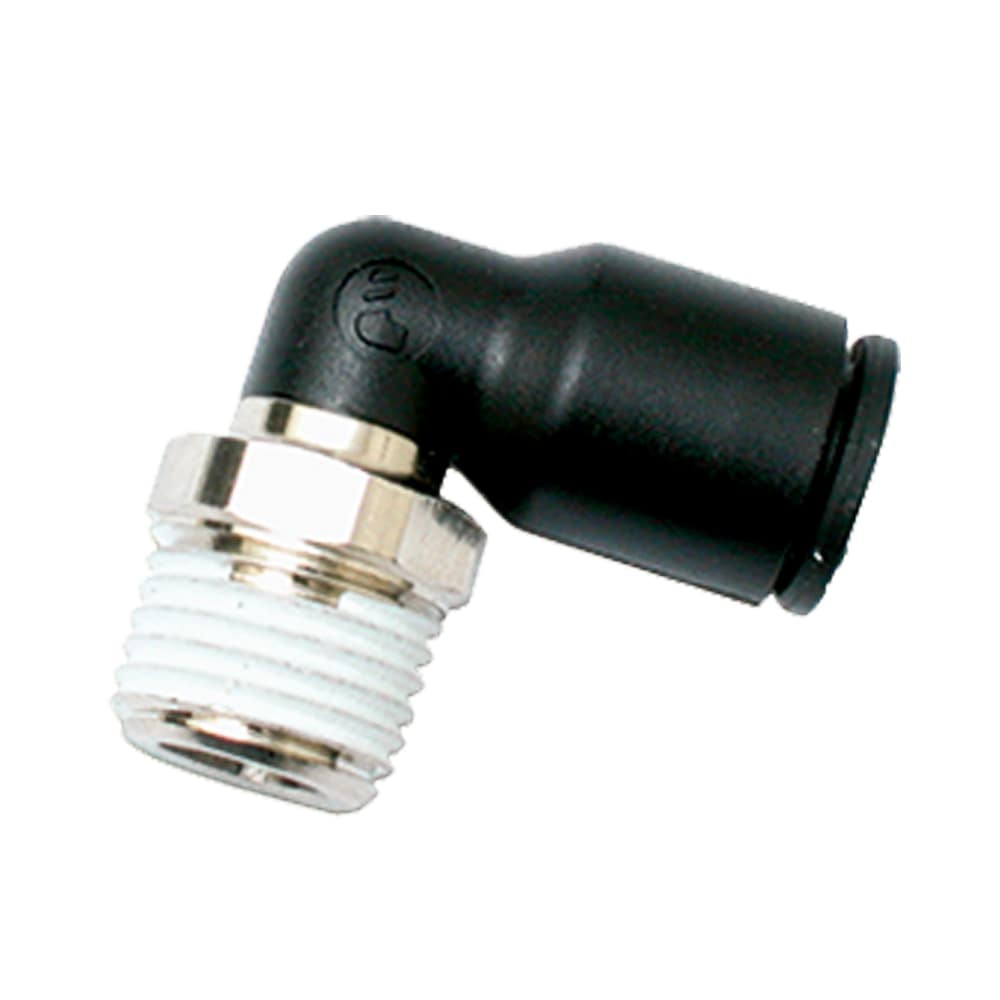

W369PLP-2-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 1/8" Tube Size x 1/4" Male NPT Thread | 14mm Hex | .57" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 500
by Parker Hannifin
Push-to-Connect Fittings:W369PLP Male Elbow - NPT
Package Quantity: 500 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,075.56 |
| 4–9 | $2,944.68 |
| 10+ | $2,617.50 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT / UNF | Hex (C) | L | N |
| 369PLP-2-0 | 1/8" | 10-32" | 8 mm | .57" | .52" |
| W369PLP-2-1 | 1/8" | 1/16" | 10 mm | .57" | .53" |
| W369PLP-2-2 | 1/8" | 1/8" | 11 mm | .57" | .53" |
| W369PLP-2-4 | 1/8" | 1/4" | 14 mm | .57" | .55" |
| 369PLP-4M-0 | 5/32" | 10-32" | 8 mm | .55" | .53" |
| W369PLP-3-2 | 3/16" | 1/8" | 11 mm | .85" | .67" |
| 369PLP-4-0 | 1/4" | 10-32" | 11 mm | .71" | .63" |
| W369PLP-4-2 | 1/4" | 1/8" | 11 mm | .71" | .67" |
| W369PLP-4-4 | 1/4" | 1/4" | 14 mm | .71" | .63" |
| W369PLP-4-6 | 1/4" | 3/8" | 18 mm | .71" | .65" |
| W369PLP-6-2 | 3/8" | 1/8" | 15 mm | 1.08" | .91" |
| W369PLP-6-4 | 3/8" | 1/4" | 15 mm | 1.08" | .91" |
| W369PLP-6-6 | 3/8" | 3/8" | 18 mm | 1.08" | .87" |
| W369PLP-6-8 | 3/8" | 1/2" | 22 mm | 1.08" | .91" |
| W369PLP-8-4 | 1/2" | 1/4" | 20 mm | 1.38" | 1.22" |
| W369PLP-8-6 | 1/2" | 3/8" | 20 mm | 1.38" | 1.22" |
| W369PLP-8-8 | 1/2" | 1/2" | 24 mm | 1.38" | 1.12" |
