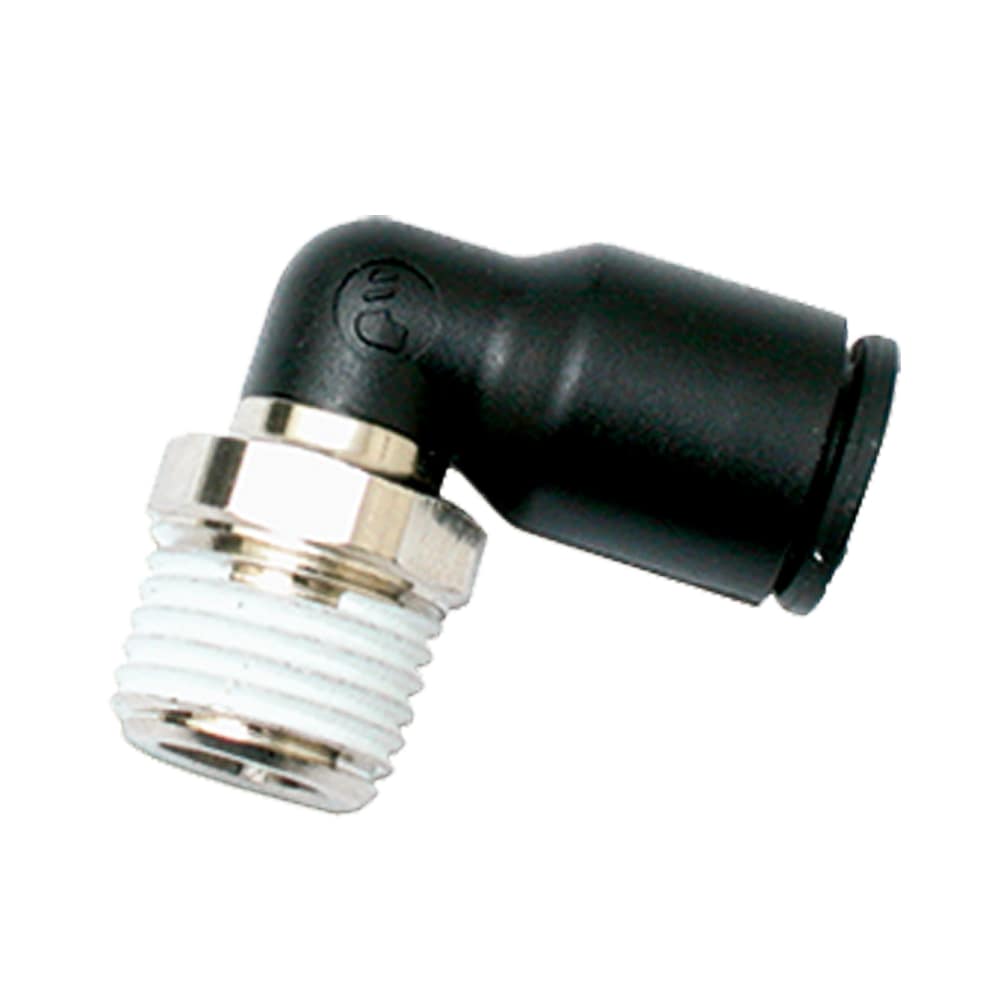

W369PLP-10M-4 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Thread Fitting | 10mm Tube Size x 1/4" Male NPT Thread | 15mm Hex | .91" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:W369PLP Male Elbow - NPT
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $131.47 |
| 20–59 | $118.88 |
| 60+ | $104.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread NPT | Hex (C) | H | L |
| W369PLP-4M-2 | 4 mm | 1/8" | 11 mm | .53" | .55" |
| W369PLP-4M-4 | 4 mm | 1/4" | 14 mm | .55" | .55" |
| W369PLP-6M-2 | 6 mm | 1/8" | 11 mm | .61" | .63" |
| W369PLP-6M-4 | 6 mm | 1/4" | 14 mm | .63" | .63" |
| W369PLP-8M-2 | 8 mm | 1/8" | 11 mm | .75" | .91" |
| W369PLP-8M-4 | 8 mm | 1/4" | 14 mm | .71" | .91" |
| W369PLP-8M-6 | 8 mm | 3/8" | 18 mm | .73" | .91" |
| W369PLP-10M-4 | 10 mm | 1/4" | 15 mm | .91" | 1.04" |
| W369PLP-10M-6 | 10 mm | 3/8" | 18 mm | .87" | 1.04" |
| W369PLP-10M-8 | 10 mm | 1/2" | 2211 mm | .91" | 1.04" |
| W369PLP-12M-6 | 12 mm | 3/8" | 18 mm | .98" | 1.22" |
| W369PLP-12M-8 | 12 mm | 1/2" | 22 mm | 1.02" | 1.22" |
