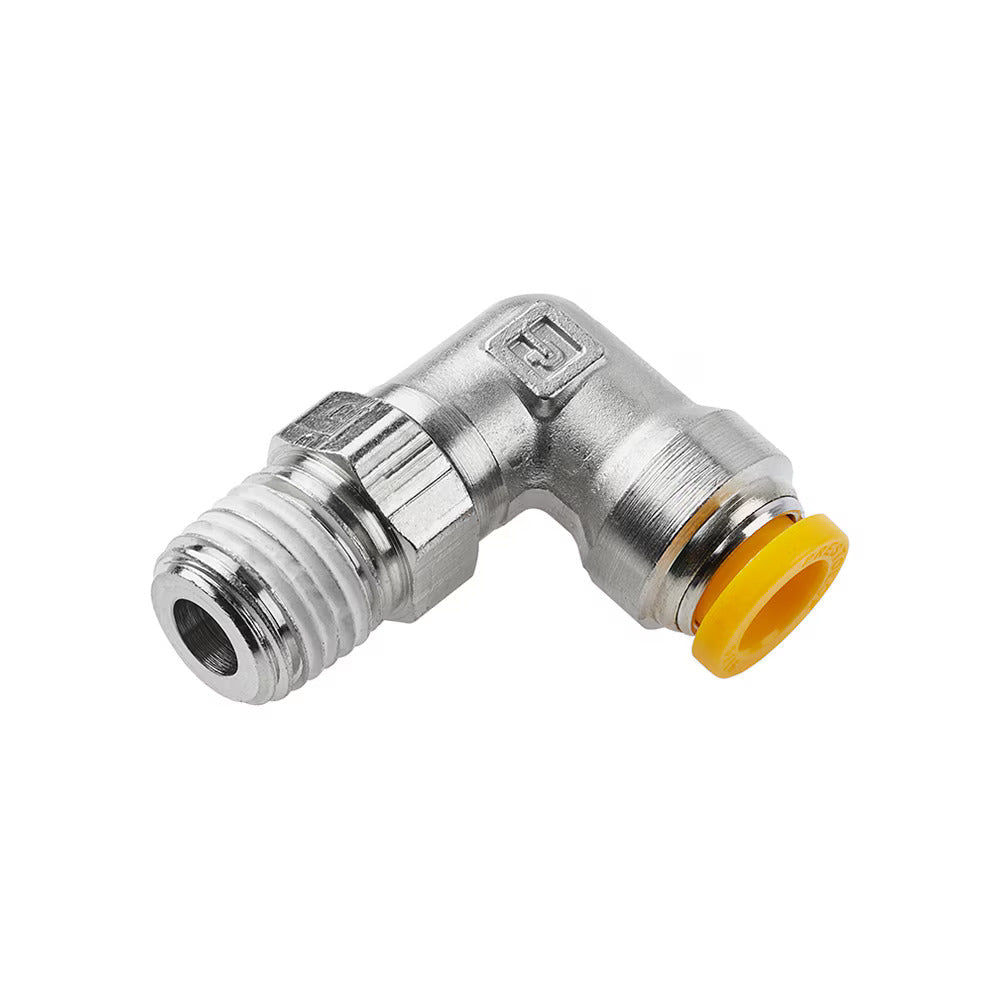

W169PLP-10M-6R by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 10mm Swivel x 3/8" Male BSPT Thread | 11/16" Hex | 23.75mm Length (L) | 31.75mm Length (N) | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass
by Parker Hannifin
Push-to-Connect Fittings:W169PLP Male Elbow Swivel 90° – BSPT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.92 |
| 40–79 | $12.59 |
| 80+ | $11.11 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPT | Hex (C) | L | N | Flow Diameter (D) |
| W169PLP-4M-2R | 4 mm | 1/8" | 7/16" | 19.05 mm | 23.93 mm | 3.175 mm |
| W169PLP-4M-4R | 4 mm | 1/4" | 9/16" | 19.05 mm | 28.50 mm | 3.962 mm |
| W169PLP-6M-2R | 6 mm | 1/8" | 7/16" | 19.13 mm | 22.91 mm | 3.962 mm |
| W169PLP-6M-4R | 6 mm | 1/4" | 9/16" | 19.13 mm | 27.48 mm | 3.962 mm |
| W169PLP-6M-6R | 6 mm | 3/8" | 11/16" | 19.13 mm | 29.74 mm | 3.962 mm |
| W169PLP-8M-2R | 8 mm | 1/8" | 9/16" | 24.20 mm | 26.16 mm | 6.350 mm |
| W169PLP-8M-4R | 8 mm | 1/4" | 9/16" | 24.20 mm | 31.75 mm | 6.350 mm |
| W169PLP-8M-6R | 8 mm | 3/8" | 11/16" | 24.20 mm | 31.75 mm | 6.350 mm |
| W169PLP-10M-4R | 10 mm | 1/4" | 9/16" | 23.75 mm | 31.49 mm | 6.350 mm |
| W169PLP-10M-6R | 10 mm | 3/8" | 11/16" | 23.75 mm | 31.75 mm | 6.350 mm |
| W169PLP-10M-8R | 10 mm | 1/2" | 7/8" | 23.75 mm | 37.69 mm | 6.350 mm |
| W169PLP-12M-4R | 12 mm | 1/4" | 11/16" | 27.63 mm | 32.86 mm | 7.950 mm |
| W169PLP-12M-6R | 12 mm | 3/8" | 11/16" | 27.63 mm | 33.78 mm | 9.525 mm |
| W169PLP-12M-8R | 12 mm | 1/2" | 7/8" | 27.63 mm | 38.96 mm | 9.525 mm |
