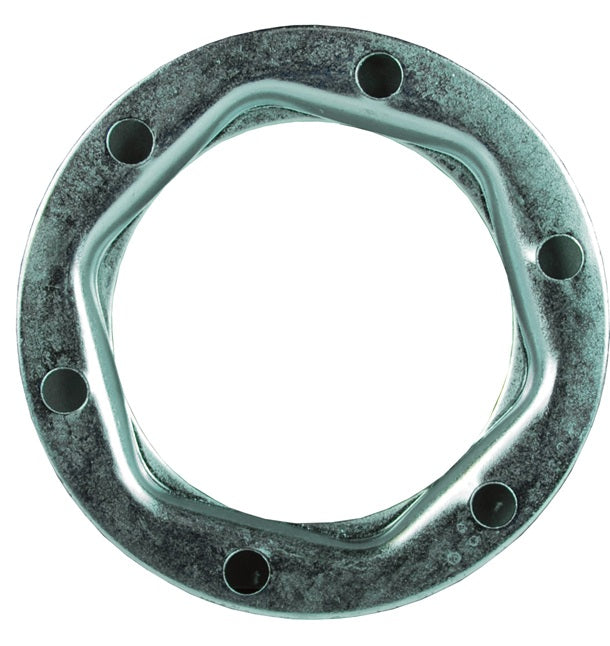

W10-BMF by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | Wingstyle Interchange Plug Mounting Flange | Fits 1-1/4" Body Size | Steel

W10-BMF by Dixon Valve | Hydraulic Quick Disconnect Coupling | W-Series | Wingstyle Interchange Plug Mounting Flange | Fits 1-1/4" Body Size | Steel

Sale price$10.72

Dixon Valve & Coupling
Hydraulic Coupling: W-Series Wingstyle Interchange Plug Mounting Flange
Buy More, Save More!
Quantity Price Each
10–39 $10.08
40–79 $9.11
80+ $8.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

Straight
Compatibility & Interchange:
  • Danfoss Eaton Aeroquip 5100-Series, Parker 6100-Series
  • Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series
Features:
  • Nipple mounting flange.
Construction:
  • Material: Steel
Additional Information:
W-Series | Wingstyle Interchange (Connected) Rated Pressure Chart
Body Size
Coupler/Plug
Max. Working Burst
1/4" 3,000 PSI 207 Bar 14,000 PSI 965 Bar
3/8" 3,000 PSI 207 Bar 13,000 PSI 897 Bar
3/4" 3,000 PSI 207 Bar 13,000 PSI 897 Bar
1" 4,000 PSI 276 Bar 16,000 PSI 1,103 Bar
1-1/4" 3,000 PSI 207 Bar 12,000 PSI 828 Bar
1-1/2" 2,500 PSI 172 Bar 10,000 PSI 690 Bar
W-Series | Wingstyle Interchange Plug Mounting Flange
Part Number Body Size Bolt Hole Size Material
W6-BMF 3/4" 0.201" Steel
W8-BMF 1" 0.201" Steel
W10-BMF 1-1/4" 0.201" Steel
W12-BMF 1-1/2" 0.201" Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
