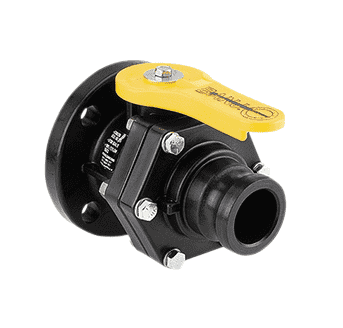

VSF200FPAF by Banjo | 2" Full Port Bolted Ball Valve | 2" ANSI Flange x 2" Male Adapter | Opening Thru Ball: 2" | 200 PSI | Polypropylene | Pack of 6

VSF200FPAF by Banjo | 2" Full Port Bolted Ball Valve | 2" ANSI Flange x 2" Male Adapter | Opening Thru Ball: 2" | 200 PSI | Polypropylene | Pack of 6

Sale price$905.18



Banjo Valves - Bolted Ball Valves - 2" Full Port Bolted Ball Valves - Polypropylene - 6 Bolt Valves

Package Quantity: 6 EA

Buy More, Save More!
Quantity Price Each
5–14 $850.87
15–29 $769.40
30+ $678.89
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 2in 150# Flange
  • 2in Male Cam & Groove
Applications:
  • Fluids
Features:
  • 100% PTFE seats.
  • FKM (viton type) seals.
  • Glass-filled polypropylene.
  • Unique compact design.
  • Lightweight.
Other Components:
  • 2" Full Port Bolted Ball Valve Replacement Parts

Part Number Port Type End Type Opening Thru Ball Max PSI Package Quantity
VSF200FPAF Full Port Valve 2" ANSI Flange x Male Cam and Groove Adapter 2" 200 PSI 1

Replacement Parts for VSF200FPAF
Item Part Number Description Quantity Required
1 V25255A 2" FP Ball 1
3 VS25151B Stem 1
6 V20019 3/8"-16 SS Hex Nut 6
7 V25258A 2" FP Ball Seat 2
9 V25264 FKM (viton type) Body O-Ring 1
11 V25153SH Handle 1
12 V25160 Upper Stem Bushing 1
13 V25163 FKM (viton type) Stem O-Ring 1
14 V20018 3/8" SS Lock Washer 6

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
