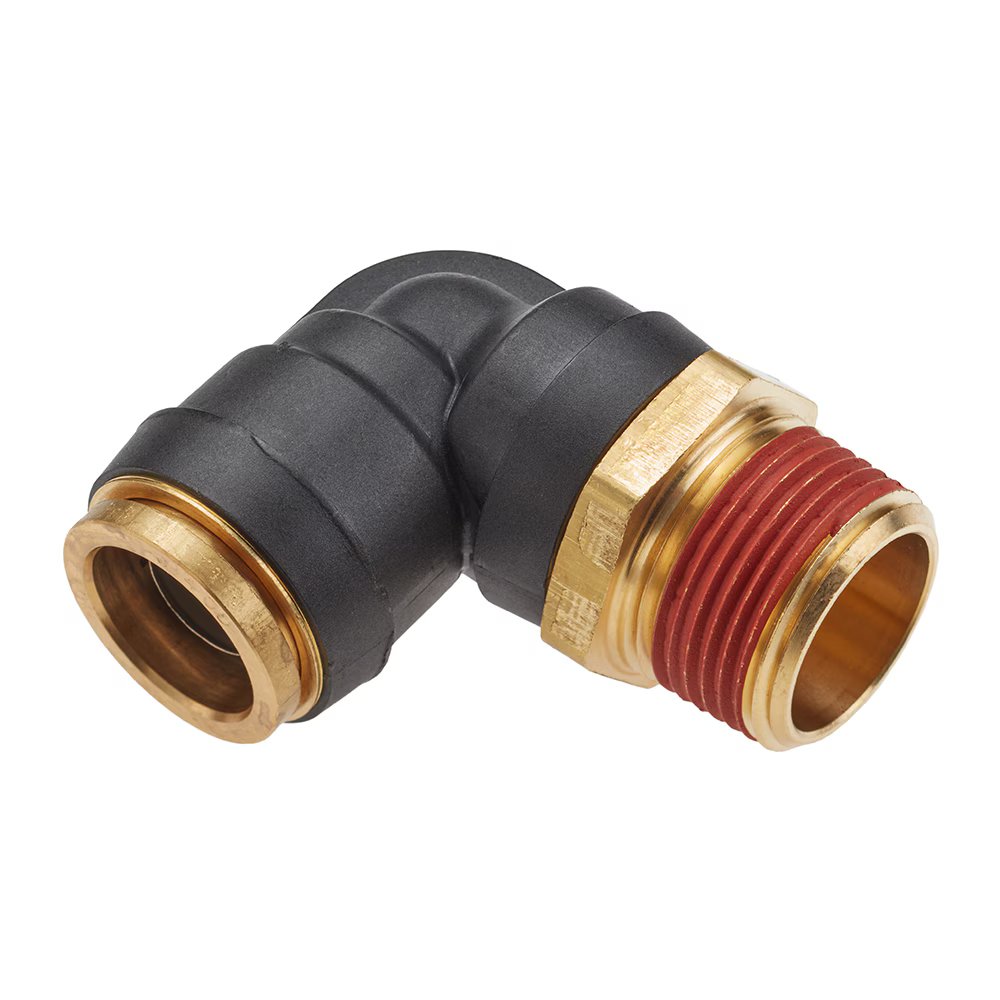

VS369PTCR-4-8 by Parker | Threaded Fitting | 1/4" Rigid Swivel Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex | Vibra-Seal | 90° Elbow | Composite | Pack of 230
by Parker Hannifin
PTC & PTCR Composite Fittings:Male Elbow Swivel 90° VS369PTCR
Package Quantity: 230 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,312.66 |
| 8–14 | $2,214.25 |
| 15+ | $1,968.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | +32° to +158° F (0 to +70° C) |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Hex (B) | L | M |
| VS369PTCR-4-2 | 1/4" | 1/8" | 9/16" | .74" | 1.00" |
| VS369PTCR-4-4 | 1/4" | 1/4" | 9/16" | .74" | 1.14" |
| VS369PTCR-4-6 | 1/4" | 3/8" | 11/16" | .74" | 1.14" |
| VS369PTCR-4-8 | 1/4" | 1/2" | 7/8" | .74" | 1.35" |
| VS369PTCR-6-2 | 3/8" | 1/8" | 3/4" | 1.01" | 1.24" |
| VS369PTCR-6-4 | 3/8" | 1/4" | 3/4" | 1.01" | 1.45" |
| VS369PTCR-6-6 | 3/8" | 3/8" | 3/4" | 1.01" | 1.28" |
| VS369PTCR-6-8 | 3/8" | 1/2" | 7/8" | 1.01" | 1.49" |
| VS369PTCR-8-4 | 1/2" | 1/4" | 15/16" | 1.13" | 1.42" |
| VS369PTCR-8-6 | 1/2" | 3/8" | 15/16" | 1.13" | 1.42" |
| VS369PTCR-8-8 | 1/2" | 1/2" | 15/16" | 1.13" | 1.61" |
| VS369PTCR-10-6 | 5/8" | 3/8" | 1-1/16" | 1.36" | 1.61" |
| VS369PTCR-10-8 | 5/8" | 1/2" | 1-1/16" | 1.36" | 1.80" |
| VS369PTCR-12-8 | 3/4" | 1/2" | 1-3/16" | 1.47" | 1.91" |
| VS369PTCR-12-12 | 3/4" | 3/4" | 1-3/16" | 1.47" | 1.87" |
