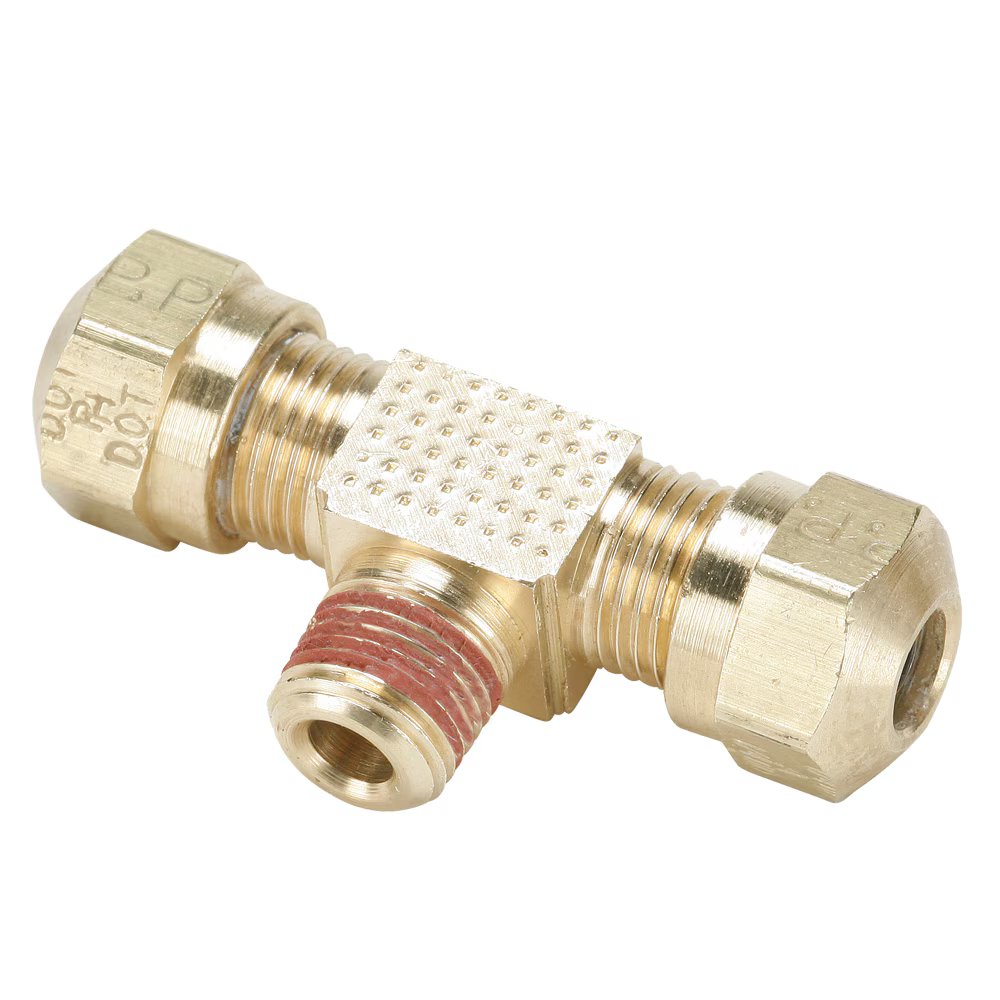

VS272NTA-8-4 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/4" Male Pipe Thread x 11/16" Thread | 2.90" Length | Tee | Brass | Pack of 10

VS272NTA-8-4 by Parker | Air Brake–NTA® Fittings | 1/2" Tube Size x 1/4" Male Pipe Thread x 11/16" Thread | 2.90" Length | Tee | Brass | Pack of 10

Sale price$307.44

by Parker Hannifin
Air Brake–NTA® Fittings:Male Branch Tee VS272NTA

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $288.99
15–29 $261.32
30+ $230.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Air Brake–NTA®
Series:
  • VS272NTA Series
Shape:

Tee
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread Straight Thread L1 L2 M1 M2 N Flow Diameter (D)
VS272NTA-3-2* 3/16" 3/16" 1/8" 5/16"-24 .90" .90" .61" .61" .66" .087"
VS272NTA-4-2 1/4" 1/4" 1/8" 7/16"-24 .95" .95" .62" .62" .66" .137"
VS272NTA-4-4 1/4" 1/4" 1/4" 7/16"-24 1.00" 1.00" .68" .68" .87" .137"
VS272NTA-6-2 3/8" 3/8" 1/8" 17/32"-24 1.18" 1.18" .75" .75" .73" .217"
VS272NTA-6-4 3/8" 3/8" 1/4" 17/32"-24 1.25" 1.25" .91" .91" .92" .217"
VS272NTA-6-4-4 3/8" 1/4" 1/4" 7/16"-24
7/32"-24		 .99" 1.25" .67" .79" .91" .137"
VS272NTA-6-6 3/8" 3/8" 3/8" 17/32"-24 1.27" 1.27" .84" .84" .91" .217"
VS272NTA-8-4 1/2" 1/2" 1/4" 11/16"-20 1.45" 1.45" .93" .93" .99" .338"
VS272NTA-8-6 1/2" 1/2" 3/8" 11/16"-20 1.45" 1.45" .93" .93" .99" .338"
VS272NTA-8-8 1/2" 1/2" 1/2" 11/16"-20 1.55" 1.55" 1.03" 1.03" 1.18" .338"
VS272NTA-10-8 5/8" 5/8" 1/2" 13/16"-18 1.60" 1.60" 1.09" 1.09" 1.24" .398"

*Meets D.O.T. FMVSS 571.106 specification. No applicable SAE specification for this tube size.
