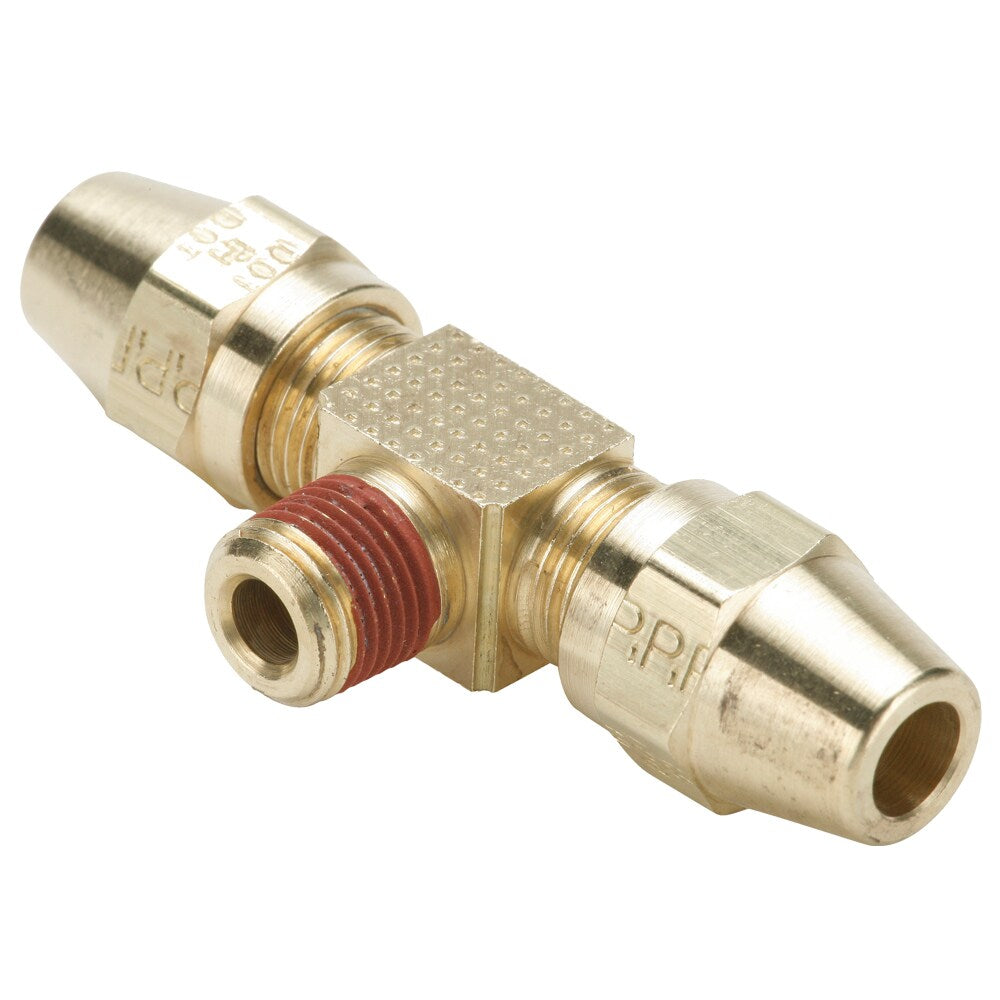

VS272AB-4-4 by Parker | Air Brake - AB Fittings | 1/4" Tube Size x 1/4" Male Pipe Thread x 7/16" Thread | Tee | Brass | Pack of 10
by Parker Hannifin
Air Brake – AB Fittings:Male Branch Tee VS272AB
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $231.62 |
| 20–59 | $209.44 |
| 60+ | $184.80 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Specification: | |
| Pressure Range: | Up to 400 PSI (27.5 bar) |
| Temperature Range: | -65° to +250° F (-53.8° to +121.1° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | Pipe Thread | Straight Thread | L | M | N | Flow Diameter (D) |
| VS272AB-4-2 | 1/4" | 1/8" | 7/16"-24 | 1.20" | .62" | .66" | .189" |
| VS272AB-4-4 | 1/4" | 1/4" | 7/16"-24 | 1.26" | .68" | .87" | .189" |
| VS272AB-6-2 | 3/8" | 1/8" | 17/32"-24 | 1.61" | .72" | .75" | .189" |
| VS272AB-6-4 | 3/8" | 1/4" | 17/32"-24 | 1.68" | .79" | .92" | .314" |
| VS272AB-6-6 | 3/2" | 3/8" | 17/32"-24 | 1.73" | .84" | .91" | .314" |
| VS272AB-8-6 | 1/2" | 3/8" | 11/16"-20 | 1.89" | .93" | .99" | .408" |
| VS272AB-8-8 | 1/2" | 1/2" | 11/16"-20 | 1.99" | 1.03" | 1.18" | .408" |
| VS272AB-10-8 | 5/8" | 1/2" | 13/16"-18 | 2.18" | 1.09" | 1.24" | .533" |
