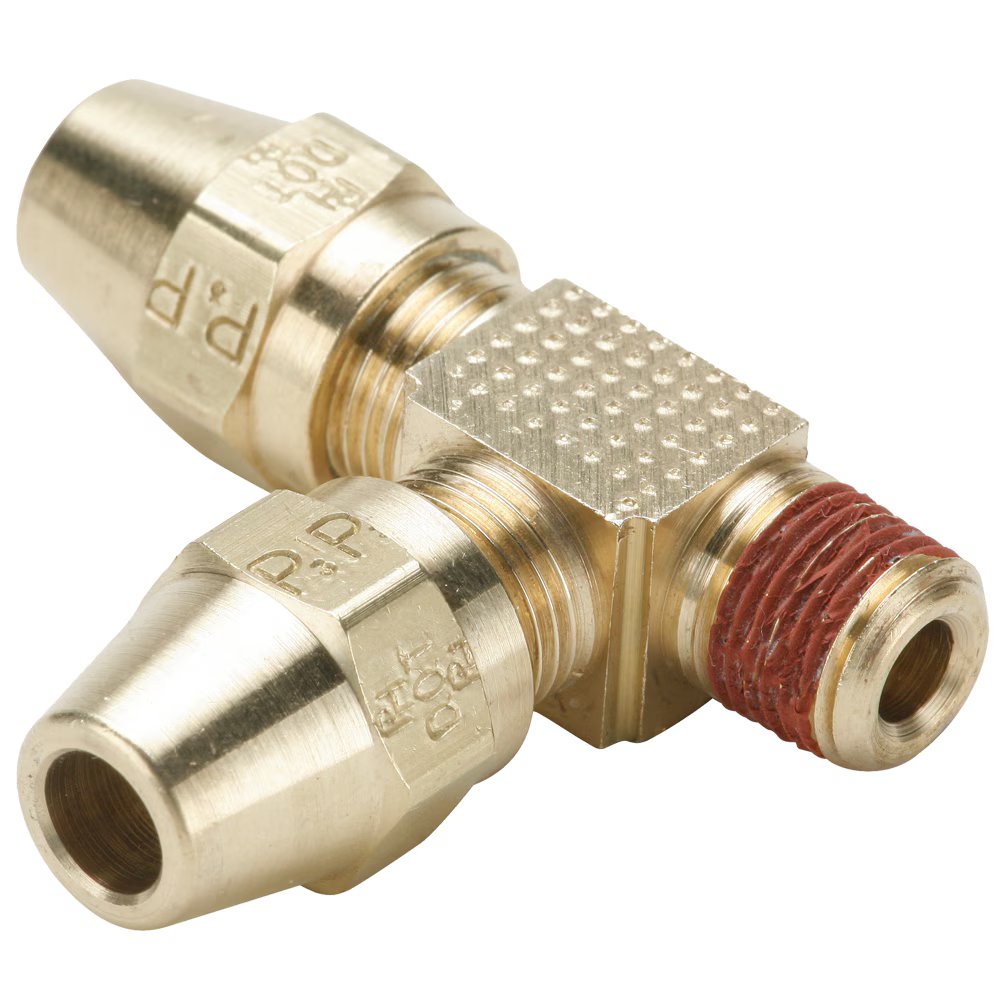

VS271AB-6-4 by Parker | Air Brake - AB Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread x 17/32" Thread | Tee | Brass | Pack of 10

VS271AB-6-4 by Parker | Air Brake - AB Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread x 17/32" Thread | Tee | Brass | Pack of 10

Sale price$178.21

by Parker Hannifin
Air Brake – AB Fittings:Male Run Tee VS271AB

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $167.52
20–59 $151.48
60+ $133.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • VS271AB Series
Shape:

Tee

Ends Configuration:
  • 3/8in Tube Compression
  • 3/8in Tube Compression
  • 1/4in Male NPT
  • Some Ends Match
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread L M N Flow Diameter (D)
VS271AB-4-2 1/4" 1/8" 7/16"-24 1.20" .62" .66" .189"
VS271AB-4-4 1/4" 1/4" 7/16"-24 1.26" .68" .87" .189"
VS271AB-6-4 3/8" 1/4" 17/32"-24 1.68" .79" .92" .314"
VS271AB-6-6 3/8" 3/8" 17/32"-24 1.73" .84" .91" .314"
VS271AB-8-6 1/2" 3/8" 11/16"-20 1.89" .93" .99" .408"
VS271AB-8-8 1/2" 1/2" 11/16"-20 1.99" 1.03" 1.18" .408"
