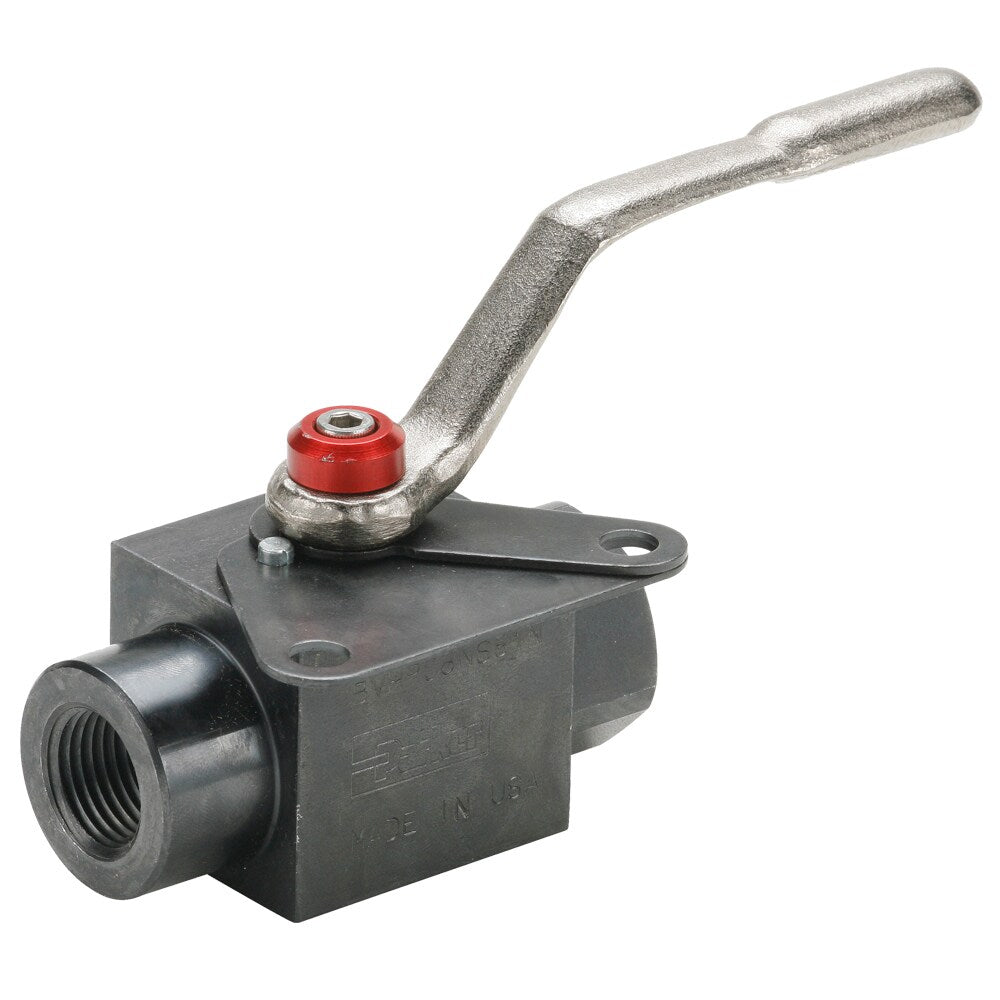

VP500HP-4 by Parker | Ball Valve | 1/4" Female NPT Thread | 5.97" Length | Straight | Carbon Steel

VP500HP-4 by Parker | Ball Valve | 1/4" Female NPT Thread | 5.97" Length | Straight | Carbon Steel

Sale price$133.65

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:7,250 PSI Locking-Female-Female Pipe Ends VP500HP
Buy More, Save More!
Quantity Price Each
20–29 $125.63
30–59 $113.60
60+ $100.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • VP500HP Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • Delrin with Molybdenum Disulphide Seats
  • Nitrile O-rings Stem Seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female NPT Ports
  • 506-Female/Female SAE Straight Thread Ports
Material:
  • HP-High Pressure Carbon Steel
Specification:
Temperature Range: -10° to +210° F (-23.3° to 98.8° C)
Pressure Range:
  • 6000 PSI (413.6 bar)* (*Dependent on size)
  • 7250 PSI (9.9 bar)* (*Dependent on size)
Part Number Pipe Thread (NPT) B C H L M N Flow Diameter (D)
VP500HP-4 1/4"-18 .57" 1.30" 4.61" 1.57" 2.72" 3.22" .240"
VP500HP-6 3/8"-18 .57" 1.50" 4.61" 1.70" 2.83" 3.42" .390"
VP500HP-8 1/2"-14 .68" 1.57" 4.61" 1.89" 3.25" 3.50" .510"
VP500HP-16 1"-11.5 .76" 2.76" 6.73" 2.92" 4.45" 5.45" .980"

*Locking plate ships separately in the box. Assembly is required.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
