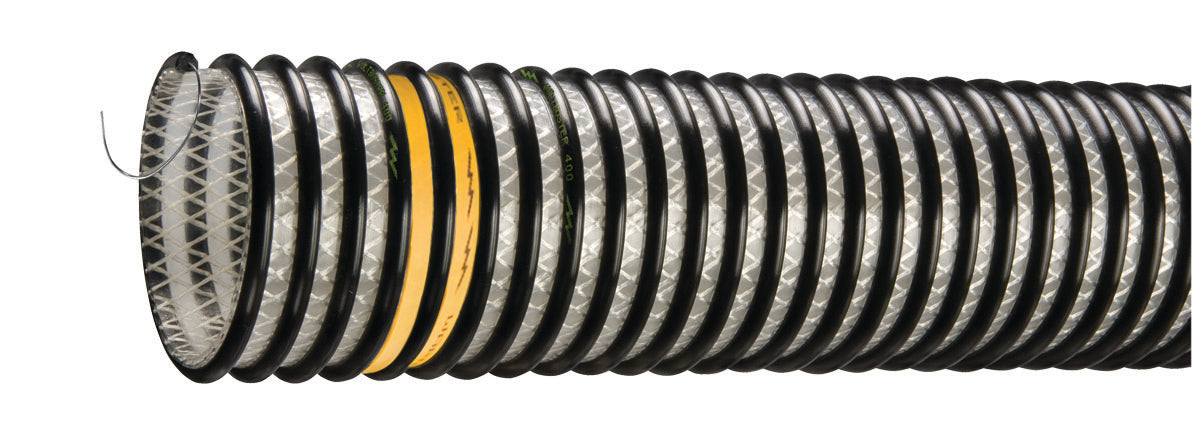

VLT-SD200X50 Tigerflex® Voltbuster™ by Kuriyama | VLT-SD™ Series | Heavy-Duty Food Grade Charge Reducing Fabric Reinforced Material Handling Hose | with Grounding Wire | Polyurethane | 2" ID | 2.67" OD | 50ft Length
Tigerflex® | Voltbuster™ VLT-SD™ Series | Heavy-Duty Food Grade Charge Reducing Fabric Reinforced Material Handling Hose with Grounding Wire | Polyurethane
Built for heavy-duty bulk transfer.
Ideal for truck and railcar unloading, abrasive food-grade material handling, milling scrap recovery, and suction and discharge use in plastic processing and pneumatic conveying systems.
Made in the USA.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,445.64 |
| 8–14 | $1,384.13 |
| 15+ | $1,230.34 |
Product Data:
75
Tigerflex™ Voltbuster™ VLT-SD Series
Heavy-duty abrasive food grade suction and discharge hose with a charge reducing polyurethane tube, polyester fabric reinforcement, rigid helix and embedded grounding wire (patent pending) — engineered for superior static protection in bulk unloading and pneumatic conveying.
Superior Static Protection
Charge decay time constant of < 1 second when properly grounded
Food Grade Materials
Tube complies with applicable FDA requirements
Abrasion Resistant
Extra thick double-ply polyurethane tube
Cold-Flex Materials
Remains flexible in sub-zero temperatures
See-the-Flow
Transparent construction for visual confirmation of flow
1
What is this product used for?
- Bulk truck and railcar unloading
- Food grade material handling — heavy duty abrasive
- Milling machine scrap recovery
- Plastic processing equipment
- Pneumatic conveying equipment
- Suction and discharge
2
What are the key specifications?
Charge reducing polyurethane
Polyester fabric reinforcement, rigid helix and grounding wire (patent pending)
—
-40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
BSE/TSE (02) · FDA (05) · Phthalate Free (10) · RoHS (11)
3
What are the main product features?
- Superior Static Protection! — A properly grounded Voltbuster™ hose will not retain an electrostatic charge sufficient to create a propagating brush discharge. Hose material, using the embedded grounding wire, shows a charge decay time constant of < 1 second, based on independent lab testing.
- Food Grade Materials — Hose tube complies with FDA (05) requirements. Grounding wire embedded in external helix to prevent material contamination.
- Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube — Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Fabric Reinforcement — Designed with high tensile strength, food grade FDA (06), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
- Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
- "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
- Easy Slide Helix — Rigid helix design protects hose from wear; allows hose to slide easily over rough surfaces. Easy to handle.
- Made in the USA
4
Which sizes are available?
| Part Number |
ID | OD | Working Pressure (PSI) |
Vacuum Rating in Hg |
Min. Bending Radius |
Length (ft) |
Weight (lbs/ft) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F |
at 104°F |
at 68°F |
at 104°F |
at 68°F |
|||
| 2" ID | |||||||||||
| VLT-SD200X50 | 2" | 51.1mm | 2.67" | 67.0mm | 75 PSI | 40 PSI | Full | 28 in Hg | 9" | 50ft | 0.77 lbs |
| VLT-SD200X100 | 2" | 51.1mm | 2.67" | 67.0mm | 75 PSI | 40 PSI | Full | 28 in Hg | 9" | 100ft | 0.77 lbs |
| 3" ID | |||||||||||
| VLT-SD300X20 | 3" | 77.0mm | 3.78" | 96.0mm | 70 PSI | 35 PSI | Full | 28 in Hg | 12" | 20ft | 1.22 lbs |
| VLT-SD300X100 | 3" | 77.0mm | 3.78" | 96.0mm | 70 PSI | 35 PSI | Full | 28 in Hg | 12" | 100ft | 1.22 lbs |
| 4" ID | |||||||||||
| 2020-400X20 | 4" | 102.2mm | 4.84" | 123.0mm | 65 PSI | 30 PSI | Full | 28 in Hg | 13" | 20ft | 1.85 lbs |
| 2020-400X50 | 4" | 102.2mm | 4.84" | 123.0mm | 65 PSI | 30 PSI | Full | 28 in Hg | 13" | 50ft | 1.85 lbs |
| 2020-400X100 | 4" | 102.2mm | 4.84" | 123.0mm | 65 PSI | 30 PSI | Full | 28 in Hg | 13" | 100ft | 1.85 lbs |
| 5" ID | |||||||||||
| VLT-SD500X60 | 5" | 128.0mm | 5.79" | 152.0mm | 45 PSI | 22 PSI | 28 in Hg | 25 in Hg | 14" | 60ft | 2.43 lbs |
| 6" ID | |||||||||||
| VLT-SD600X60 | 6" | 153.4mm | 6.93" | 177.4mm | 40 PSI | 22 PSI | 28 in Hg | 25 in Hg | 17" | 60ft | 3.05 lbs |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide PDF
Consult the Tigerflex Hose Specifications Guide for more information on BSE/TSE, FDA, Phthalate Free and RoHS compliance.
How is this product sold?
Sold by the coil in 20 ft, 50 ft, 60 ft and 100 ft lengths, depending on hose size. See the size chart above for available part numbers.
