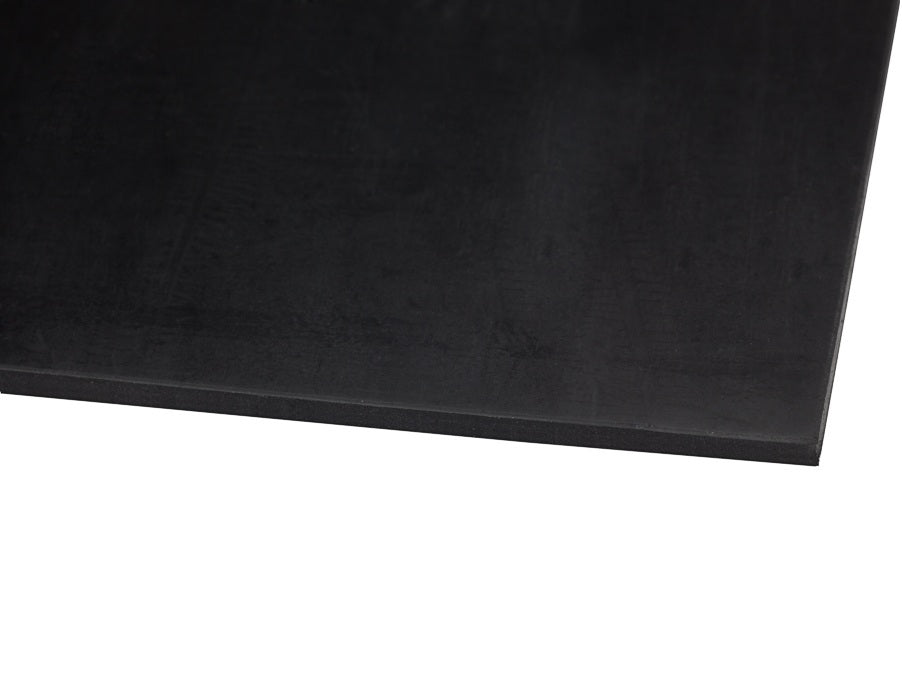

VI70-02x36x30 by Kuriyama | Style VI70 | VITON® Sheet Rubber | 70 Duro Hardness (Shore Durometer A) | 1/16" Gauge x 36" Width | Black | 30ft per Roll
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
What are the Features?
- Excellent resistance to many concentrated acids.
- Excellent resistance to heat.
- Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition.
- Note: VITON® is a registered trademark of The Chemours Company.
What are the Materials?
- VITON® - Grade A - 66% Fluorine.
What are the Specifications?
- Style VI70: 70 Duro hardness (Shore Durometer A).
- Polymer: Hexaflouropropylene Vinylidene Flouride.
- Common Name: Viton
- ISO/ASTM Designation: FKM
- Talc Free.
- Material is within commercial sheet rubber gauge tolerances.
| Series | ASTM Specification (SI units) |
Temp. Range | Durometer | Tensile Strength (PSI) |
Elongation (%) |
Finish |
|---|---|---|---|---|---|---|
| VI70 | D 2000 M2HK 707 B37 | -14°F to +482°F | 70 | 1015 | 175% | Plate |
| Part Number | Gauge x Width (in) |
Avg. Length (Linear Ft. /Roll) |
Approx. Weight/Roll Lbs./Roll |
|---|---|---|---|
| VI70-02x36x30 | 1/16 x 36" | 30 ft | 58 lbs |
| VI70-03x36x30 | 3/32 x 36" | 30 ft | 85 lbs |
| VI70-04x36x10 | 1/8 x 36" | 10 ft | 37 lbs |
| VI70-04x36x30 | 1/8 x 36" | 30 ft | 110 lbs |
| VI70-08x36x15 | 1/4 x 36" | 15 ft | 111 lbs |
Please ensure the product meets your application specification prior to order placement.
