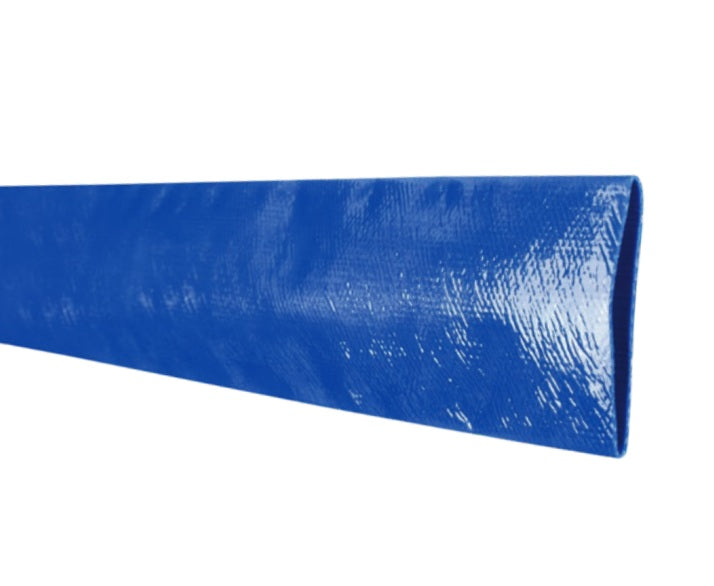

VFL300X300 Vinylflow® by Kuriyama | EZ-Lite™ VFL Series | General Purpose Water Discharge Layflat Hose | PVC | 3" Size | 3.071" Hose ID | Blue | 300ft Length

VFL300X300 Vinylflow® by Kuriyama | EZ-Lite™ VFL Series | General Purpose Water Discharge Layflat Hose | PVC | 3" Size | 3.071" Hose ID | Blue | 300ft Length

Minimum Order Quantity: 5 Units

Sale price$798.05

Kuriyama
EZ-Lite™ VFL Series | General Purpose Water Discharge Layflat Hose

Designed for agriculture, construction, and equipment rental.

Package Quantity: 300 Foot

Buy More, Save More!
Quantity Price Each
5–14 $750.17
15–29 $678.34
30+ $598.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Vinylflow
Series:
  • EZ-Lite Series
  • VFL Series
Color(s):
  • Blue

SPECIFICATIONS

Applications: Agriculture
Construction
Equipment Rental
Construction: Spiral homogeneous PVC construction is ideal for construction and agriculture applications, and provides for minimal elongation.
Service Temperature Range: -10°F (-12°C) to +140°F (+60°C)
Other Features:
  • Durable PVC Material - Provides good abrasion, chemical and UV resistance.
  • "EZ" Design - An easy to handle, lightweight hose for general purpose applications.
  • Smooth PVC Tube - Provides low friction loss.
  • PVC Cores - Hoses coiled around durable PVC cores providing for easy unwinding.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
Part Number
50ft		 Part Number
300ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure
(PSI)
(in) (mm) (in) (mm) (in) at 68°F at 68°F
- VFL075X300 3/4" 19.1mm 0.760" 19.3mm 0.054" 100 PSI 300 PSI
- VFL100X300 1" 25.4mm 1.024" 26.0mm 0.051" 85 PSI 255 PSI
- VFL125X300 1-1/4" 31.8mm 1.299" 33.0mm 0.051" 85 PSI 255 PSI
- VFL150X300 1-1/2" 38.1mm 1.614" 41.0mm 0.045" 65 PSI 195 PSI
VFL200X50 VFL200X300 2" 50.8mm 2.087" 53.0mm 0.048" 65 PSI 195 PSI
VFL300X50 VFL300X300 3" 76.2mm 3.071" 78.0mm 0.055" 60 PSI 180 PSI
- VFL400X300 4" 101.6mm 4.094" 104.0mm 0.056" 60 PSI 180 PSI
- VFL600X300 6" 152.4mm 6.102" 155.0mm 0.061" 40 PSI 120 PSI
- VFL800X300 8" 203.2mm 8.189" 208.0mm 0.073" 40 PSI 120 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
