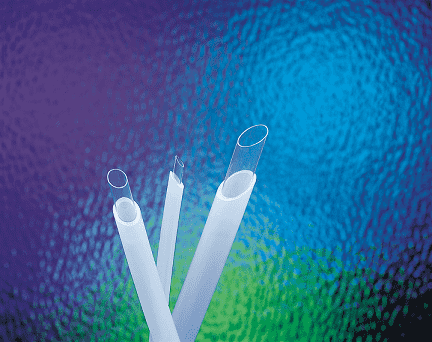

TSFE4.187312PL2-50 Versilon™ by Saint Gobain | 3/16" I.D. x 1/4" O.D. x .010 Wall | Duality Series | Fluoropolymer Lined Tubing | 50' Package Length
Saint Gobain - Versilon™ Duality Fluoropolymer Lined Tubing
No by the foot sales. This is a Packaged Length product.
Package Quantity: 50 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $88.13 |
| 20–59 | $79.70 |
| 60+ | $70.32 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
350
Tubing Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Liquor Dispensing Systems, Photo Development, Environmental Sampling Tubes, Bottle-Filling Equipment, Brewing and Distilling Processes, General Lab Use | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | FEP |
| Reinforcement: | N/A | Cover: | LDPE |
| Temperature Range: | 25 deg. F (-32 deg. C) - 180 deg. F (82 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA Approved |
| Literature: | Versilon™ Duality Fluoropolymer Lined Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number (50ft Lengths) | Part Number (100ft Lengths) | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Bend Radius (in.) | Temperature Burst (PSI)* |
|---|---|---|---|---|---|---|
| TSFE4-125250PL1-50 | TSFE4-125250PL1.10 | 1/8" | 1/4" | .010" | 1" | 900 PSI |
| TSFE4-187312PL2-50 | TSFE4-187312PL2.10 | 3/16" | 1/4" | .010" | 1-1/4" | 350 PSI |
| TSFE4-250312PL4-50 | TSFE4-250312PL4.10 | 1/4" | 5/16" | .010" | 6" | 300 PSI |
| TSFE4-250375PL5-50 | TSFE4-250375PL5.10 | 1/4" | 3/8" | .010" | 1-1/2" | 600 PSI |
| TSFE4-375437PL7-50 | TSFE4-375437PL7.10 | 3/8" | 7/16" | .012" | 4" | 200 PSI |
| TSFE4-375500PL8-50 | TSFE4-375500PL8.10 | 3/8" | 1/2" | .012" | 4" | 350 PSI |
| TSFE4-500625PL9-50 | TSFE4-500625PL9.10 | 1/2" | 5/8" | .015" | 6" | 250 PSI |
