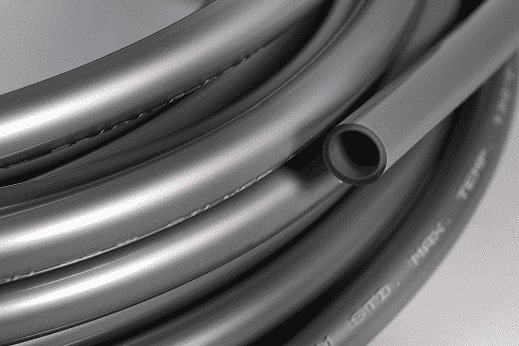

AS600007 Versilon™ by Saint Gobain | 1/8" I.D. x 1/4" O.D. x 1/16" Wall | Silver | Antimicrobial Tubing | 50' Package Length
Saint Gobain - Versilon™ Silver Antimicrobial Tubing
Versilon™ Silver flexible tubing is formulated with a silver-based compound on the inner surface at the point of fluid contact. The tubing's outer surface can be treated in cases where bacteria buildup on the outer diameter is a concern.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.36 |
| 20–59 | $87.13 |
| 60+ | $76.88 |
Product Data:
65
SPECIFICATIONS
| Application: | Food and Beverage, Ice Machines, Water Purification, Water Bottle Straws, Environmental, Chemical, Dairy, Lab | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | N/A |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -31 deg. F (35 deg. C) - 165 deg. F (74 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | FDA 21 CFR, 175.1520, NSF Standard 51 |
| Literature: | Versilon™ Silver Antimicrobial Tubing PDF | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Bend Radius (in.) | Max. Working Pressure at 73 deg. F (PSI)* | Vacuum Rating (in. Hg) | Length |
|---|---|---|---|---|---|---|---|
| AS600007 | 1/8" | 1/4" | 1/16" | 1/2" | 65 PSI | 29.9 in. Hg | 50ft |
| AS600012 | 3/16" | 5/16" | 1/16" | 3/4" | 50 PSI | 29.9 in. Hg | 50ft |
| AS600017 | 1/4" | 3/8" | 1/16" | 3/4" | 40 PSI | 29.9 in. Hg | 50ft |
| AS600027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 30 PSI | 25.0 in. Hg | 50ft |
| AS600038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 38 PSI | 29.9 in. Hg | 50ft |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
