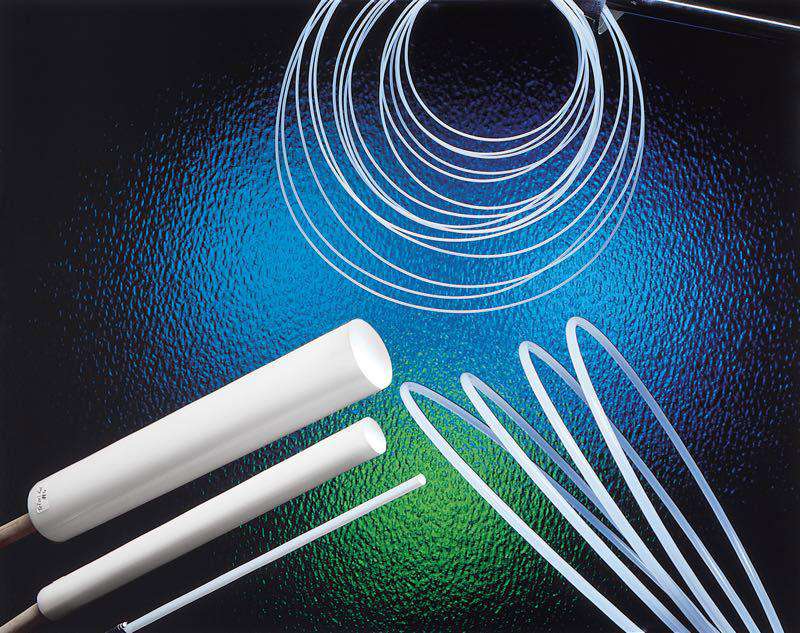

TSTZ83-0125-016.10 Versilon™ by Saint Gobain | .3/32" I.D. x 1/8" OD x .016" Wall | ETFE Tubing | Roll of 100 Feet
Saint Gobain - Versilon™ ETFE Tubing: Radiation Resistant Tubing with Excellent Mechanical Properties.
Versilon™ ETFE tubing offers improved mechanical properties over fluoropolymers such as FEP and PFA and is resistant to radiation, abrasion, and impact. The material is weather-resistant, inert to most solvents and chemicals, and has a continuous service temperature of 300°F (148°C).
Due to its mechanical properties, Versilon™ ETFE tubing can be used to manufacture valves, fittings, bearings, pump components and electrical coatings. Versilon™ ETFE tubing is made from materials that meet ASTM standard D3159.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $140.07 |
| 20–59 | $126.66 |
| 60+ | $111.76 |
Product Data:
SPECIFICATIONS
| Application: | Bearings, Electrical Coatings, Fittings, Pump Components, Valves |
SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | Meets ASTM standard D3159 | Tube: | ETFE |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | 300°F (150°C) to -150°F (-66°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature: | Versilon™ ETFE Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) |
|---|---|---|---|
| TSTZ83-0062-023.10 | 0.02" | 1/16" | 0.02" |
| TSTZ83-0125-031.10 | 0.016" | 1/16" | 0.02" |
| TSTZ83-0125-016.10 | 3/32" | 1/8" | 1/64" |
| TSTZ83-0062-021.10 | 1/16" | 1/8" | 1/32" |
| TSTZ83-0250-031.10 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0312-040.10 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0375-048.10 | 0.23" | 0.31" | 0.04" |
| TSTZ83-0250-062.10 | 0.28" | 0.38" | 0.05" |
| TSTZ83-0500-062.10 | 3/8" | 1/2" | 1/16" |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application.
