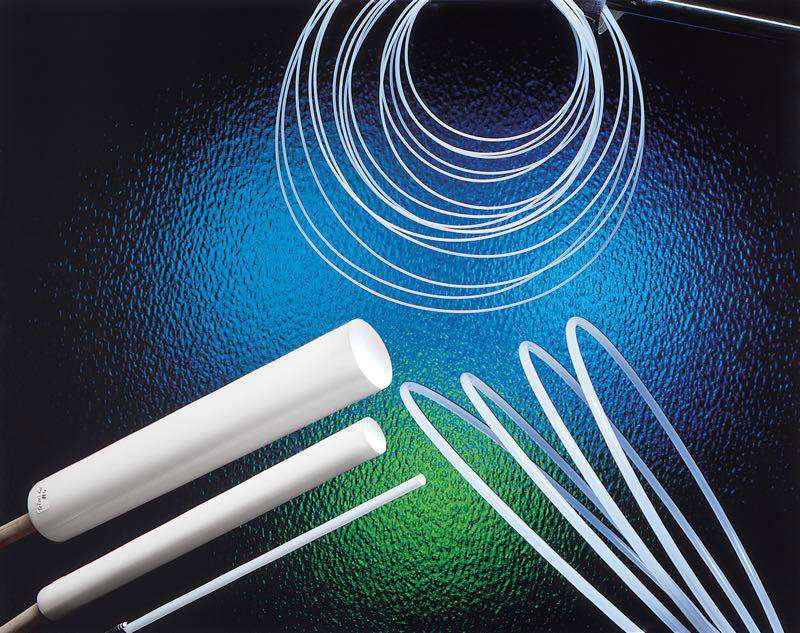

TSTZ83-0062-023.10 Versilon™ by Saint Gobain | .016" I.D. x 1/16" OD x .023 Wall | ETFE Tubing | Roll of 100 Feet
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Bearings, Electrical Coatings, Fittings, Pump Components, Valves |
SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | Meets ASTM standard D3159 | Tube: | ETFE |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | 300°F (150°C) to -150°F (-66°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Literature: | Versilon™ ETFE Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) |
|---|---|---|---|
| TSTZ83-0062-023.10 | 0.02" | 1/16" | 0.02" |
| TSTZ83-0125-031.10 | 0.016" | 1/16" | 0.02" |
| TSTZ83-0125-016.10 | 3/32" | 1/8" | 1/64" |
| TSTZ83-0062-021.10 | 1/16" | 1/8" | 1/32" |
| TSTZ83-0250-031.10 | 3/16" | 1/4" | 1/32" |
| TSTZ83-0312-040.10 | 1/8" | 1/4" | 1/16" |
| TSTZ83-0375-048.10 | 0.23" | 0.31" | 0.04" |
| TSTZ83-0250-062.10 | 0.28" | 0.38" | 0.05" |
| TSTZ83-0500-062.10 | 3/8" | 1/2" | 1/16" |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application.
