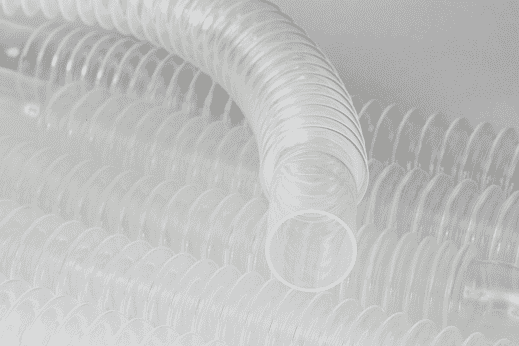

FXFE6.625025 CT-Flex Versilon™ by Saint Gobain | 5/8" I.D. x 15/16" O.D. x .025" Wall | FEP Corrugated Tubing

FXFE6.625025 CT-Flex Versilon™ by Saint Gobain | 5/8" I.D. x 15/16" O.D. x .025" Wall | FEP Corrugated Tubing

Minimum Order Quantity: 5 Units

Sale price$4.97

Saint Gobain - Versilon™ CT-Flex FEP Corrugated Tubing

NOTE: This tubing is sold by the INCH

No by the foot sales. This is a Packaged Length product.
Buy More, Save More!
Quantity Price Each
20–39 $4.67
40–79 $4.22
80+ $3.73
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Versilon
Series:
  • CT-Flex
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Application: Electrical, Electronics, Aerospace, Analytical, Military, Semiconductor, Chemical, Automotive, Medical SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: N/A
Temperature Range: 200 deg. F (93.3 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR 17.1550
Literature: Versilon™ CT-Flex FEP Corrugated Tubing (PDF)
Other Features:
  • Unique chemical, electrical and thermal properties
  • Extension/compression length ratio: approximately 2:1
  • Bend diameter: 1/2 of tubing I.D.
  • Virtually unlimited length capability
  • Maximum Continuous Service Temperature: 200 deg. F (93.3 deg. C)/0 pressure.
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Unbraided Burst Pressure at Room Temperature (PSI)*
FXFE6.250015 1/4" 3/8" .017" 1/8" 200 PSI
FXFE6.375020 3/8" 9/16" .020" 3/16" 140 PSI
FXFE6.500025 1/2" 3/4" .025" 1/4" 110 PSI
FXFE6.625025 5/8" 15/16" .025" 5/16" 90 PSI
* ASTM-D2116 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
