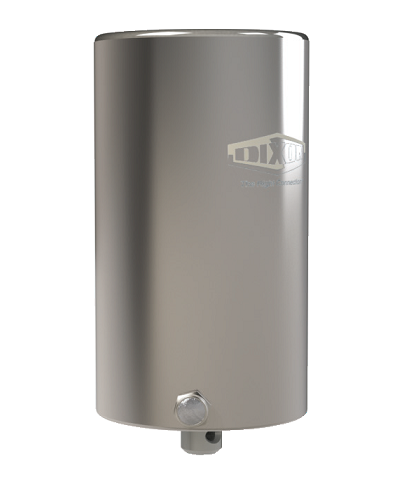

VC-NR-100-SR Dixon Valve VC Series Pneumatic Vertical Canister Actuator - Spring Return - Stainless Steel

VC-NR-100-SR Dixon Valve VC Series Pneumatic Vertical Canister Actuator - Spring Return - Stainless Steel

Sale price$469.54
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Excellent protection and corrosion resistance.
  • Tested to one million cycles.
  • 100% fully tested.
  • Backed by one year manufacturer's warranty.
  • Encapsulated spring set.
Part Number Description Weight Air Consumption
(in3)		 Max. Temp.
Rating		 Min. Temp.
Rating		 Output
Torque
(in-lb)		 Max. Pressure
Rating		 Supply Pressure
Required		 Diameter Height Air Fitting
Ports
Down Stroke
CW		 Up Stroke
CCW
VC-NR-100-DA Double Acting 5.1 lbs 8.5 20.0 250°F -4°F 550 in lb 120 PSI 80-100 PSI 3.35" 5.83" 1/8" NPT
VC-NR-100-SR Spring Return 6.0 lbs 8.5 18.5 250°F -4°F 550 in lb 120 PSI 80-100 PSI 3.35" 5.83" 1/8" NPT

Additional Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
