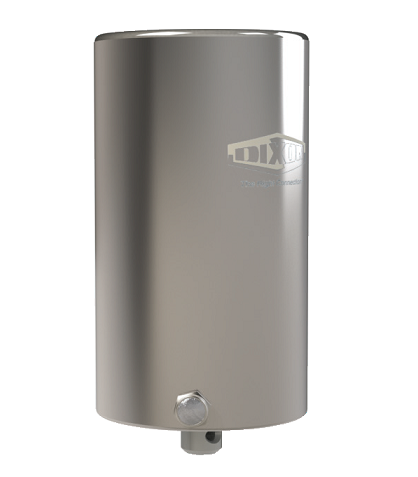

VC-NR-100-DA Dixon Valve VC Series Pneumatic Vertical Canister Actuator - Double Acing - Stainless Steel

VC-NR-100-DA Dixon Valve VC Series Pneumatic Vertical Canister Actuator - Double Acing - Stainless Steel

Sale price$468.30

Dixon Sanitary Fittings VC Series Pneumatic Vertical Stainless Steel Canister Actuator

VC Series pneumatic vertical canister actuators can be used on Dixon® B5101 and B5102 butterfly valves up to 4".
Buy More, Save More!
Quantity Price Each
5–14 $440.20
15–29 $398.06
30+ $351.23
Discounts applied in cart/checkout.

Product Data:
Features:
  • Excellent protection and corrosion resistance.
  • Tested to one million cycles.
  • 100% fully tested.
  • Backed by one year manufacturer's warranty.
  • Encapsulated spring set.
Part Number Description Weight Air Consumption
(in3)		 Max. Temp.
Rating		 Min. Temp.
Rating		 Output
Torque
(in-lb)		 Max. Pressure
Rating		 Supply Pressure
Required		 Diameter Height Air Fitting
Ports
Down Stroke
CW		 Up Stroke
CCW
VC-NR-100-DA Double Acting 5.1 lbs 8.5 20.0 250°F -4°F 550 in lb 120 PSI 80-100 PSI 3.35" 5.83" 1/8" NPT
VC-NR-100-SR Spring Return 6.0 lbs 8.5 18.5 250°F -4°F 550 in lb 120 PSI 80-100 PSI 3.35" 5.83" 1/8" NPT
