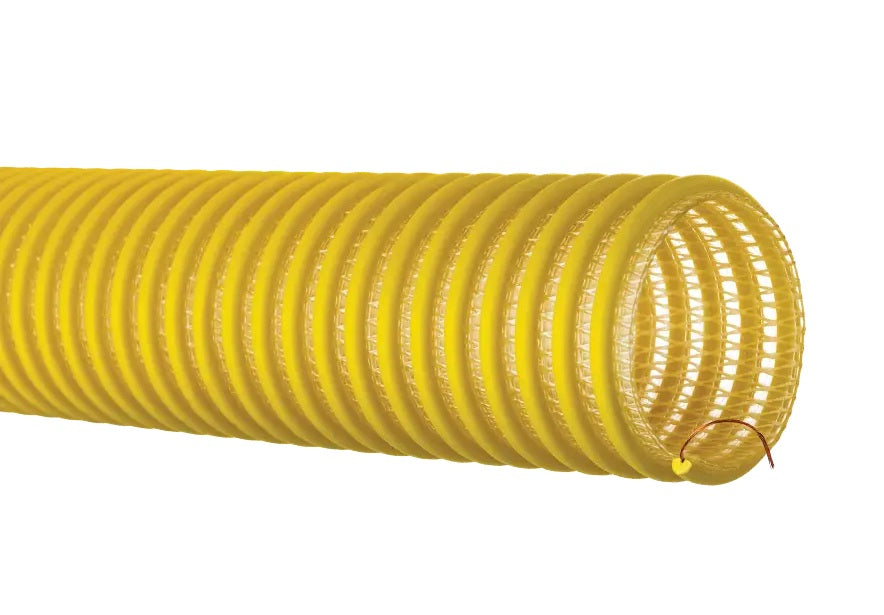

Vapor Recovery Hose
A lightweight, transparent polyurethane (TPU) hose built for fuel-vapor recovery at loading terminals and during delivery. Polyester reinforcement, a rigid PVC helix, and an embedded grounding wire deliver drop-hose durability with static protection, while staying flexible in subzero temperatures.
Transparent
See if fuel backs up into the system
Grounding Wire
Multi-strand wire dissipates static electricity
Cold-Flex™
Stays flexible in subzero temperatures
Biofuel Compatible
Gasoline, ethanol, diesel & biodiesel vapors
1
What is this product used for?
- Vapor recovery during terminal loading
- Vapor recovery for fuel delivery
2
What are the key specifications?
Polyurethane (TPU)
Polyester fabric, rigid PVC helix, embedded grounding wire
-40°F to +140°F (-40°C to +60°C) — application dependent
Meets ASTM D5798, D4806, or D6751 criteria
3
What are the main product features?
- Durable Reinforced Construction — Polyester reinforcement resists tearing from pulling or hanging; well suited for demanding terminal use.
- Lightweight — Delivers durability similar to a drop hose in a lighter-weight version.
- Cold-Flex™ Materials — Hose remains flexible in subzero temperatures.
- Transparent Construction — Provides visual confirmation if fuel backs up into the vapor recovery system.
- Grounding Wire — Multi-strand wire helps prevent the build-up of static electricity for added safety.
- Easy Slide Helix — Rigid helix protects the hose tube from cover wear and slides easily over rough surfaces.
- Biofuel Compatible — Designed to handle gasoline, ethanol, diesel, and biodiesel vapors (meeting ASTM D5798, D4806, or D6751 criteria).
- Non-permeable Construction — Won't swell or stiffen like conventional rubber hoses, for longer hose life and lower operating costs.
- Kuriyama Coupling Compatible — Hose ID is specifically designed for use with Kuriyama Couplings.
- Made in the USA — Manufactured in the United States.
4
Which sizes or configurations are available?
| Part Number | ID | OD | Working Pressure (PSI) | Vacuum (in Hg) | Min. Bend Radius (in) |
Length (ft) |
Weight (lbs/ft) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | 68°F | 104°F | 68°F | 104°F | ||||
| 3" Hose | |||||||||||
| VAPR303X60 | 3.03 | 77.0 | 3.75 | 95.3 | 55 | 45 | Full | 28 | 6 | 60 | 1.00 |
| VAPR303X100 | 3.03 | 77.0 | 3.75 | 95.3 | 55 | 45 | Full | 28 | 6 | 100 | 1.00 |
| 4" Hose | |||||||||||
| VAPR404X60 | 4.04 | 102.6 | 4.77 | 121.2 | 55 | 45 | Full | 28 | 8 | 60 | 1.65 |
| VAPR404X100 | 4.04 | 102.6 | 4.77 | 121.2 | 55 | 45 | Full | 28 | 8 | 100 | 1.65 |
How is this product sold?
Available in 60 ft and 100 ft lengths in both 3" and 4" sizes.
