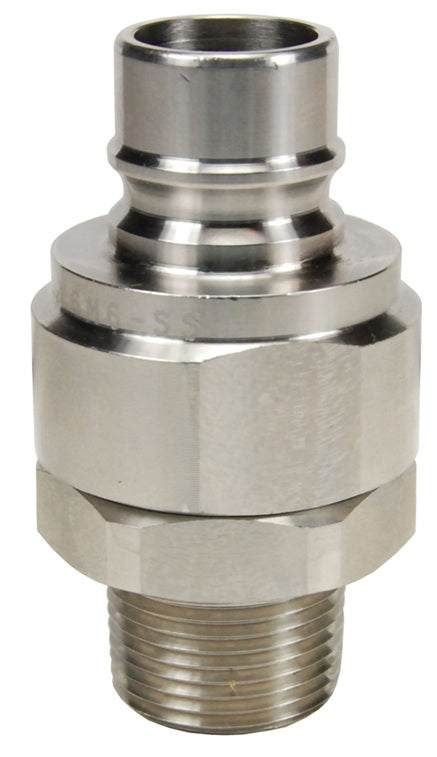

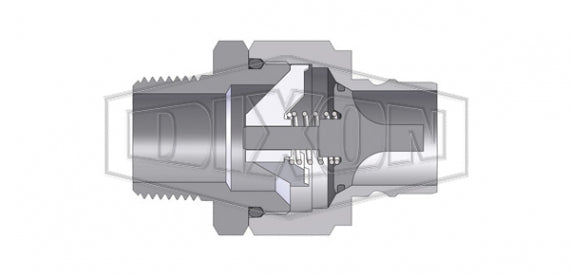

V6M6-SS by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | 3/4" Male NPTF x 3/4" MIL-C-51234 Valved | Plug | 316 Stainless Steel
Dixon Valve & Coupling
Hydraulic Coupling: V-Series MIL-C-51234 Valved Plug (Male Threads)
General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications.
Buy More, Save More! | |
Quantity | Price Each |
5–19 | $185.07 |
20–59 | $167.35 |
60+ | $147.66 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatibility & Interchange: |
|
---|---|
Construction: |
|
Additional Information: |
|
Rated Pressure Chart | V-Series MIL-C-51234 (Valved Connected) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Body Size |
Steel Coupler/Plug | Brass Coupler/Plug | 316 Stainless Coupler/Plug | |||||||||
Maximum Working | Burst | Maximum Working | Burst | Maximum Working | Burst | |||||||
1/4" | 6,500 PSI | 450 bar | 12,700 PSI | 876 bar | 2,250 PSI | 150 bar | 5,000 PSI | 345 bar | 5,000 PSI | 345 bar | 10,000 PSI | 700 bar |
3/8" | 4,500 PSI | 310 bar | 10,500 PSI | 700 bar | 2,250 PSI | 150 bar | 5,300 PSI | 350 bar | 4,000 PSI | 275 bar | 8,000 PSI | 550 bar |
1/2" | 4,000 PSI | 275 bar | 9,600 PSI | 650 bar | 2,000 PSI | 130 bar | 5,700 PSI | 390 bar | 3,750 PSI | 260 bar | 7,500 PSI | 500 bar |
3/4" | 3,500 PSI | 240 bar | 9,100 PSI | 600 bar | 2,000 PSI | 130 bar | 5,300 PSI | 350 bar | 2,000 PSI | 130 bar | 7,500 PSI | 500 bar |
1" | 2,000 PSI | 130 bar | 9,500 PSI | 650 bar | 1,750 PSI | 120 bar | 5,000 PSI | 345 bar | 2,000 PSI | 130 bar | 5,000 PSI | 345 bar |
1-1/4" | 1,750 PSI | 120 bar | 5,000 PSI | 345 bar | 350 PSI | 24 bar | 1,000 PSI | 70 bar | 1,500 PSI | 100 bar | 3,000 PSI | 200 bar |
1-1/2" | 1,500 PSI | 100 bar | 5,000 PSI | 345 bar | 350 PSI | 24 bar | 1,200 PSI | 80 bar | 1,500 PSI | 100 bar | 3,000 PSI | 200 bar |
2" | 1,500 PSI | 100 bar | 4,000 PSI | 275 bar | 400 PSI | 28 bar | 1,000 PSI | 70 bar | 500 PSI | 34 bar | 1,000 PSI | 70 bar |
Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation.
V-Series | MIL-C-51234 Valved Plug (Male Threads) | |||||||
---|---|---|---|---|---|---|---|
![]() |
|||||||
Part Number |
Coupling Type |
Body Size |
Threads | Material | Length | Max. OD |
Hex |
V2M1 | Plug/Male | 1/4" | 1/8" - 27 Male NPTF | Steel | 2.06" (52.3mm) |
0.97" (24.6mm) |
7/8" |
V2M2 | Plug/Male | 1/4" | 1/4" - 18 Male NPTF | Steel | 2.06" (52.3mm) |
0.97" (24.6mm) |
7/8" |
V2M2-B | Plug/Male | 1/4" | 1/4" - 18 Male NPTF | Brass | 2.06" (52.3mm) |
0.97" (24.6mm) |
7/8" |
V2M2-SS | Plug/Male | 1/4" | 1/4" - 18 Male NPTF | 316 Stainless | 2.06" (52.3mm) |
0.97" (24.6mm) |
7/8" |
V3M3 | Plug/Male | 3/8" | 3/8" - 18 Male NPTF | Steel | 2.25" (57.2mm) |
1.10" (27.9mm) |
1" |
V3M3-B | Plug/Male | 3/8" | 3/8" - 18 Male NPTF | Brass | 2.25" (57.2mm) |
1.10" (27.9mm) |
1" |
V3M3-SS | Plug/Male | 3/8" | 3/8" - 18 Male NPTF | 316 Stainless | 2.25" (57.2mm) |
1.10" (27.9mm) |
1" |
V4M4 | Plug/Male | 1/2" | 1/2" - 14 Male NPTF | Steel | 2.40" (61.0mm) |
1.31" (33.3mm) |
1-3/16" |
V4M4-B | Plug/Male | 1/2" | 1/2" - 14 Male NPTF | Brass | 2.40" (61.0mm) |
1.31" (33.3mm) |
1-3/16" |
V4M4-SS | Plug/Male | 1/2" | 1/2" - 14 Male NPTF | 316 Stainless | 2.40" (61.0mm) |
1.31" (33.3mm) |
1-3/16" |
V6M6 | Plug/Male | 3/4" | 3/4" - 14 Male NPTF | Steel | 2.91" (73.9mm) |
1.65" (41.9mm) |
1-1/2" |
V6M6-B | Plug/Male | 3/4" | 3/4" - 14 Male NPTF | Brass | 2.91" (73.9mm) |
1.65" (41.9mm) |
1-1/2" |
V6M6-SS | Plug/Male | 3/4" | 3/4" - 14 Male NPTF | 316 Stainless | 2.91" (73.9mm) |
1.65" (41.9mm) |
1-1/2" |
V8M8 | Plug/Male | 1" | 1" - 11-1/2 Male NPTF | Steel | 3.22" (81.8mm) |
2.06" (52.3mm) |
1-7/8" |
V8M8-B | Plug/Male | 1" | 1" - 11-1/2 Male NPTF | Brass | 3.22" (81.8mm) |
2.06" (52.3mm) |
1-7/8" |
V8M8-SS | Plug/Male | 1" | 1" - 11-1/2 Male NPTF | 316 Stainless | 3.22" (81.8mm) |
2.06" (52.3mm) |
1-7/8" |
V10M10 | Plug/Male | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | Steel | 3.46" (87.9mm) |
2.19" (55.6mm) |
2" |
V10M10-B | Plug/Male | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | Brass | 3.46" (87.9mm) |
2.19" (55.6mm) |
2" |
V10M10-SS | Plug/Male | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | 316 Stainless | 3.46" (87.9mm) |
2.19" (55.6mm) |
2" |
V12M12 | Plug/Male | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | Steel | 3.85" (97.8mm) |
2.74" (69.6mm) |
2-1/2" |
V12M12-B | Plug/Male | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | Brass | 3.85" (97.8mm) |
2.74" (69.6mm) |
2-1/2" |
V12M12-SS | Plug/Male | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | 316 Stainless | 3.85" (97.8mm) |
2.74" (69.6mm) |
2-1/2" |
V16M16 | Plug/Male | 2" | 2" - 11-1/2 Male NPTF | Steel | 4.34" (110.2mm) |
3.83" (97.3mm) |
3-1/2" |
V16M16-B | Plug/Male | 2" | 2" - 11-1/2 Male NPTF | Brass | 4.34" (110.2mm) |
3.83" (97.3mm) |
3-1/2" |
V16M16-SS | Plug/Male | 2" | 2" - 11-1/2 Male NPTF | 316 Stainless | 4.34" (110.2mm) |
3.83" (97.3mm) |
3-1/2" |
V-Series | MIL-C-51234 Valved Coupler (Male Threads) | |||||||
---|---|---|---|---|---|---|---|
![]() |
|||||||
Part Number |
Coupling Type |
Body Size |
Threads | Material | Length | Max. OD |
Hex |
2VM1 | Socket/Female | 1/4" | 1/8" - 27 Male NPTF | Steel | 2.12" (53.8mm) |
0.99" (25.1mm) |
7/8" |
2VM2 | Socket/Female | 1/4" | 1/4" - 18 Male NPTF | Steel | 2.12" (53.8mm) |
0.99" (25.1mm) |
7/8" |
2VM2-B | Socket/Female | 1/4" | 1/4" - 18 Male NPTF | Brass | 2.12" (53.8mm) |
0.99" (25.1mm) |
7/8" |
2VM2-SS | Socket/Female | 1/4" | 1/4" - 18 Male NPTF | 316 Stainless | 2.12" (53.8mm) |
0.99" (25.1mm) |
7/8" |
3VM3 | Socket/Female | 3/8" | 3/8" - 18 Male NPTF | Steel | 2.32" (58.9mm) |
1.18" (30.0mm) |
1" |
3VM3-B | Socket/Female | 3/8" | 3/8" - 18 Male NPTF | Brass | 2.32" (58.9mm) |
1.18" (30.0mm) |
1" |
3VM3-SS | Socket/Female | 3/8" | 3/8" - 18 Male NPTF | 316 Stainless | 2.32" (58.9mm) |
1.18" (30.0mm) |
1" |
4VM4 | Socket/Female | 1/2" | 1/2" - 14 Male NPTF | Steel | 2.54" (64.5mm) |
1.36" (34.5mm) |
1-3/16" |
4VM4-B | Socket/Female | 1/2" | 1/2" - 14 Male NPTF | Brass | 2.54" (64.5mm) |
1.36" (34.5mm) |
1-3/16" |
4VM4-SS | Socket/Female | 1/2" | 1/2" - 14 Male NPTF | 316 Stainless | 2.54" (64.5mm) |
1.36" (34.5mm) |
1-3/16" |
6VM6 | Socket/Female | 3/4" | 3/4" - 14 Male NPTF | Steel | 3.07" (78.0mm) |
1.67" (42.4mm) |
1-1/2" |
6VM6-B | Socket/Female | 3/4" | 3/4" - 14 Male NPTF | Brass | 3.07" (78.0mm) |
1.67" (42.4mm) |
1-1/2" |
6VM6-SS | Socket/Female | 3/4" | 3/4" - 14 Male NPTF | 316 Stainless | 3.07" (78.0mm) |
1.67" (42.4mm) |
1-1/2" |
8VM8 | Socket/Female | 1" | 1" - 11-1/2 Male NPTF | Steel | 3.32" (84.3mm) |
2.06" (52.3mm) |
1-7/8" |
8VM8-B | Socket/Female | 1" | 1" - 11-1/2 Male NPTF | Brass | 3.32" (84.3mm) |
2.06" (52.3mm) |
1-7/8" |
8VM8-SS | Socket/Female | 1" | 1" - 11-1/2 Male NPTF | 316 Stainless | 3.32" (84.3mm) |
2.06" (52.3mm) |
1-7/8" |
10VM10 | Socket/Female | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | Steel | 3.59" (91.2mm) |
2.19" (55.6mm) |
2" |
10VM10-B | Socket/Female | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | Brass | 3.59" (91.2mm) |
2.19" (55.6mm) |
2" |
10VM10-SS | Socket/Female | 1-1/4" | 1-1/4" - 11-1/2 Male NPTF | 316 Stainless | 3.59" (91.2mm) |
2.19" (55.6mm) |
2" |
12VM12 | Socket/Female | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | Steel | 4.01" (101.9mm) |
2.74" (69.6mm) |
2-1/2" |
12VM12-B | Socket/Female | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | Brass | 4.01" (101.9mm) |
2.74" (69.6mm) |
2-1/2" |
12VM12-SS | Socket/Female | 1-1/2" | 1-1/2" - 11-1/2 Male NPTF | 316 Stainless | 4.01" (101.9mm) |
2.74" (69.6mm) |
2-1/2" |
16VM16 | Socket/Female | 2" | 2" - 11-1/2 Male NPTF | Steel | 4.54" (115.3mm) |
3.83" (97.3mm) |
3-1/2" |
16VM16-B | Socket/Female | 2" | 2" - 11-1/2 Male NPTF | Brass | 4.54" (115.3mm) |
3.83" (97.3mm) |
3-1/2" |
16VM16-SS | Socket/Female | 2" | 2" - 11-1/2 Male NPTF | 316 Stainless | 4.54" (115.3mm) |
3.83" (97.3mm) |
3-1/2" |
