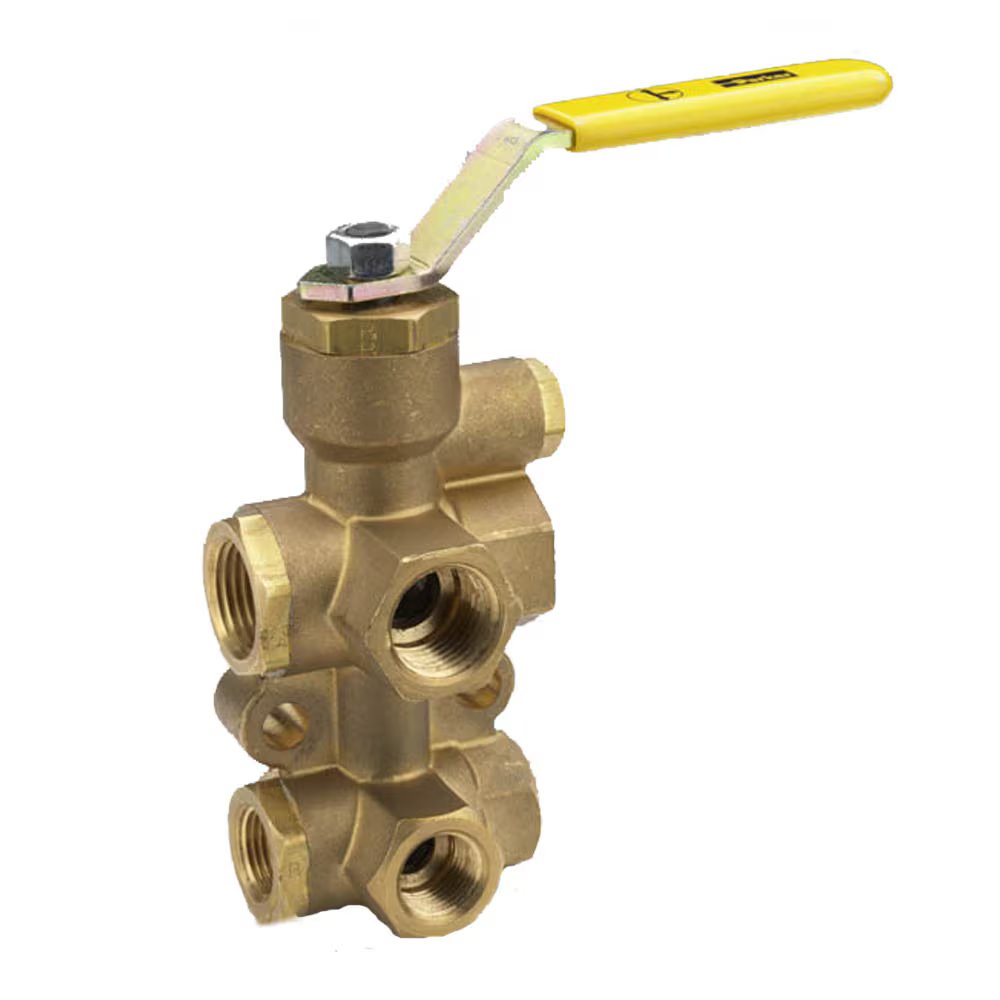

V633P-8-6 by Parker | Ball Valves | 1/2" Female Pipe Thread Top Port x 3/8" PTF Bottom Port | 1-1/16" Hex (B) | 15/16" Hex (C) | 5.43" Length | Straight | Brass

V633P-8-6 by Parker | Ball Valves | 1/2" Female Pipe Thread Top Port x 3/8" PTF Bottom Port | 1-1/16" Hex (B) | 15/16" Hex (C) | 5.43" Length | Straight | Brass

Sale price$257.50

by Parker Hannifin
Ball Valves Brass Series 600:Six Port Diversion Brass Valve V633P
Buy More, Save More!
Quantity Price Each
5–14 $242.05
15–29 $218.88
30+ $193.13
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
  • Chrome-Plated Brass
  • Steel
Seal Material(s):
  • PTFE
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon O-rings
  • Steel handle
Style:
  • V-Valve
Type:
  • 600-Three Position
  • 633-Two Position
Material:
  • P-Brass
Series 600 (Left) & Series 633 (Right) Handle Positions
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 150 PSI (10.3 bar) WOG, Cold Non-Shock
  • Vacuum Service to 29 Inches Hg
Part Number Pipe Thread
Top Port
SPL Short		 Bottom Port (PTF) Hex (B) Hex (C) D1 Flow D2 Flow E H L M N P R S T U V W X
V633P-8-6 1/2" 3/8" 1-1/16" 15/16" .500" .375" .34" 3.96" 4.56" 2.20" 5.43" 2.03" 3.98" 2.99" 1.91" .73" .98" 1.12" 1.31"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
