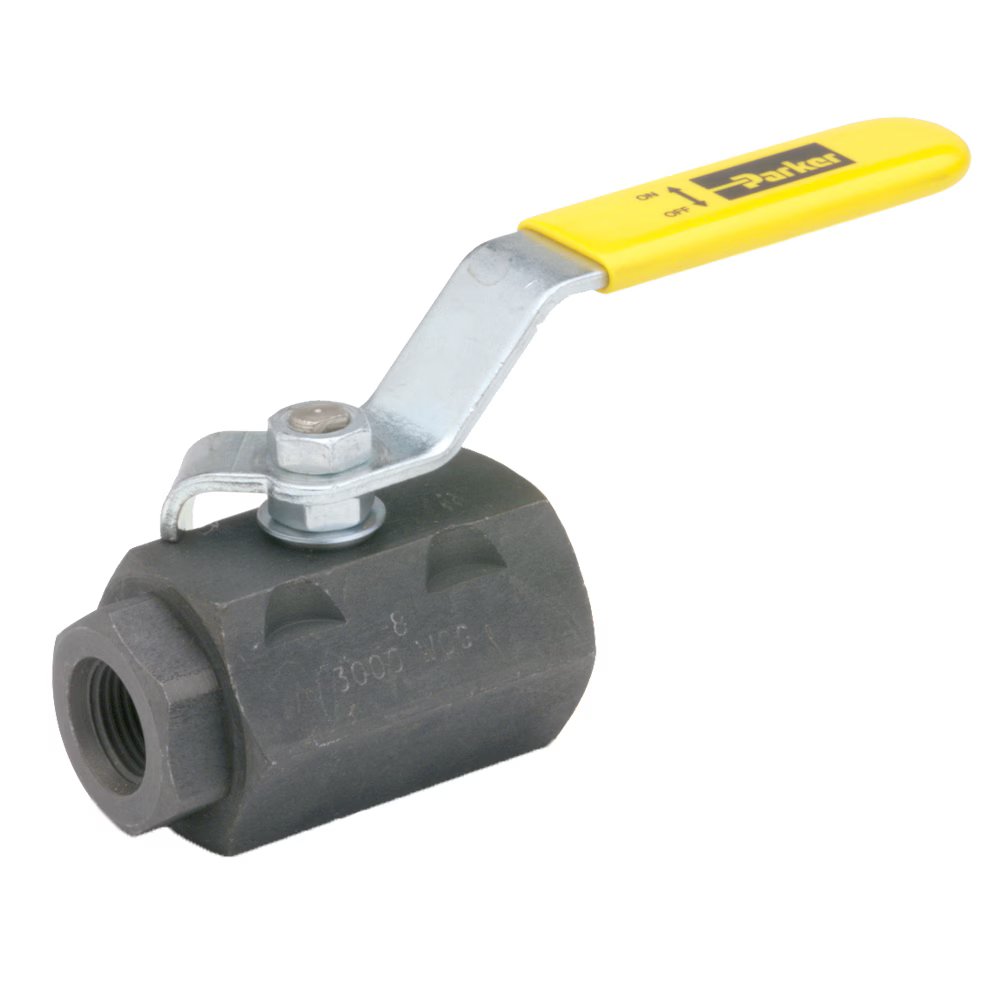

V506CS-6 by Parker | Ball Valve | 9/16" Female Thread | 1-1/16" Hex (B) | 15/16" (C) | 4.78" Length | Straight | Carbon Steel

V506CS-6 by Parker | Ball Valve | 9/16" Female Thread | 1-1/16" Hex (B) | 15/16" (C) | 4.78" Length | Straight | Carbon Steel

Sale price$94.30

by Parker Hannifin
Ball Valves Carbon Steel Series 506CS:Female-Female SAE Straight Thread Ports V506CS
Buy More, Save More!
Quantity Price Each
20–29 $88.64
30–59 $80.16
60+ $70.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • V506CS Series
Shape:

Straight

Ends Configuration:
  • 9/16in Female NPT
  • 9/16in Female NPT
  • Some Ends Match
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
Type:
  • 506-Female/Female SAE Straight Thread Ports
Material:
  • CS-Carbon Steel
Specification:
Temperature Range: -20° to +425° F (-28.8° to +218.3° C)
Pressure Range:
  • 3000 PSI (206.8 bar)
  • Saturated Steam up to 150 PSI (10.3 bar)
Part Number Straight Thread Hex (B) Hex (C) H L M N Flow Diameter (D)
V506CS-4 7/16"-20 1-1/16" 15/16" 3.78" 1.00" 2.00" 1.63" .400"
V506CS-6 9/16"-18 1-1/16" 15/16" 3.78" 1.00" 2.00" 1.63" .400"
V506CS-8 3/4"-16 1-5/8" 1-1/4" 4.78" 1.32" 2.84" 2.16" .500"
V506CS-12 1-1/16"-12 1-7/8" 1-5/8" 4.78" 1.66" 3.71" 2.35" .750"
V506CS-16 1-5/16"-12 2-1/2" 2-1/8" 6.10" 1.88" 4.15" 2.85" 1.000"
