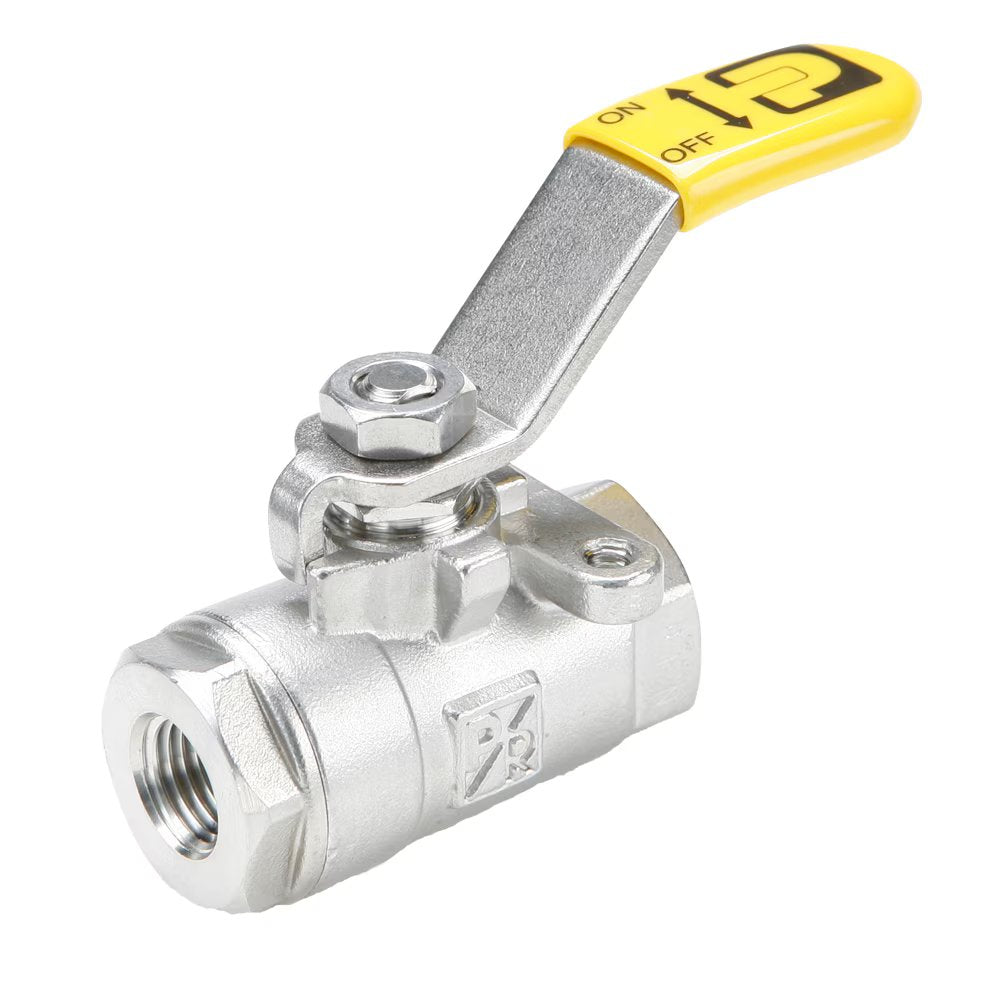

V502SS-8-20 by Parker | Ball Valve | 1/2" Female NPT Thread | 1-1/16" Hex (B/C) | 3.37" Length | Straight | Stainless Steel

V502SS-8-20 by Parker | Ball Valve | 1/2" Female NPT Thread | 1-1/16" Hex (B/C) | 3.37" Length | Straight | Stainless Steel

Sale price$112.66

by Parker Hannifin
Ball Valves Stainless Steel Series 502SS:Short Handle, Female Pipe Ends, Panel Mount V502SS-X-20
Buy More, Save More!
Quantity Price Each
20–29 $105.90
30–59 $95.76
60+ $84.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • V502SS Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Product Features:
  • CF-8M Stainless Steel body
  • Stainless Steel ball
  • PTFE Seats/Seals
  • Stainless Steel handle
  • Silicone Free
Style:
  • V-Valve
  • VP-Valve, Padlocking
Type:
  • 502-Panel Mount Female/Female NPT Ports
Material:
  • SS – Stainless Steel
Options:
  • 20-Short Handle
  • 21-Oval Handle
  • 35-Welded Retainer Nut
Specification:
Temperature Range: 0° to +400° F (-17.7° to +204.4° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Vacuum service 28 inches Hg
Approvals: Meets material requirements of NACE MR-01-75
Part Number Pipe Thread (NPT) Hex (B / C) G H L M N Flow Diameter (D)
V502SS-4-20 1/4" 15/16" 1.12" 2.28" 3.32" 2.07" 2.53" .375"
V502SS-6-20 3/8" 15/16" 1.12" 2.28" 3.32" 2.07" 2.53" .375"
V502SS-8-20 1/4" 1-1/16" 1.12" 2.22" 3.37" 2.25" 2.63" .500"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
