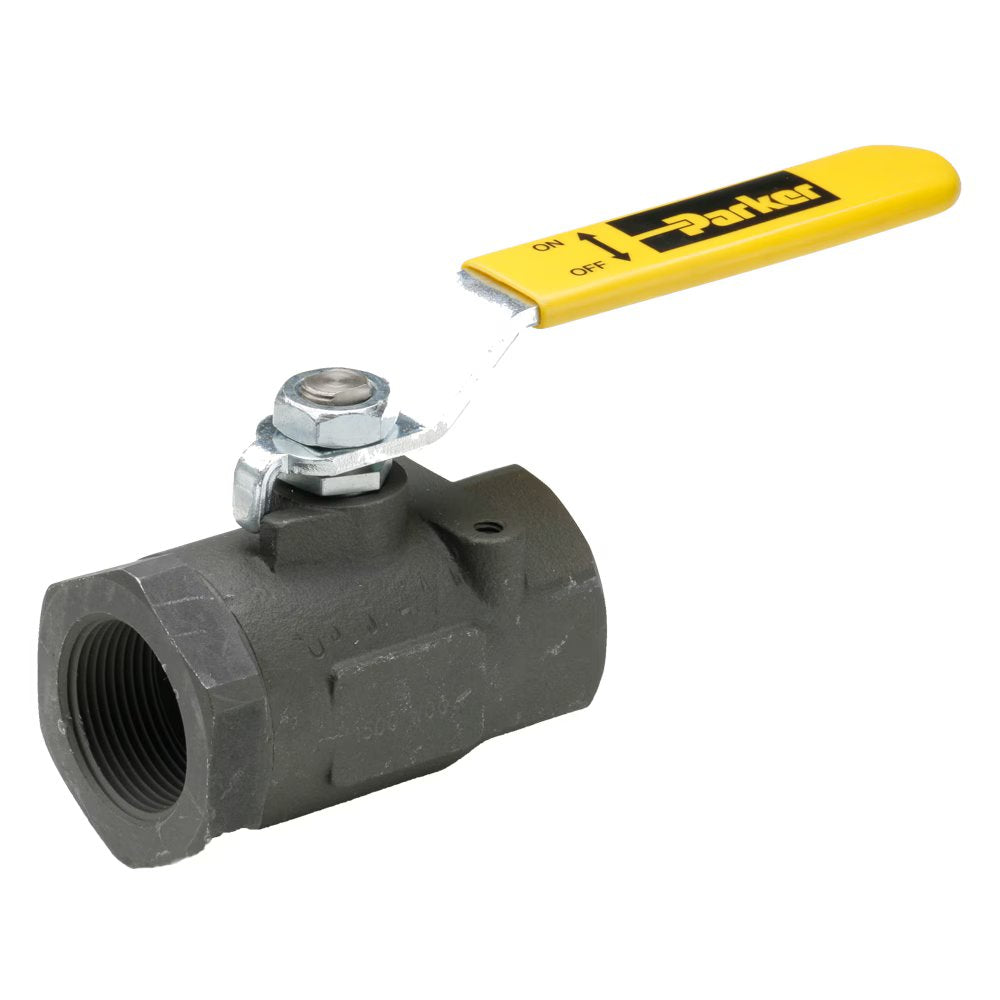

V502CS-32 by Parker | Ball Valves | 2" Female Pipe Thread | 2-3/4" Hex (B) | 3" (C) | 10.02" Length | Straight | Carbon Steel

V502CS-32 by Parker | Ball Valves | 2" Female Pipe Thread | 2-3/4" Hex (B) | 3" (C) | 10.02" Length | Straight | Carbon Steel

Sale price$243.86
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Carbon Steel Phosphate Coated body
  • Steel ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 500-Female/Female
  • 502-Female/Female
Material:
  • CS-Carbon Steel
Specification:
Temperature Range: -20° to +425° F (-28.8° to +218.3° C)
Pressure Range:
  • 1/4” – 1”: 2000 PSI (137.8 bar)
  • 1 1/4” – 2”: 1500 PSI (103.4 bar)
  • Saturated Steam up to 150 PSI (10.3 bar)
Part Number Pipe Thread Hex (B) Hex (C) F G H L M N Flow Diameter (D)
V502CS-20 1-1/4" 2" 2-1/4" .94" 1.50" 6.10" 1.87" 3.80" 2.76" 1.000"
V502CS-24 1-1/2" 2-5/16" 2-1/2" .94" 1.50" 6.10" 2.27" 4.55" 2.98" 1.250"
V502CS-32 2" 2-3/4" 3" 1.03" 2.00" 8.60" 2.42" 4.83" 3.54" 1.500"

Additional Product Data:

Series:
  • V502CS Series
Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
