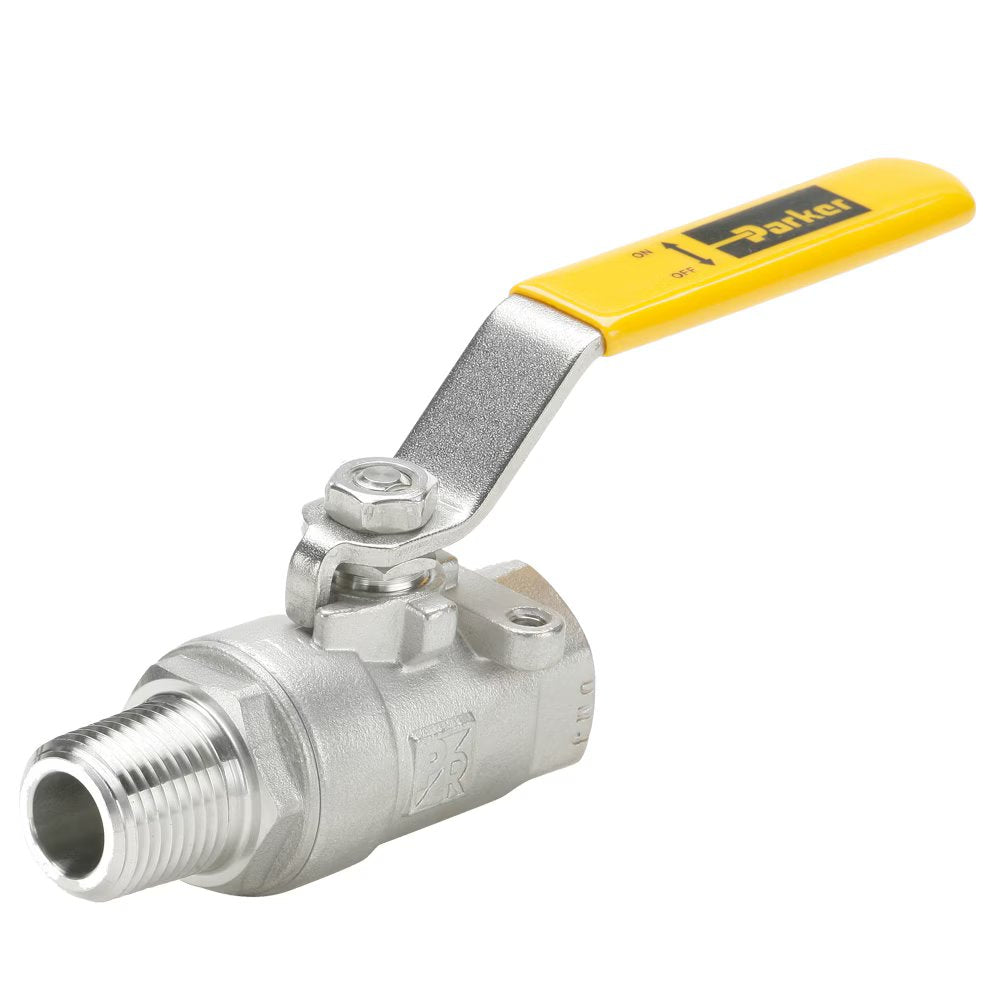

V501SS-16 by Parker | Ball Valve | 3/4" Male-Female NPT Thread | 1-5/8" Hex | 7.48" Length | Straight | Stainless Steel
by Parker Hannifin
Ball Valves Stainless Steel Series 501SS:Male-Female Pipe Ends V501SS
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $220.22 |
| 30–59 | $199.14 |
| 60+ | $175.71 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Style: |
|
| Type: |
|
| Material: |
|
| Options: |
|
Specification: |
| Temperature Range: | 0° to +400° F (-17.7° to +204.4° C) |
| Pressure Range: |
|
| Approvals: | Meets material requirements of NACE MR-01-75 |
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Pipe Thread (NPT) | Hex | F | G | L | M | N | Flow Diameter (D) |
| V501SS-4 | 1/4" | 15/16" | .50" | 1.12" | 5.60" | 2.65" | 1.97" | .280" |
| V501SS-6 | 3/8" | 15/16" | .50" | 1.12" | 5.60" | 2.65" | 1.97" | .375" |
| V501SS-8 | 1/2" | 1-1/16" | .50" | 1.12" | 5.85" | 3.05" | 2.00" | .500" |
| V501SS-12 | 3/4" | 1-3/8" | .88" | 1.37" | 7.27" | 3.85" | 2.55" | .720" |
| V501SS-16 | 1" | 1-5/8" | .88" | 1.37" | 7.48" | 4.25" | 2.68" | .940" |
