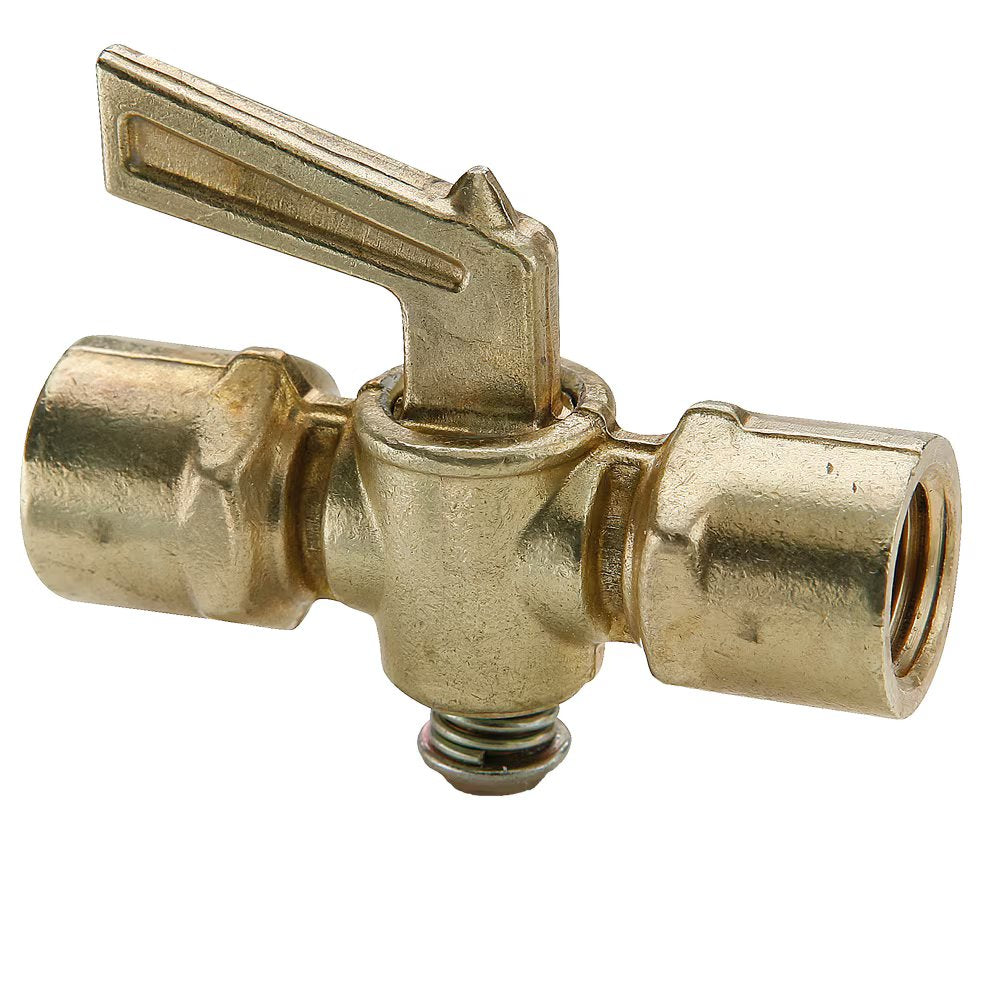

V403P-2-2 by Parker | Ground Plug Shutoff | 1/8" Female Pipe Thread x 1/8" Female Pipe Thread | 1.90" Length | Straight | Brass | Pack of 10

V403P-2-2 by Parker | Ground Plug Shutoff | 1/8" Female Pipe Thread x 1/8" Female Pipe Thread | 1.90" Length | Straight | Brass | Pack of 10

Sale price$378.87

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V403P Female Pipe to Female Pipe

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $356.14
15–29 $322.04
30+ $284.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • V403P Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female NPT
  • 1/8in Female NPT
  • Some Ends Match
Product Features:
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C)
  • V406P/V407P: -40° to +180° F ( -40° to +82.2° C)
  • Drain Cocks: -65° to +250° F (-53.8° to +121.1° C)
  • DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:
  • Ground Plug Shutoff: 30 PSI (2.0 bar)
  • Drain Cocks: Up to 150 PSI (10.3 bar)
Part Number Female Pipe Thread L M Flow Diameter (D)
V403P-2-2 1/8" 1.90" 1.51" .218"
V403P-4-4 1/4" 1.90" 1.65" .188"
V403P-6-6* 3/8" 2.25" 2.00" .250"

*Made from extruded bar stock

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
