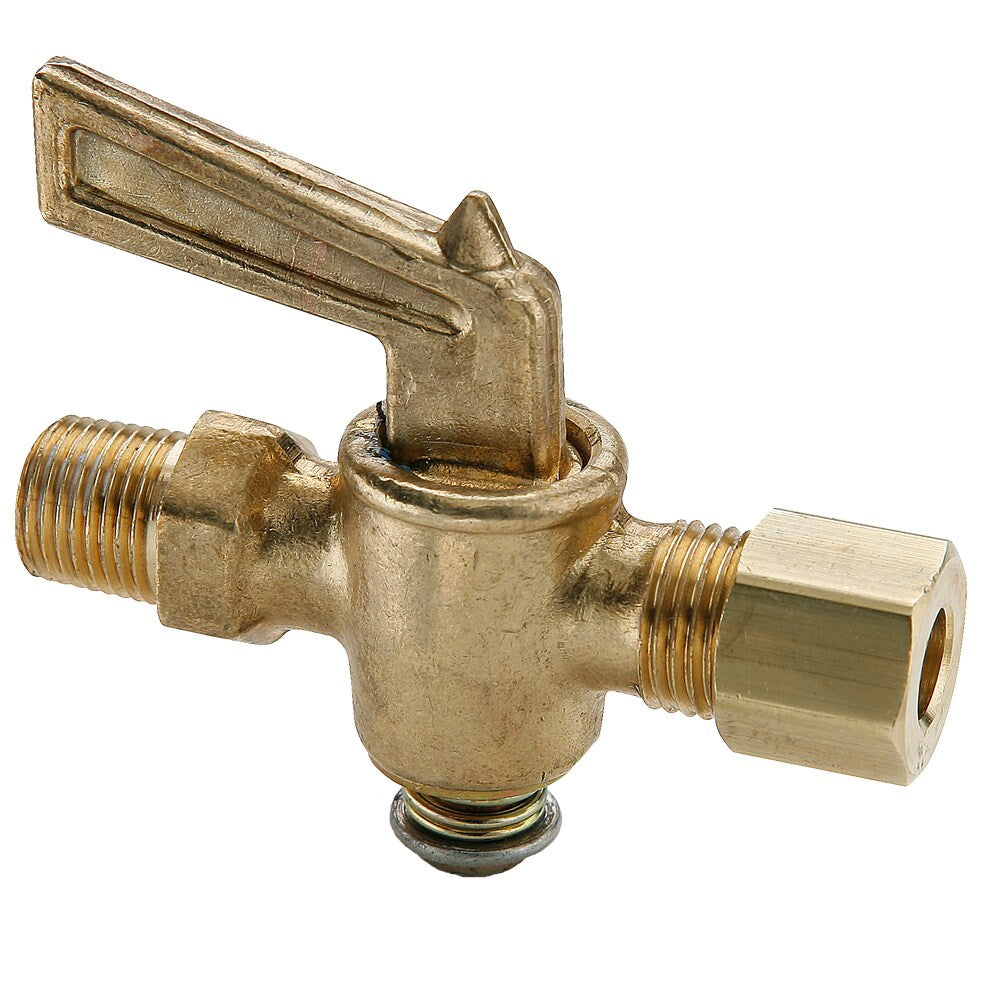

V304C-6-4 by Parker | Ground Plug Shutoff | 3/8" Tube Size Compression x 1/4" Male Pipe Thread | 2.24" Length | Straight | Brass | Pack of 10
Parker Fluid Connections Division

V304C-6-4 by Parker | Ground Plug Shutoff | 3/8" Tube Size Compression x 1/4" Male Pipe Thread | 2.24" Length | Straight | Brass | Pack of 10

Sale price$667.64

by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V304C/V304CA Compression to Male Pipe

Package Quantity: 10 Units

Product Data:

Series:
  • V304C Series
Shape:

Straight

Ends Configuration:
  • 3/8in Tube Compression
  • 1/4in Male NPT
Product Features:
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • Ground Plug Shutoff: 32° to +125° F (0° to +51.6° C)
  • V406P/V407P: -40° to +180° F ( -40° to +82.2° C)
  • Drain Cocks: -65° to +250° F (-53.8° to +121.1° C)
  • DCR601: -30° to +250° F (-34.4° to +121.1° C)
Pressure Range:
  • Ground Plug Shutoff: 30 PSI (2.0 bar)
  • Drain Cocks: Up to 150 PSI (10.3 bar)
Part Number Tube Size Pipe Thread L M Flow Diameter (D)
V304C-4-2 1/4" 1/8" 1.90" 2.29" .188"
V304CA-4-2 1/4" 1/8" 1.88" 2.00" .188"
V304C-4-4 1/4" 1/4" 1.90" 2.15" .188"
V304C-6-4 3/8" 1/4" 1.83" 2.24" .218"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
