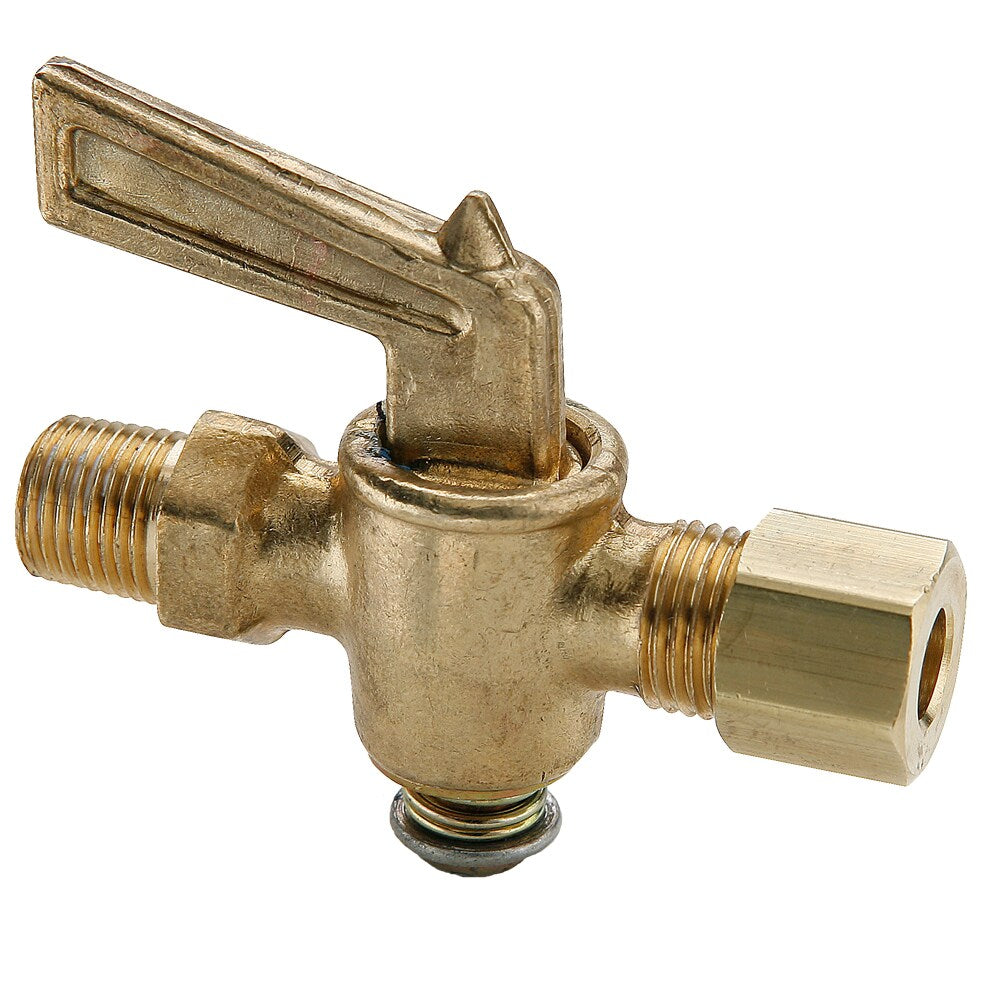

V304C-6-4 by Parker | Ground Plug Shutoff | 3/8" Tube Size Compression x 1/4" Male Pipe Thread | 2.24" Length | Straight | Brass | Pack of 10
by Parker Hannifin
Drain Cocks/Ground Plug Shutoff:Ground Plug Shutoff V304C/V304CA Compression to Male Pipe
Package Quantity: 10 Units
Quantity | Price Each |
5–14 | $508.72 |
15–29 | $481.94 |
30+ | $428.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Product Features: |
|
---|---|
Compatible Fluids: |
|
Specification: | |
Temperature Range: |
|
Pressure Range: |
|
![]() |
|||||
---|---|---|---|---|---|
Part Number | Tube Size | Pipe Thread | L | M | Flow Diameter (D) |
V304C-4-2 | 1/4" | 1/8" | 1.90" | 2.29" | .188" |
V304CA-4-2 | 1/4" | 1/8" | 1.88" | 2.00" | .188" |
V304C-4-4 | 1/4" | 1/4" | 1.90" | 2.15" | .188" |
V304C-6-4 | 3/8" | 1/4" | 1.83" | 2.24" | .218" |
