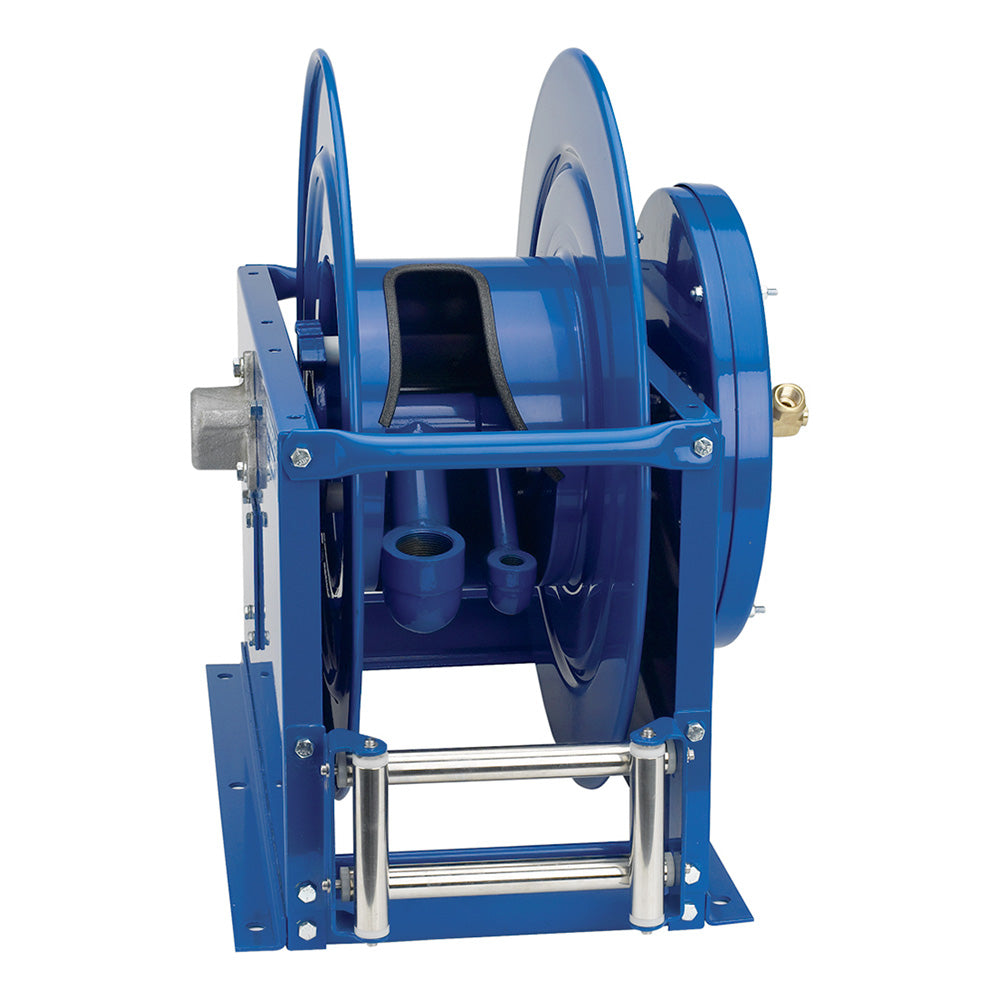

V-SLPL-825 by Coxreels | V Series | Spring Driven Vacuum Hose Reel | 1-1/2" Hose ID | Steel | 25ft Capacity, Hose Not Included
Coxreels V Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for air and vacuum. Made in the U.S.A.
1
What is this product used for?
- Air
- Vacuum
2
What are the key specifications?
Steel, box-frame
Brass 90° full-flow with Nitrile seals
1 1/2" FNPT
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Vehicle Mounting
Ø0.56" mounting holes
3
What are the main product features?
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box Style Frame Design — Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
- Oulet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- Steel Rollers — Heavy duty 1" stainless steel pinch-proof rollers.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Reel W × H × L (in) |
|---|---|---|---|
| V-SLPL-825 | 1-1/2" | 25 ft | 17.5 × 24.5 × 26.375 |
| VA-DLPL-825 | 1-1/2" | 25 ft | 20.125 × 24.5 × 26.375 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Hose end — fit every model | ||
| 20216 | Hose/cord stop | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BZX is -GZX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BZX | Less swivel |
| Other | |
| -BXC | Constant Tension |
7
Where can I find product documents?
V Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
