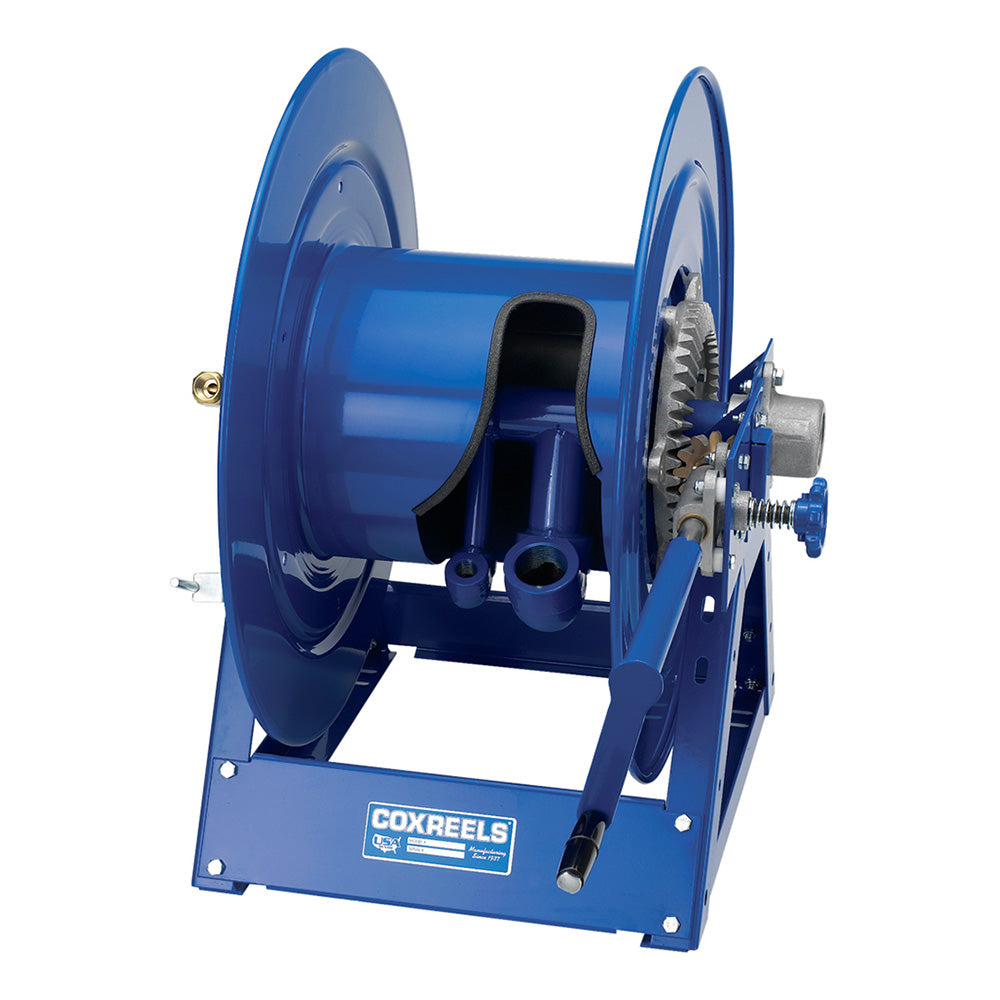

V-1175-850-C by Coxreels | V1175 Series | Hand Crank Vacuum Hose Reel | 1-1/2" Hose ID, 1-1/2" FNPT Inlet | Steel | 50ft Capacity, Hose Not Included
Coxreels V1175 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for vacuum and air. Made in the U.S.A.
1
What is this product used for?
- Vacuum
- Air
2
What are the key specifications?
Steel, A-frame
CPC™ powder coat
Nickel Plated Steel 90° full-flow with Nitrile seals
250°F
0.5 SLOT
3
What are the main product features?
- Vacuum Swivel — Designed to fit 1-1/2" 29HG vacuum hose.
- "A" Frame — Sturdy one piece, all CNC robotically welded 1/4" steel "A" frame base with double dupported axle, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Inlet | Reel W × H × L (in) |
|---|---|---|---|---|
| V-1175-850 | 1-1/2 NPT | 50 ft | 1 1/2" NPT FNPT | 23.625 × 18 × 17 |
| V-1175-850-C | 1-1/2 NPT | 50 ft | 1 1/2" NPT FNPT | 22 × 26.125 × 24 |
| VA-1175-850 | 1-1/2 NPT | 50 ft | 1-1/2" FNPT | 21.75 × 26.125 × 24 |
| VA-1175-850-C | 1-1/2 NPT | 50 ft | 1-1/2" FNPT | 21.75 × 26.125 × 24 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
7
Where can I find product documents?
V1175 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
How is this product sold?
Each.
