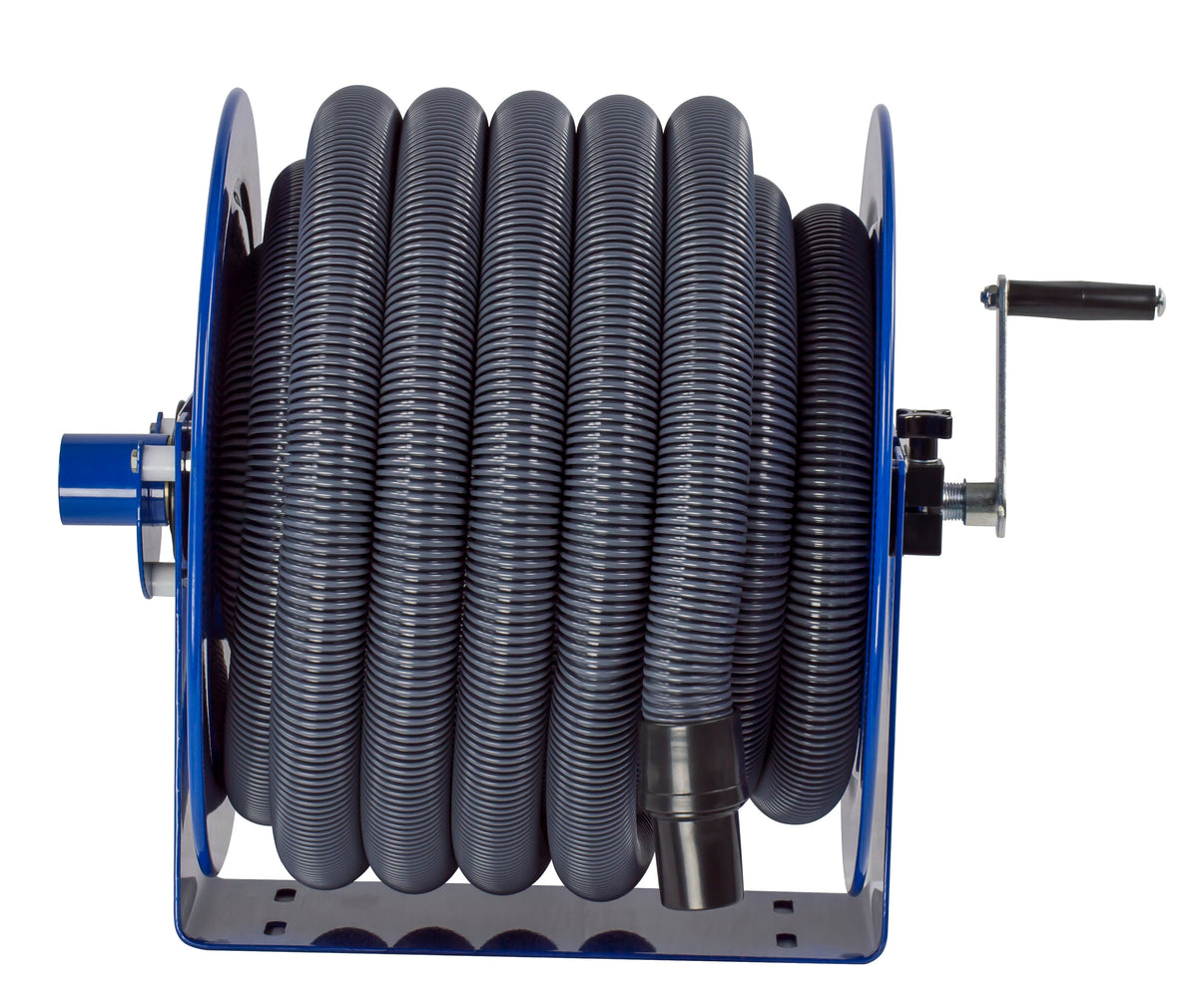

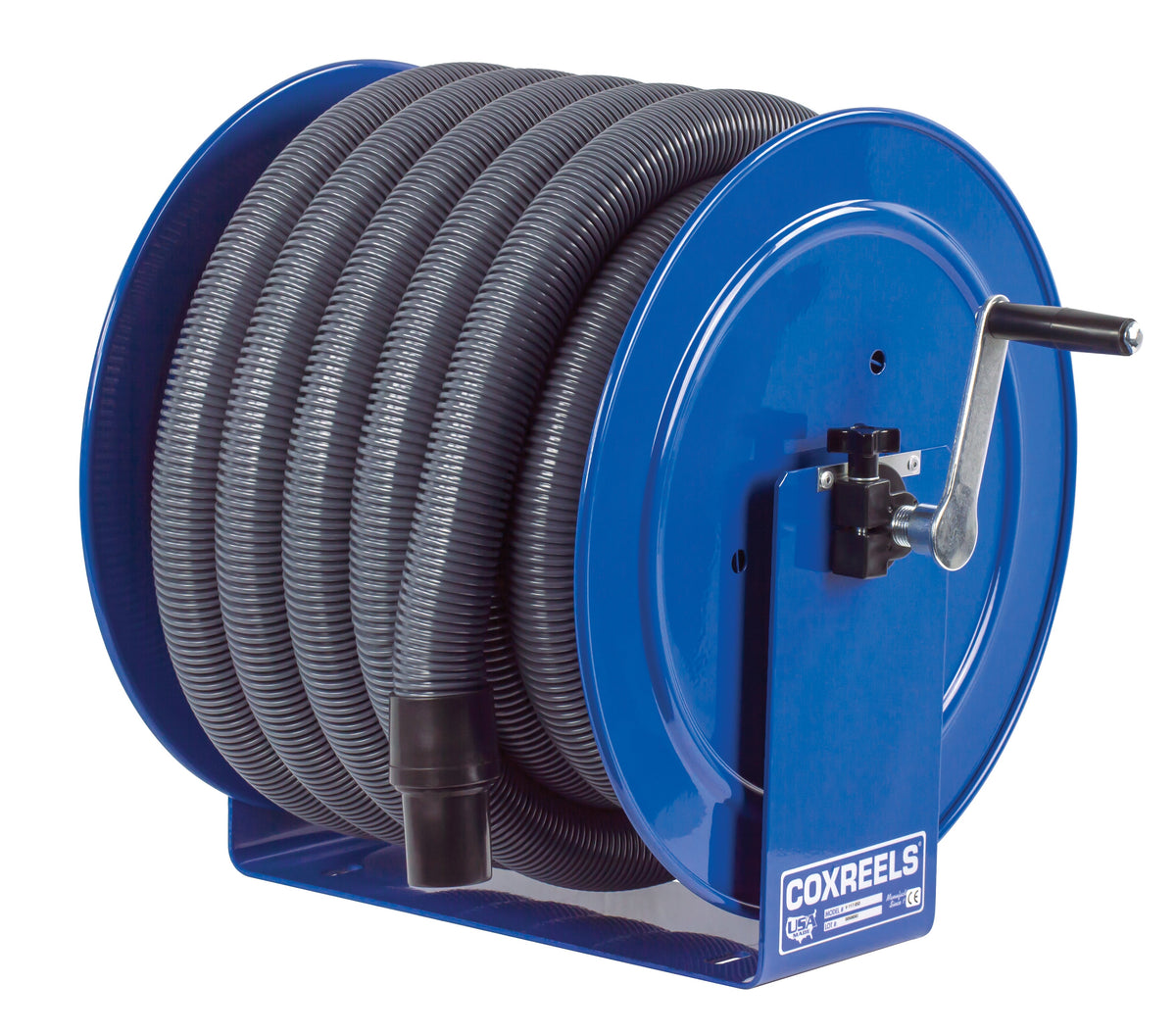

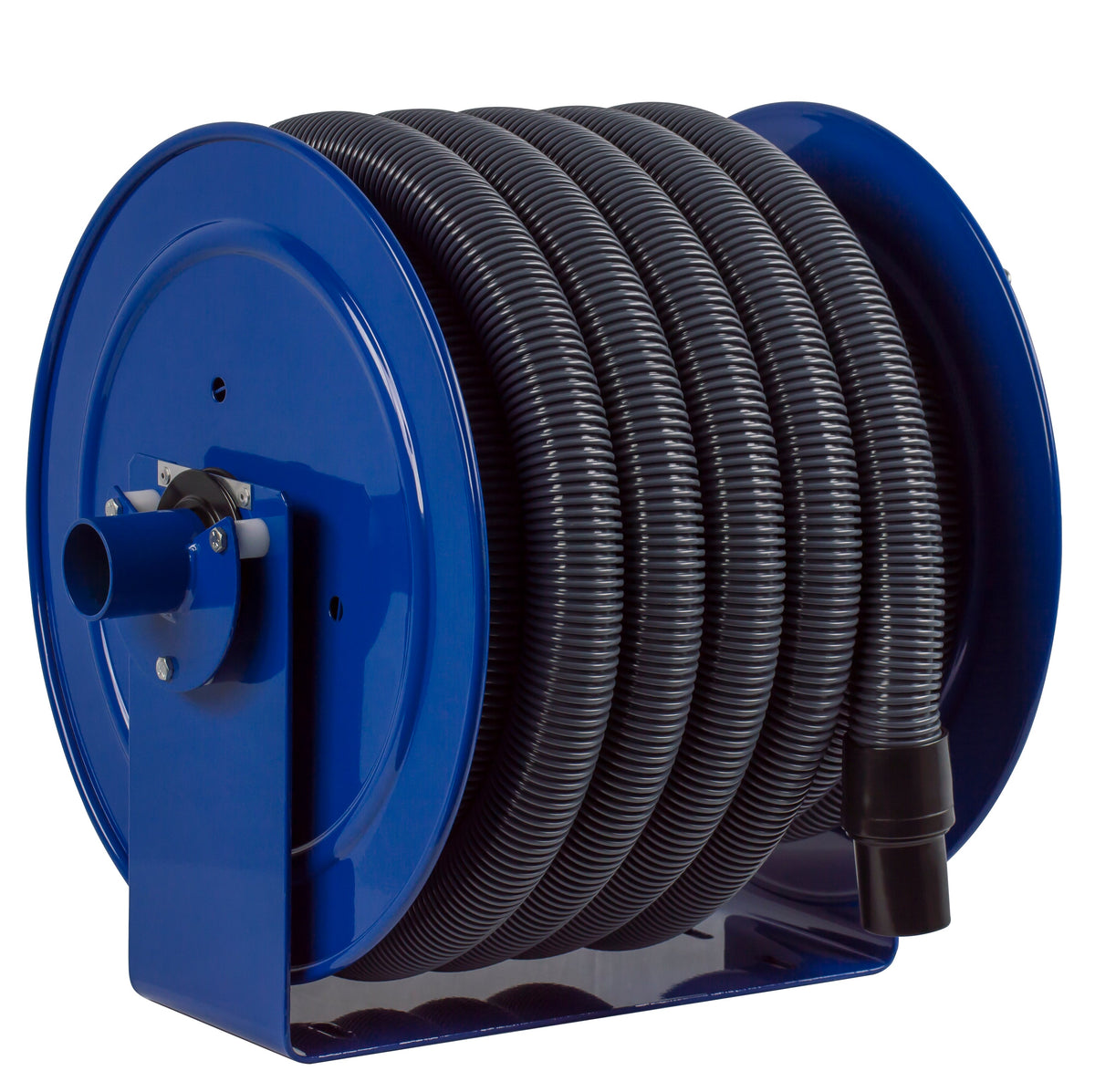

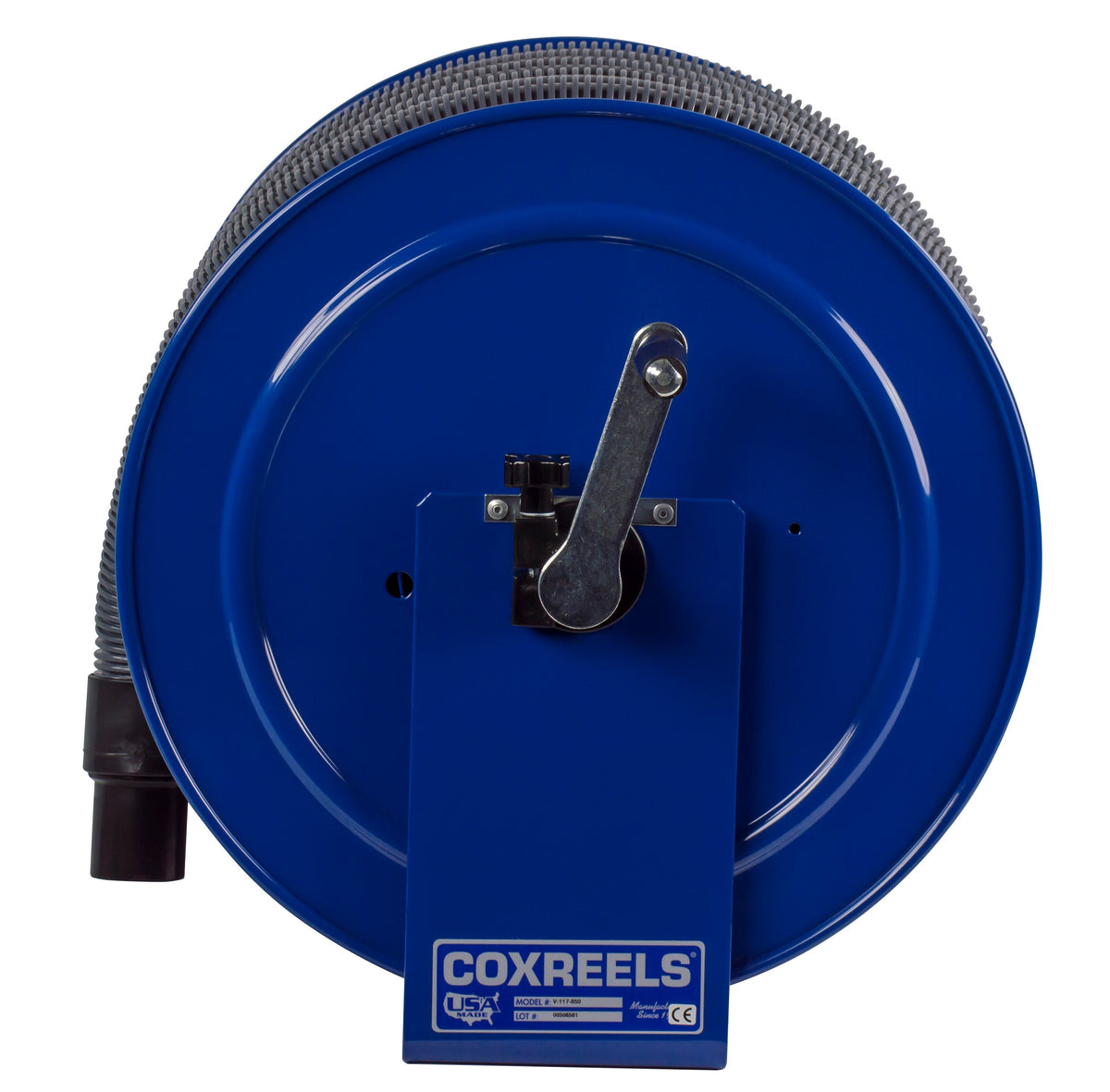

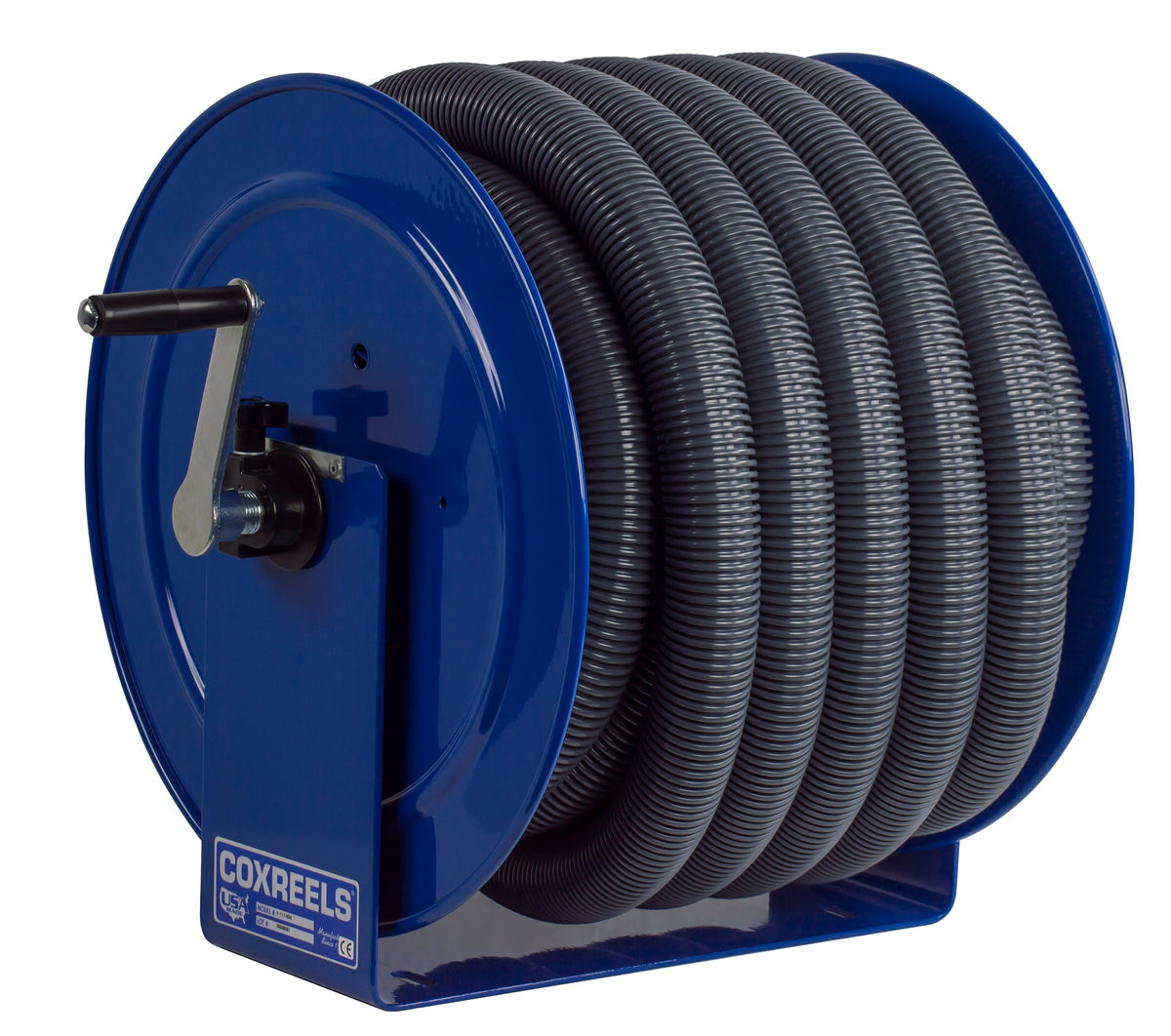

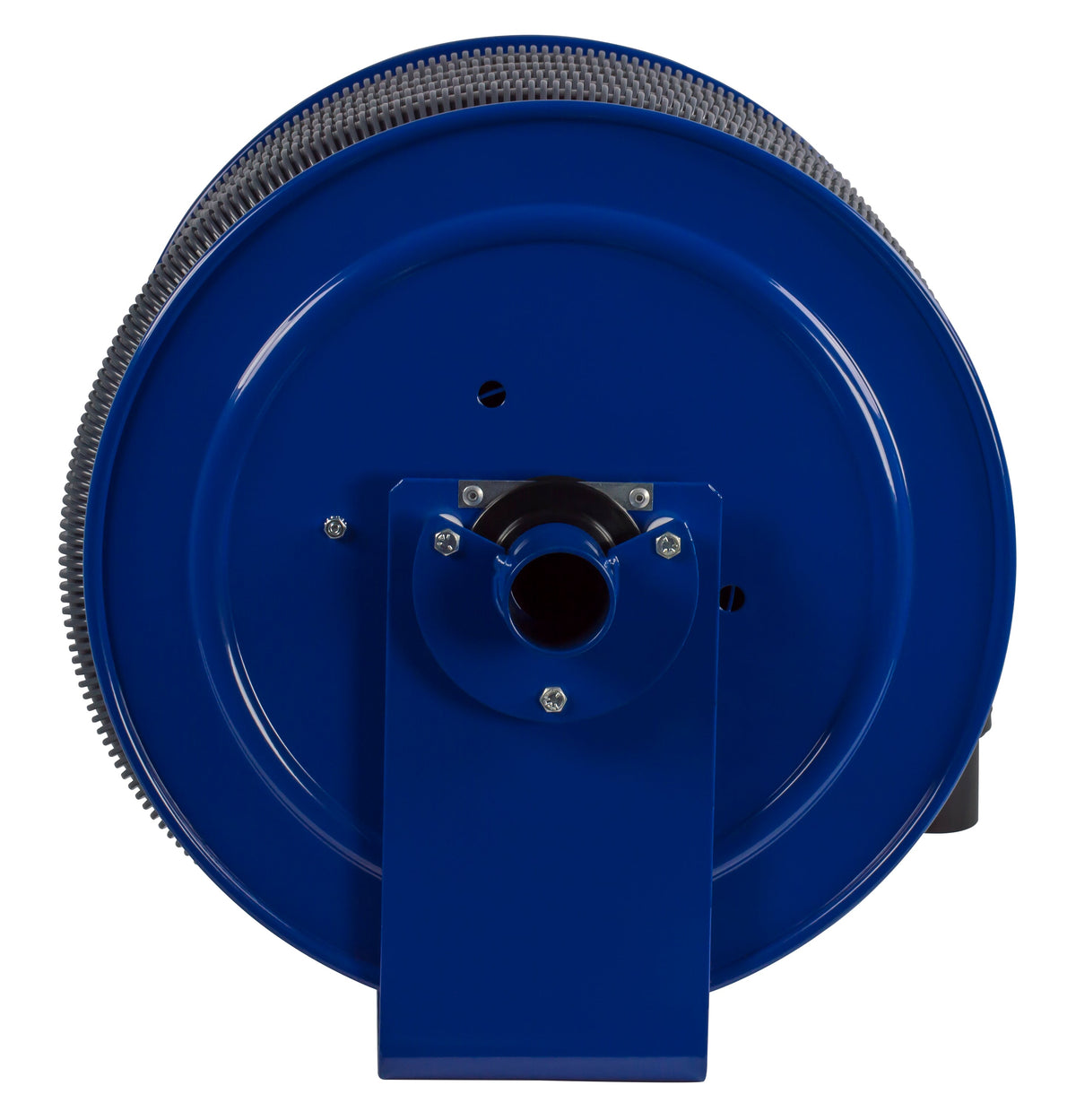

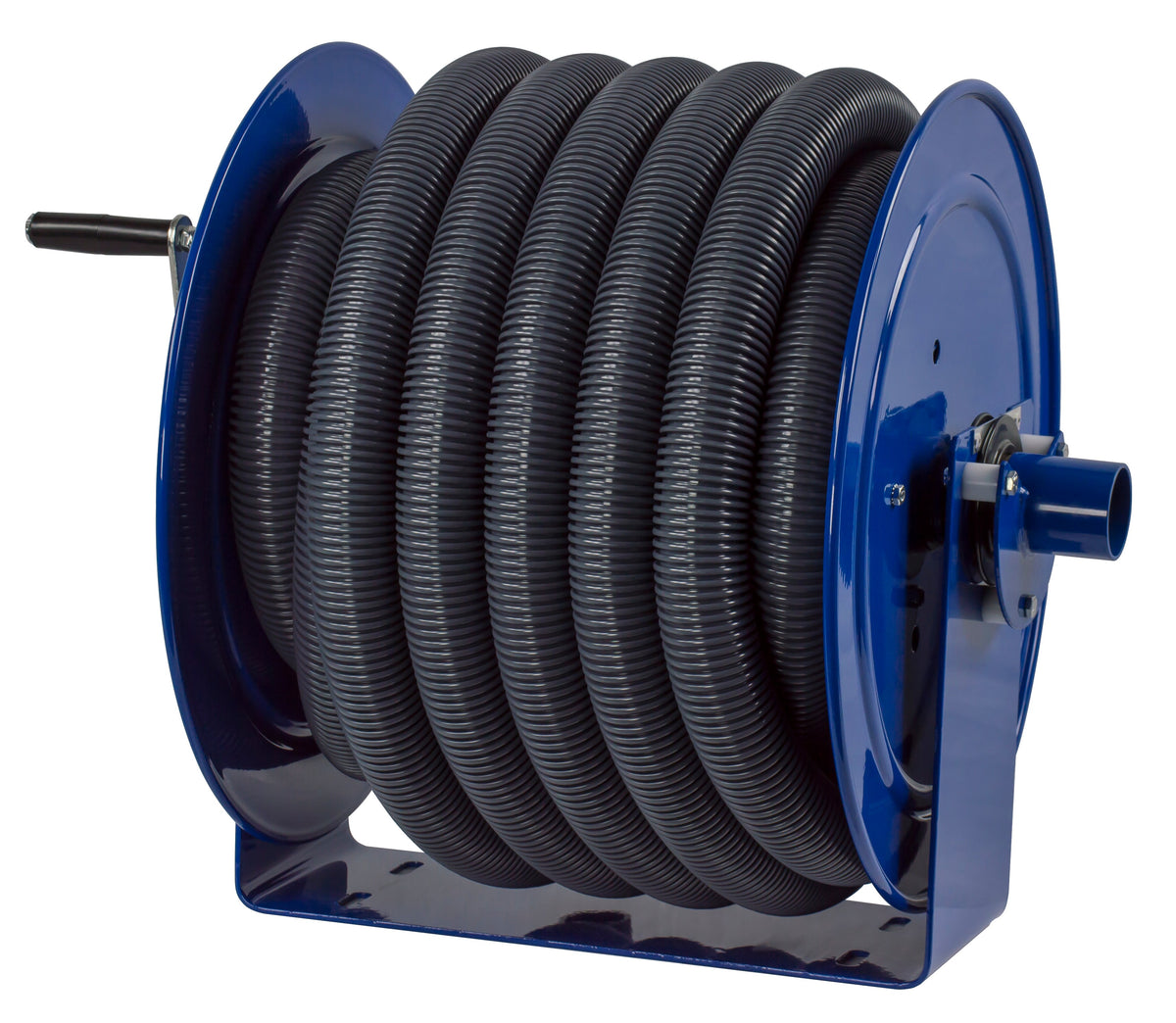

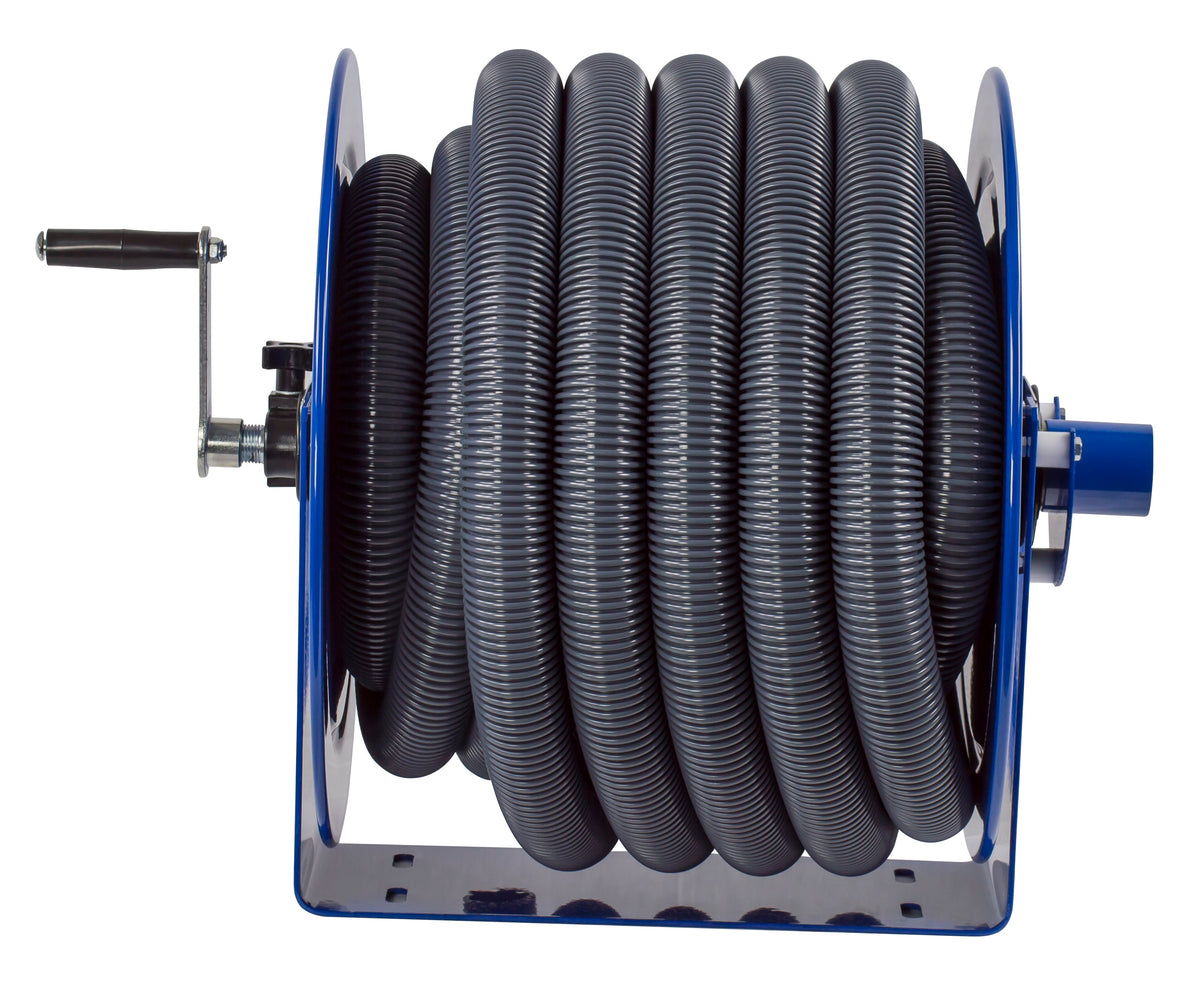

V-112-730 by Coxreels | V100 Series | Hand Crank Vacuum Hose Reel | 1-1/2" or 2" Hose ID, 1-1/2"/2" Female Cuff Inlet | Steel | 30ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels V100 Series Hand Crank Hose Reels
Steel U-frame hand crank hose reels for vacuum. Made in the U.S.A.
1
What is this product used for?
- Vacuum
2
What are the key specifications?
Construction
Steel, U-frame
Inlet
1-1/2"/2" (F) CUFF
Max Temperature
250°F
Bearings
Lubricated EPDM Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
0.44" slotted mounting holes
3
What are the main product features?
- Vacuum Swivel — Designed to fit 1-1/2" & 2" 29HG vacuum hose.
- U Shaped Frame Design — Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Adjustable Tension Brake — Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- Steel Construction — High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Hose | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| V-112-730 | 1-1/2 - 2 CUFF | 30 ft | Less hose | 12.5" | 23.125 × 13 × 12 |
| V-112H-730 | 1-1/2 - 2 CUFF | 30 ft | Included | 12.5" | 23.125 × 13 × 12 |
| V-117-850 | 1-1/2 - 2 CUFF | 50 ft | Less hose | 13.5" | 23.625 × 18 × 17 |
| V-117H-835 | 1-1/2 - 2 CUFF | 35 ft | Included | 13.5" | 23.625 × 18 × 17 |
| V-117H-850 | 1-1/2 - 2 CUFF | 50 ft | Included | 13.5" | 23.625 × 18 × 17 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model | ||
| 9077 | Spring Loaded Lock Pin | |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -CXXX / -GXXX | Gray |
| -KXXX / -WXXX | Gloss Black |
| -NXXX / -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
7
Where can I find product documents?
V100 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
