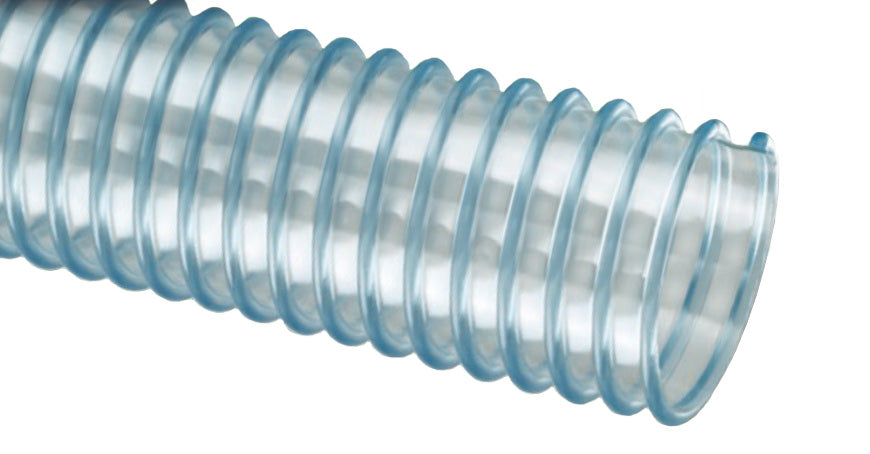

UVF800X50 Tigerflex™ by Kuriyama | Urevac™ Food | UVF™ Series | Food Grade Polyurethane Ducting / Material Handling Hose | 8" ID | 8.59" OD | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Kuriyama UVF Series
Lightweight ester polyurethane (TPU) food grade hose with a rigid PVC helix, built for ducting, dust collection, and standard-duty food and pharmaceutical material handling.
Food Grade
Complies with applicable FDA requirements; USDA accepted
See-the-Flow
Transparent tube for visual confirmation of material flow
Cold-Flex
Stays flexible in sub-zero temperatures
Abrasion Resistant
Outlasts similar rubber or PVC hoses in dry service
1
What is this product used for?
- Ducting, ventilation and fume removal
- Dust collection
- Food grade blower and ducting systems
- Food grade material handling — standard duty
- Pharmaceutical product transfer
2
What are the key specifications?
Ester polyurethane (TPU) tube with rigid PVC helix
-40°F (-40°C) to +150°F (+65°C)*
BSE/TSE · FDA(03) · USDA · RoHS · Phthalate Free
50 ft
1-1/2" to 8" ID
*Actual service temperature range is application dependent.
3
What are the main product features?
- Durable Lightweight Polyurethane Tube — Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
- Food Grade Materials — Hose complies with applicable FDA requirements. Hose approved by USDA(12) for use in meat and poultry plants.
- Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
- "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
- Easy Slide Helix — Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
- Oil Resistant Polyurethane Hose — Resists most animal and petroleum based oils.
- Phthalate Free — Made without phthalate plasticizers.
4
Which sizes are available?
| Part Number (50 ft Length) |
ID | OD | Working Pressure (PSI) | Vacuum Rating (in Hg) | Min. Bend Radius at 68°F |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| at 68°F | at 104°F | at 68°F | at 104°F | |||||
| UVF150X50 | 1-1/2" (38.1 mm) | 1.82" (46.2 mm) | 20 | 7 | 22 | 14 | 1" | 0.23 |
| UVF200X50 | 2" (50.8 mm) | 2.39" (60.7 mm) | 15 | 6 | 21 | 12 | 1.5" | 0.32 |
| UVF250X50 | 2-1/2" (63.5 mm) | 2.89" (73.4 mm) | 10 | 5 | 19 | 10 | 1.5" | 0.39 |
| UVF300X50 | 3" (76.2 mm) | 3.46" (87.9 mm) | 10 | 5 | 18 | 10 | 2.5" | 0.55 |
| UVF400X50 | 4" (101.6 mm) | 4.50" (114.3 mm) | 8 | 4 | 13 | 8 | 3" | 0.77 |
| UVF500X50 | 5" (127.0 mm) | 5.50" (139.7 mm) | 7 | 3 | 10 | 7 | 4" | 0.89 |
| UVF600X50 | 6" (152.4 mm) | 6.54" (166.1 mm) | 6 | 3 | 7 | 5 | 5" | 1.15 |
| UVF800X50 | 8" (203.2 mm) | 8.59" (218.1 mm) | 4 | 2 | 5 | 3 | 7" | 1.75 |
How is this product sold?
Sold in standard 50 ft lengths.
