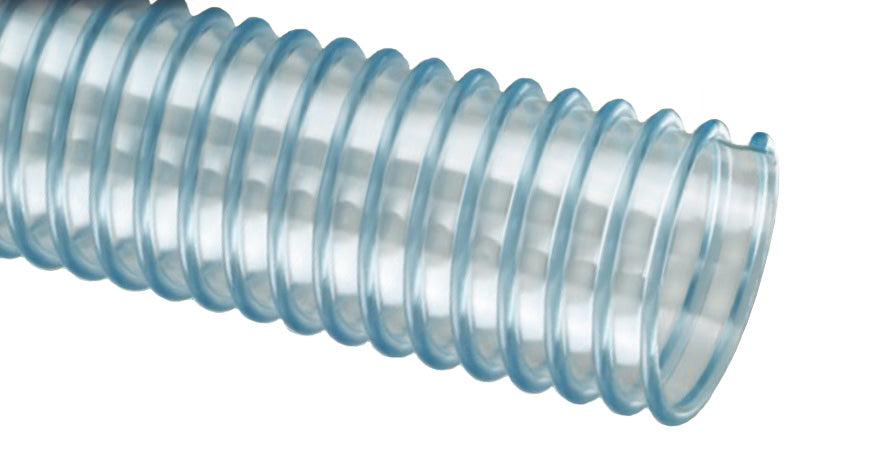

UVF600X50 Tigerflex™ by Kuriyama | Urevac™ Food | UVF™ Series | Food Grade Polyurethane Ducting / Material Handling Hose | 6" ID | 6.54" OD | 6 PSI | 50ft Length
Tigerflex™ by Kuriyama
Urevac™ Food | UVF™ / UVFE™ Series | Food Grade Polyurethane Ducting/Material Handling Hose
Well suited for ducting, ventilation, and fume removal, as well as food-grade blower and material handling systems and pharmaceutical product transfer.
Made in the USA.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,470.68 |
| 8–14 | $1,408.10 |
| 15+ | $1,251.64 |
Product Data:
6
Kuriyama UVF Series
Lightweight ester polyurethane (TPU) food grade hose with a rigid PVC helix, built for ducting, dust collection, and standard-duty food and pharmaceutical material handling.
Food Grade
Complies with applicable FDA requirements; USDA accepted
See-the-Flow
Transparent tube for visual confirmation of material flow
Cold-Flex
Stays flexible in sub-zero temperatures
Abrasion Resistant
Outlasts similar rubber or PVC hoses in dry service
1
What is this product used for?
- Ducting, ventilation and fume removal
- Dust collection
- Food grade blower and ducting systems
- Food grade material handling — standard duty
- Pharmaceutical product transfer
2
What are the key specifications?
Ester polyurethane (TPU) tube with rigid PVC helix
-40°F (-40°C) to +150°F (+65°C)*
BSE/TSE · FDA(03) · USDA · RoHS · Phthalate Free
50 ft
1-1/2" to 8" ID
*Actual service temperature range is application dependent.
3
What are the main product features?
- Durable Lightweight Polyurethane Tube — Designed for dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
- Food Grade Materials — Hose complies with applicable FDA requirements. Hose approved by USDA(12) for use in meat and poultry plants.
- Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
- "Cold-Flex" Materials — Hose remains flexible in sub-zero temperatures.
- Easy Slide Helix — Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
- Oil Resistant Polyurethane Hose — Resists most animal and petroleum based oils.
- Phthalate Free — Made without phthalate plasticizers.
4
Which sizes are available?
| Part Number (50 ft Length) |
ID | OD | Working Pressure (PSI) | Vacuum Rating (in Hg) | Min. Bend Radius at 68°F |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| at 68°F | at 104°F | at 68°F | at 104°F | |||||
| UVF150X50 | 1-1/2" (38.1 mm) | 1.82" (46.2 mm) | 20 | 7 | 22 | 14 | 1" | 0.23 |
| UVF200X50 | 2" (50.8 mm) | 2.39" (60.7 mm) | 15 | 6 | 21 | 12 | 1.5" | 0.32 |
| UVF250X50 | 2-1/2" (63.5 mm) | 2.89" (73.4 mm) | 10 | 5 | 19 | 10 | 1.5" | 0.39 |
| UVF300X50 | 3" (76.2 mm) | 3.46" (87.9 mm) | 10 | 5 | 18 | 10 | 2.5" | 0.55 |
| UVF400X50 | 4" (101.6 mm) | 4.50" (114.3 mm) | 8 | 4 | 13 | 8 | 3" | 0.77 |
| UVF500X50 | 5" (127.0 mm) | 5.50" (139.7 mm) | 7 | 3 | 10 | 7 | 4" | 0.89 |
| UVF600X50 | 6" (152.4 mm) | 6.54" (166.1 mm) | 6 | 3 | 7 | 5 | 5" | 1.15 |
| UVF800X50 | 8" (203.2 mm) | 8.59" (218.1 mm) | 4 | 2 | 5 | 3 | 7" | 1.75 |
How is this product sold?
Sold in standard 50 ft lengths.
