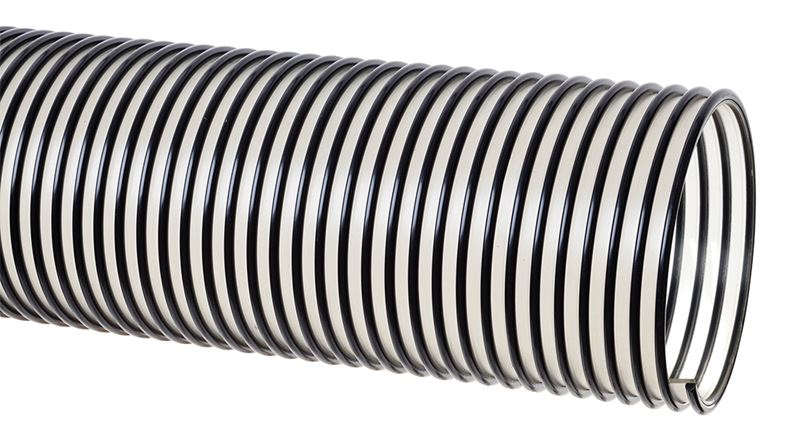

UV2-600X60 Tigerflex by Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 6" ID | Polyurethane | 60ft Length
Kuriyama

UV2-600X60 Tigerflex by Kuriyama | UV2 Series | Urevac Standard Duty Lined Material Handling Hose | 6" ID | Polyurethane | 60ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Agricultural dry fertilizer, Air seeder lines, Dust collection, Material chutes, Material handling - standard duty, Wand hose SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UV2-150X60 1-1/2" 38.1mm 1.87" 47.5mm 25 PSI 10 PSI 22 in. Hg 16 in. Hg 1.5" 60ft 0.29 lbs
UV2-200X60 2" 50.8mm 2.47" 62.7mm 25 PSI 10 PSI 21 in. Hg 14 in. Hg 2.5" 60ft 0.40 lbs
UV2-250X60 2-1/2" 63.5mm 2.96" 75.2mm 20 PSI 8 PSI 19 in. Hg 12 in. Hg 3" 60ft 0.53 lbs
UV2-300X60 3" 76.2mm 3.54" 89.8mm 20 PSI 8 PSI 18 in. Hg 11 in. Hg 4" 60ft 0.67 lbs
UV2-400X60 4" 101.6mm 4.57" 116.1mm 15 PSI 7 PSI 13 in. Hg 9 in. Hg 6" 60ft 1.02 lbs
UV2-500X60 5" 127.0mm 5.58" 141.7mm 15 PSI 7 PSI 10 in. Hg 7 in. Hg 8" 60ft 1.22 lbs
UV2-600X60 6" 152.4mm 6.62" 168.1mm 10 PSI 5 PSI 7 in. Hg 5 in. Hg 10" 60ft 1.68 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
