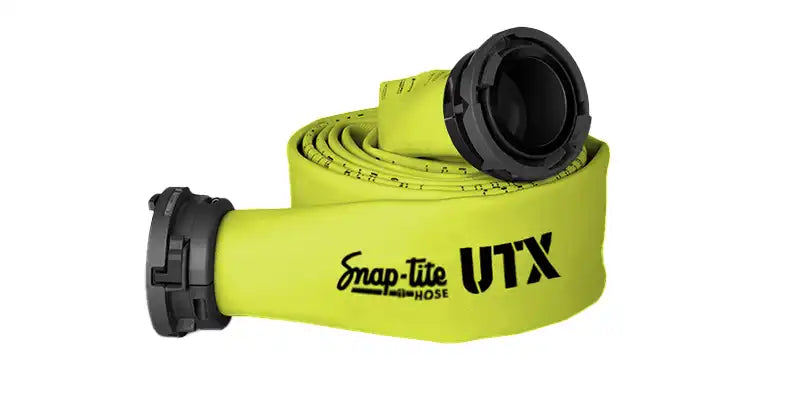

UTX40x25G40S by Snap-Tite | UTX Series | Polyurethane Covered Fire Hose Assembly with Polyester Reinforcement | 4" Hose I.D. with 4" Storzs | 200 PSI | Green | 25ft Length

UTX40x25G40S by Snap-Tite | UTX Series | Polyurethane Covered Fire Hose Assembly with Polyester Reinforcement | 4" Hose I.D. with 4" Storzs | 200 PSI | Green | 25ft Length

Sale price$680.93

Snap-Tite Hose
UTX™ - PREMIUM HOSE. OUTSTANDING VALUE

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $640.07
15–29 $578.79
30+ $510.70
Discounts applied in cart/checkout.

Product Data:

Series:
  • UTX Series
Color(s):
  • Green
Internal Diameter:
  • 4in
Model: UTX™ LDH
Basic Construction: Polyurethane thru-the-weave with polyester inner reinforcement
Application: Supply
Colors: Yellow, Red, Blaze Orange, Hi-Viz Green
Temperature Range: -50° F - 160° F
Description:
UTX™ is a tough lightweight extruded thru-the-weave hose. Its polyurethane material provides greater resistance to punctures and abrasion, while the thru-the-weave liner guarantees a lifetime warranty against delamination. UTX™ is compact and durable while providing higher resistance to oils, chemicals, and ozone.
Features:
  • Typical rubber extruded hose can vary in thickness, becoming bulky and heavy. UTX™ incorporates a circular woven polyester jacket that is completely encapsulated by an extruded thru-the-weave polyurethane cover and liner that provides abrasion and puncture resistance while remaining light and service worthy.
  • UTX™ weighs 20% less than conventional rubber supply hose.
  • Extruded thru-the-weave polyurethane construction and ultra-smooth liner minimize friction loss.
  • Engineered to deliver more flow and more efficient packability.
  • Remains flexible to -50°F (-46°C).
  • Resists ozone, oxidation, and most chemical/petroleum products.
  • Made in USA to ISO-9001:2015 certified quality management system.
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" UTX40x25Y40S UTX40x50Y40S UTX40x100Y40S Standard 200 psi 400 psi 600 psi 0.50 100,000+
5" UTX50x25Y50S UTX50x50Y50S UTX50x100Y50S Standard 200 psi 400 psi 600 psi 0.73 100,000+
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" UTX40x25R40S UTX40x50R40S UTX40x100R40S Standard 200 psi 400 psi 600 psi 0.50 100,000+
5" UTX50x25R50S UTX50x50R50S UTX50x100R50S Standard 200 psi 400 psi 600 psi 0.73 100,000+
Blaze Orange
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" UTX40x25O40S UTX40x50O40S UTX40x100O40S Standard 200 psi 400 psi 600 psi 0.50 100,000+
5" UTX50x25O50S UTX50x50O50S UTX50x100O50S Standard 200 psi 400 psi 600 psi 0.73 100,000+
Hi-Viz Green
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" UTX40x25G40S UTX40x50G40S UTX40x100G40S Standard 200 psi 400 psi 600 psi 0.50 100,000+
5" UTX50x25G50S UTX50x50G50S UTX50x100G50S Standard 200 psi 400 psi 600 psi 0.73 100,000+

*1-year warranty.

*Potable water approved: Yes

*Quality Management System Certification: ISO 9001:2015 Registration #11-R1045
