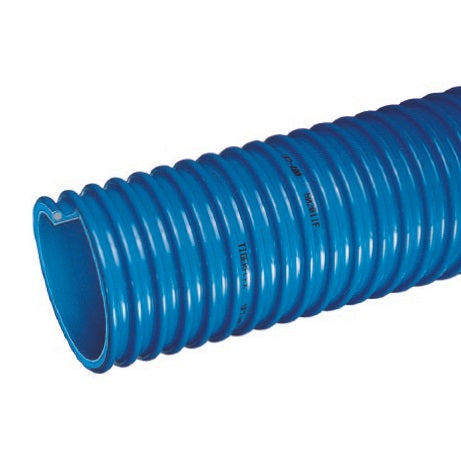

UF2-500X50 Tigerflex by Kuriyama | UF2 Series | Ureflex Extra Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 50ft Length
Kuriyama

UF2-500X50 Tigerflex by Kuriyama | UF2 Series | Ureflex Extra Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 50ft Length

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: Fly ash collection, Industrial vacuum equipment, Material chutes, Material handling - heavy duty abrasive, Milling machine scrap recovery, Shot blast recovery, Rock, gravel, sand and crushed concrete vacuuming, Shot blast recovery SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Extra Thick Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Static Dissipative Cover - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
UF2-150X100 1-1/2" 38.1mm 1.88" 47.8mm 50 PSI 25 PSI Full 28 in. Hg 3" 100ft 0.46 lbs
UF2-200X100 2" 50.8mm 2.44" 62.0mm 40 PSI 20 PSI Full 28 in. Hg 4" 100ft 0.65 lbs
UF2-250X100 2-1/2" 63.5mm 3.12" 79.2mm 40 PSI 20 PSI Full 28 in. Hg 5" 100ft 0.89 lbs
UF2-300X100 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28 in. Hg 6" 100ft 1.23 lbs
UF2-300X50 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28 in. Hg 6" 50ft 1.23 lbs
UF2-400X100 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28 in. Hg 10" 100ft 2.02 lbs
UF2-400X50 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28 in. Hg 10" 50ft 2.02 lbs
UF2-500X100 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 15" 100ft 2.50 lbs
UF2-500X50 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28 in. Hg 25 in. Hg 15" 50ft 2.50 lbs UF2-600X100 6" 152.4mm 6.87" 174.5mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 100ft 3.84 lbs
UF2-600X50 6" 152.4mm 6.87" 174.5mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 18" 50ft 3.84 lbs
UF2-800X50 8" 203.2mm 9.18" 233.2mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 22" 50ft 6.52 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
