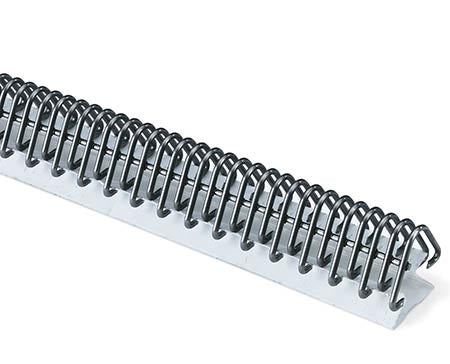

U3-1 / U3-1C6 - Flexco Clipper Coated Steel 6" Unibar Fasteners/Hooks - Without Pins - 01137 - .125" to .156" (1/8" to 5/32") Belt Thickness (Made to Order)

U3-1 / U3-1C6 by Flexco | #01137 | Clipper | 6" Unibar Fasteners/Hooks | Without Pins | .125" to .156" (1/8" to 5/32") Belt Thickness | Coated Steel

Sale price$51.69
FREE SHIPPING DOMESTICALLY!
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Since its inception, the Clipper® Wire Hook System has earned a reputation for continued innovation and proven performance. Clipper wire hooks have been designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths and styles, such as Unibar® and carded. All are readily available to meet your individual application needs.

The double-staggered grip pattern gives wire hooks exceptional holding power without degrading the integrity of the belt carcass. Todays splices also have a very low profile, making them increasingly more compatible with conveyor components and compliant with the need for reduced operating noise.

Each Box Contains:
  • 6" strips - 24 strips per box (without Pins)
Applications:
  • Package and Parts Handling, General Manufacturing, Commercial Laundry, Food Processing, Agriculture, Filter Media
Features:
  • Unibar® fasteners are formed by welding each Clipper® hook to a common bar.
  • Welded bar creates a stable strip of fasteners to eliminate damage during handling.
  • Patented Safety Strip covers the hook points to protect fingertips, yet is easily removed prior to lacing.
  • Hook legs are held parallel to simplify "meshing" of belt ends and the insertion of connecting pins.
  • The risk of a single hook disengaging is significantly reduced, particularly important in the food industry.
  • The welded bar creates a flat, finished splice so belt "wave" is eliminated.
  • Under abusive applications, Unibar spreads shock loads to protect individual hooks.
  • Unibar fasteners can be easily cut to the appropriate length, or ordered in special lengths up to 60" (1500 mm). They are not recommended for bias splices, troughed belts where common bar breakage is a concern, and where special metals are required.


Part Number Hook Size Belt Thickness Wire Diameter
U3-1 / U3-1C6 U3-1 .125" to .156" (1/8" to 5/32") .054"
U3-2 / U3-2C6 U3-2 .125" to .156" (1/8" to 5/32") .054"
U3 / U3C6 U3 .187" to .219" (3/16" to 7/32") .054"

Additional Product Data:

Material(s):
  • Coated Steel
Applicable Belt Thickness:
  • 1/8in to 5/32in

Flexco

From its inception, Flexco has focused on just one thing, maximising belt conveyor productivity. Whether you are a small farm in the Midwestern United States, or a large mine in eastern Europe, or a global parcel handling operation with facilities around the world, we are focused on becoming your number one resource for products and services that maximise your belt conveyor uptime, productivity, and safety.
