U2 / U2S12 - Flexco Clipper 430 Stainless 12" Unibar Fasteners/Hooks - Without Pins - 18400 - .156" to 187" (5/32" to 3/16") Belt Thickness
Flexco

U2 / U2S12 by Flexco | #18400 | Clipper | 12" Unibar Fasteners/Hooks | Without Pins | .156" to 187" (5/32" to 3/16") Belt Thickness | 430 Stainless

Sale price$88.54

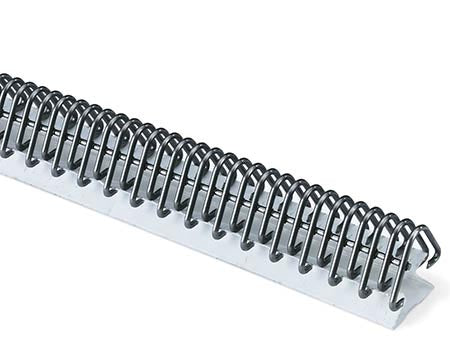

Flexco Clipper® Wire Hook System - Unibar 12" Fasteners / Hooks - 430 Stainless Steel - without Pins
FREE SHIPPING DOMESTICALLY!
In stock

Product Data:

Material(s):
  • 430 Stainless Steel
Applicable Belt Thickness:
  • 5/32in to 3/16in
Since its inception, the Clipper® Wire Hook System has earned a reputation for continued innovation and proven performance. Clipper wire hooks have been designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths and styles, such as Unibar® and carded. All are readily available to meet your individual application needs.

The double-staggered grip pattern gives wire hooks exceptional holding power without degrading the integrity of the belt carcass. Todays splices also have a very low profile, making them increasingly more compatible with conveyor components and compliant with the need for reduced operating noise.

Each Box Contains:
  • 12" strips - 12 strips per box (without Pins)
Applications:
  • Package and Parts Handling, General Manufacturing, Commercial Laundry, Food Processing, Agriculture, Filter Media
Features:
  • Unibar® fasteners are formed by welding each Clipper® hook to a common bar.
  • Welded bar creates a stable strip of fasteners to eliminate damage during handling.
  • Patented Safety Strip covers the hook points to protect fingertips, yet is easily removed prior to lacing.
  • Hook legs are held parallel to simplify "meshing" of belt ends and the insertion of connecting pins.
  • The risk of a single hook disengaging is significantly reduced, particularly important in the food industry.
  • The welded bar creates a flat, finished splice so belt "wave" is eliminated.
  • Under abusive applications, Unibar spreads shock loads to protect individual hooks.
  • Unibar fasteners can be easily cut to the appropriate length, or ordered in special lengths up to 60" (1500 mm). They are not recommended for bias splices, troughed belts where common bar breakage is a concern, and where special metals are required.


Part Number Hook Size Belt Thickness Wire Diameter
UX-1SP / UX1SPS12 UX-1SP .063" to .125" (1/16" to 1/8") .040"
UX-1 / UX1S12 UX-1 .125" to .156" (1/8" to 5/32") .040"
UX-1LLSP / UX1LLSPS12 UX-1LLSP .125" to .156" (1/8" to 5/32") .040"
UX-1LL / UX1LLS12 UX-1LL .125" to .156" (1/8" to 5/32") .040"
U2SP / U2SPS12 U2SP .156" to 187" (5/32" to 3/16") .054"
U2 / U2S12 U2 .156" to 187" (5/32" to 3/16") .054"
U3 / U3S12 U3 .187" to .219" (3/16" to 7/32") .054"
U3-1 / U3-1S12 U3-1 .125" to .156" (1/8" to 5/32") .054"
U3-2 / U3-2S12 U3-2 .125" to .156" (1/8" to 5/32") .054"
U4 / U4S12 U4 .219" to .25" (7/32" to 1/4") .054"
U5 / U5S12 U5 .281" to .313" (9/32" to 5/16") .054"
U6 / U6S12 U6 .313" to .343" (5/16" to 11/32") .054"
U7 / U7S12 U7 .343" to .39" (11/32" to 25/64") .054"
