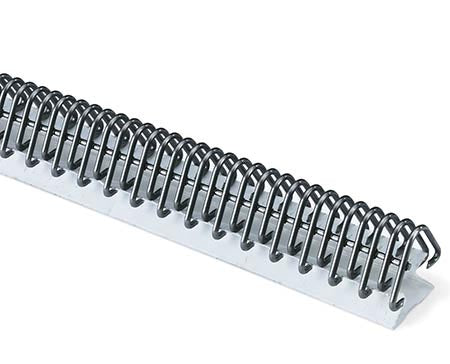

U2 / U2C12NP - Flexco Clipper Coated Steel 12" Unibar Fasteners/Hooks - With Pins - 18540 - .156" to 187" (5/32" to 3/16") Belt Thickness

U2 / U2C12NP by Flexco | #18540 | Clipper | 12" Unibar Fasteners/Hooks | With Pins | .156" to .187" (5/32" to 3/16") Belt Thickness | Coated Steel

Sale price$63.12
FREE SHIPPING DOMESTICALLY!
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Since its inception, the Clipper® Wire Hook System has earned a reputation for continued innovation and proven performance. Clipper wire hooks have been designed with a variety of different wire diameters, leg and point lengths, metals, strip lengths and styles, such as Unibar® and carded. All are readily available to meet your individual application needs.

The double-staggered grip pattern gives wire hooks exceptional holding power without degrading the integrity of the belt carcass. Todays splices also have a very low profile, making them increasingly more compatible with conveyor components and compliant with the need for reduced operating noise.

Each Box Contains:
  • 12" strips - 12 strips per box (with Pins)
Applications:
  • Package and Parts Handling, General Manufacturing, Commercial Laundry, Food Processing, Agriculture, Filter Media
Features:
  • Unibar® fasteners are formed by welding each Clipper® hook to a common bar.
  • Welded bar creates a stable strip of fasteners to eliminate damage during handling.
  • Patented Safety Strip covers the hook points to protect fingertips, yet is easily removed prior to lacing.
  • Hook legs are held parallel to simplify "meshing" of belt ends and the insertion of connecting pins.
  • The risk of a single hook disengaging is significantly reduced, particularly important in the food industry.
  • The welded bar creates a flat, finished splice so belt "wave" is eliminated.
  • Under abusive applications, Unibar spreads shock loads to protect individual hooks.
  • Unibar fasteners can be easily cut to the appropriate length, or ordered in special lengths up to 60" (1500 mm). They are not recommended for bias splices, troughed belts where common bar breakage is a concern, and where special metals are required.


Part Number Hook Size Belt Thickness Wire Diameter
U2 / U2C12W U2 .156" to 187" (5/32" to 3/16") .054"
U3 / U3C12W U3 .187" to .219" (3/16" to 7/32") .054"
U4 / U4C12W U4 .219" to .25" (7/32" to 1/4") .054"
U5 / U5C12W U5 .281" to .313" (9/32" to 5/16") .054"
U6 / U6C12W U6 .313" to .343" (5/16" to 11/32") .054"

Additional Product Data:

Material(s):
  • Coated Steel
Applicable Belt Thickness:
  • 5/32in to 3/16in
