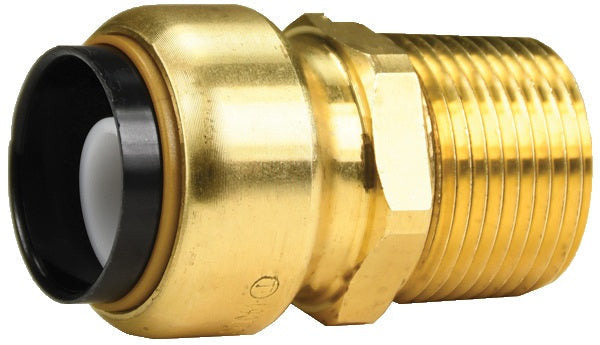

U140 by Dixon Valve | Tectite™ by Apollo® | Push to Connect Fitting | Male Connector | 1" Male NPT x 1" Tube Size | Forged Brass

U140 by Dixon Valve | Tectite™ by Apollo® | Push to Connect Fitting | Male Connector | 1" Male NPT x 1" Tube Size | Forged Brass

Sale price$32.92

Dixon Valve
Tectite™ by Apollo® Push to Connect Fitting | Male Connector

For water, dry, clean air, or 100% glycol solutions only.

Connects copper, CPVC, and PEX pipe in any combination.

Approved for use underground and behind walls without access panels.

Comparable to Sharkbite®
Buy More, Save More!
Quantity Price Each
10–39 $30.94
40–79 $27.98
80+ $24.69
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Apollo
Series:
  • Tectite
Shape:

Straight
Compatibility and Interchange:
  • Comparable to Sharkbite® Fittings.
Features:
  • No soldering, clamps, unions, or glue needed.
  • Integral tube liner for PEX installations.
  • Fittings can be rotated after assembly for easier installation in tight spaces.
  • Easy to disconnect if needed.
  • All Tectite by Apollo fittings are lead-free.
Material:
  • Forged Brass
Approvals:
  • Design certified and listed to ASSE 1061/NSF 61.
  • Listed by IAPMO.
  • Meets UPC, IPC, and cUPC requirements.
Specifications:
  • Pressure rating: 200 PSI at 200°F (93°C)
  • Temperature Range: 32°F to 250°F (0°C to 121°C)
Part Number Tube O.D. Male NPT Disconnect Clip
(used to disconnect fitting from pipe)
U120 1/2" 1/2" U710
U134 3/4" 3/4" U712
U140 1" 1" U714

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
